Grundfos CR 5-13 A-A-A-E-HQQE Vertical Multistage Centrifugal Pump – 96516996 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516996
Original price
$1,867.25
-
Original price
$1,867.25
Original price
$1,867.25
$1,867.25
-
$1,867.25
Current price
$1,867.25
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 5-13 A-A-A-E-HQQE is a vertical, non-self-priming, multistage in-line centrifugal pump designed for pipe system installation or foundation mounting. It features a cast iron pump head and base with all other wetted parts in stainless steel (EN 1.4301), providing high durability and corrosion resistance for diverse water and industrial applications.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and cooling
- Industrial heating and cooling
- Industrial water supply and wastewater
- Industrial process water treatment
- Process liquids transfer
- Machining, wash and clean systems
- Desalination and reverse osmosis water treatment
- Drinking water treatment and water distribution
- Surface water intake and groundwater transfer
- Irrigation, pivot, rotor and spray irrigation
- Community water supply
- Solar boosting and water supply solutions
- Agriculture and livestock watering with solar solutions
- Controls and digital groundwater and water management
Key Specifications
| Product Number | 96516996 |
| Pump Type | Vertical multistage centrifugal, in-line |
| Number of Stages | 13 |

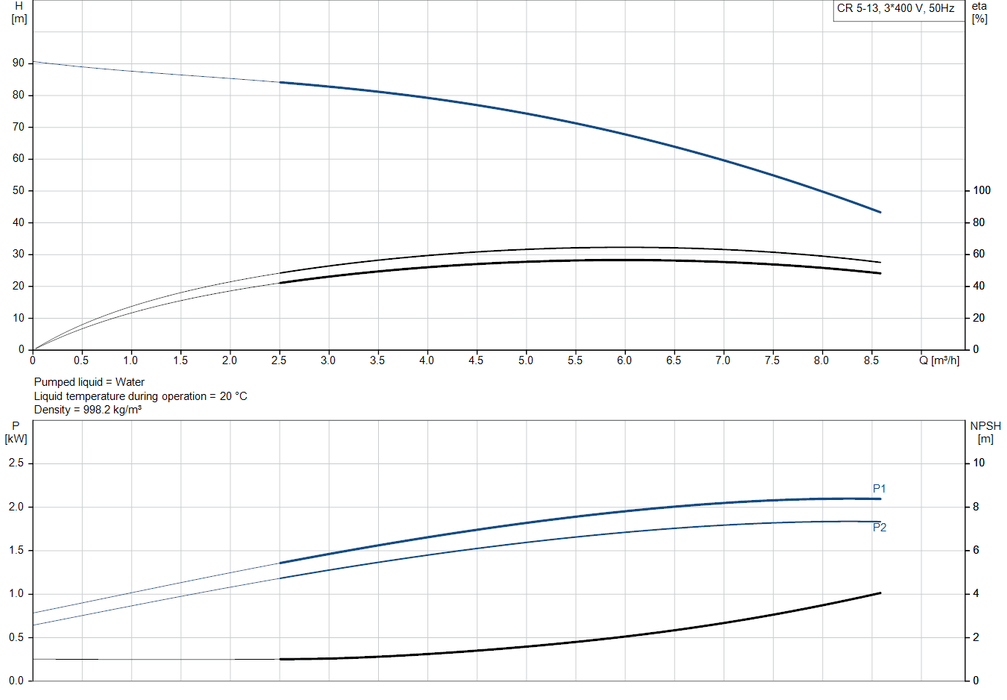

| Rated Flow | 5.8 m³/h |
| Rated Head | 66.1 m |
| Maximum Head | 88.4 m |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 16 bar |
| Shaft Seal | HQQE (Single) |
| Impeller Material | Stainless steel (EN 1.4301 / AISI 304) |
| Pump Head & Base Material | Cast iron (EN-GJL-200) |
| Connection Type | Oval / Rp |
| Inlet / Outlet Size | 1 1/4 inch |
| Pressure Rating | PN 16 |

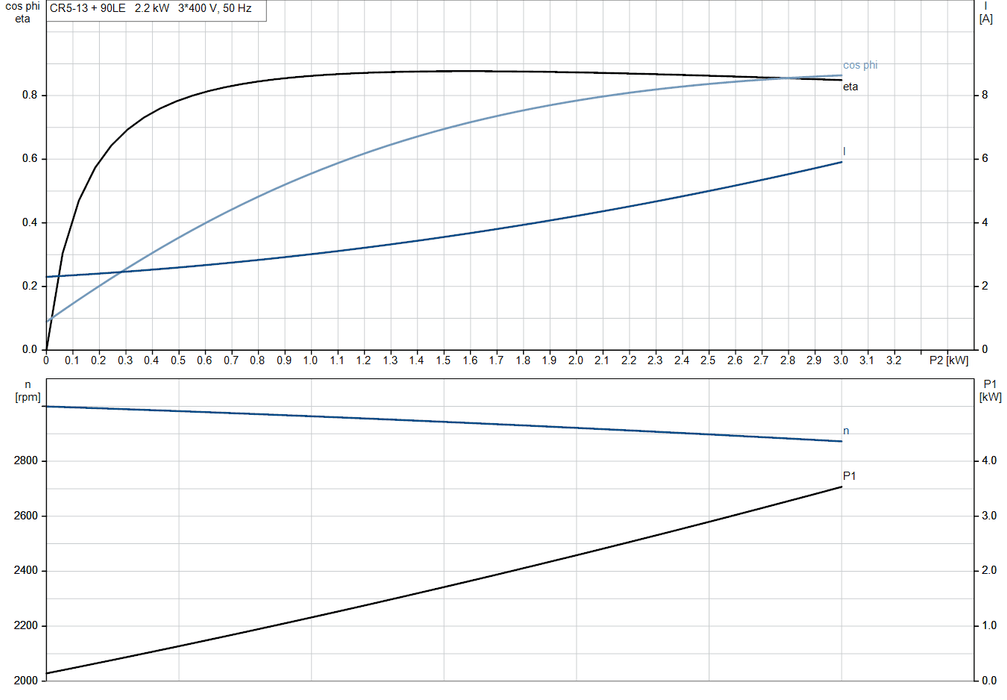

| Motor Power (P2) | 2.2 kW |
| Power Supply | 3-phase, 50 Hz |

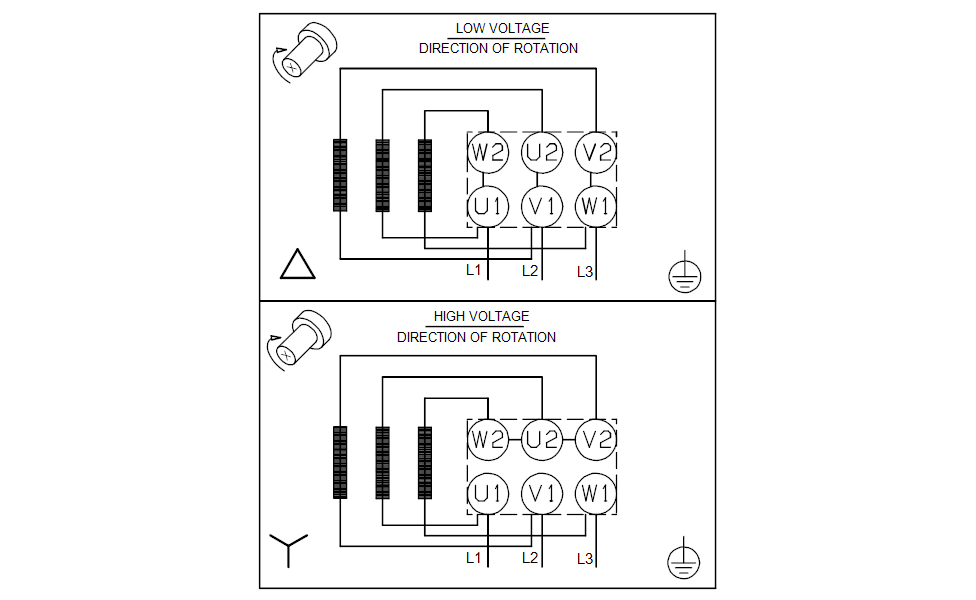

| Rated Voltage | 3 × 220–240D / 380–415Y V |
| Motor Efficiency Class | IE3 |
| Approvals | CE, EAC, UKCA, SEPRO, RCM |
| Drinking Water Approvals | WRAS, ACS |
| Net Weight | 39.5 kg |
| Country of Origin | Taiwan (TW) |
| Price | AUD 2,716 |
Documentation & Downloads
| Product Data Sheet – CR 5-13 A-A-A-E-HQQE | Download PDF |
