Grundfos CR 5-11 A-A-A-E-HQQE Vertical Multistage Centrifugal Pump – 96516994 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516994
Original price
$1,762.75
-
Original price
$1,762.75
Original price
$1,762.75
$1,762.75
-
$1,762.75
Current price
$1,762.75
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 5-11 A-A-A-E-HQQE is a vertical, non-self-priming, multistage in-line centrifugal pump designed for pipe system installation or foundation mounting. Its pump head and base are cast iron, and all wetted parts are stainless steel (EN 1.4301), providing durability and corrosion resistance for demanding water and industrial applications.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and cooling
- Industrial heating and cooling
- Industrial water supply and wastewater
- Industrial process water treatment
- Process liquids transfer
- Machining, wash and clean systems
- Desalination and reverse osmosis water treatment
- Drinking water treatment and water distribution
- Surface water intake and groundwater transfer
- Irrigation, pivot, rotor and spray irrigation
- Community water supply
- Solar boosting and water supply solutions
- Agriculture and livestock watering with solar solutions
- Controls and digital groundwater and water management
Key Specifications
| Product Number | 96516994 |
| Pump Type | Vertical multistage centrifugal, in-line |
| Number of Stages | 11 |
| Rated Flow | 5.8 m³/h |
| Rated Head | 56.5 m |
| Maximum Head | 76 m |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 16 bar |
| Shaft Seal | HQQE (Single) |
| Impeller Material | Stainless steel (EN 1.4301 / AISI 304) |
| Pump Head & Base Material | Cast iron (EN-GJL-200) |
| Connection Type | Oval / Rp |
| Inlet / Outlet Size | 1 1/4 inch |
| Pressure Rating | PN 16 |
| Motor Power (P2) | 2.2 kW |
| Power Supply | 3-phase, 50 Hz |

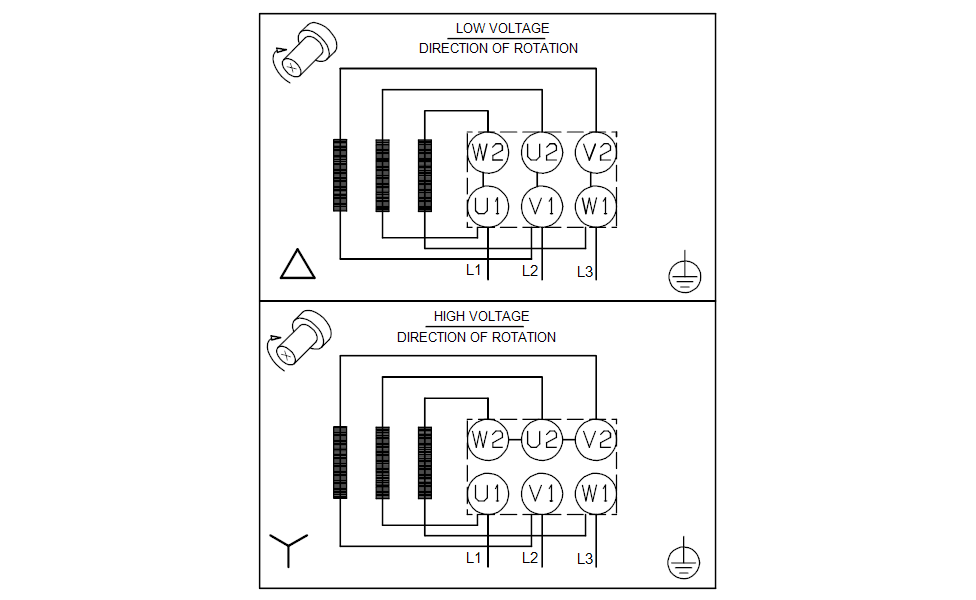

| Rated Voltage | 3 × 220–240D / 380–415Y V |
| Motor Efficiency Class | IE3 |
| Approvals | CE, EAC, UKCA, SEPRO, RCM |
| Drinking Water Approvals | WRAS, ACS |
| Net Weight | 38.4 kg |
| Country of Origin | Taiwan (TW) |
Documentation & Downloads
| Product Data Sheet – CR 5-11 A-A-A-E-HQQE | Download PDF |
