Grundfos CR 32-2-2 A-F-A-E-HQQE Vertical Multistage Pump – 96121952 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96121952
Original price
$3,203.06
-
Original price
$3,203.06
Original price
$3,203.06
$3,203.06
-
$3,203.06
Current price
$3,203.06
📢 For orders over $100, FREE Shipping Australia-wide

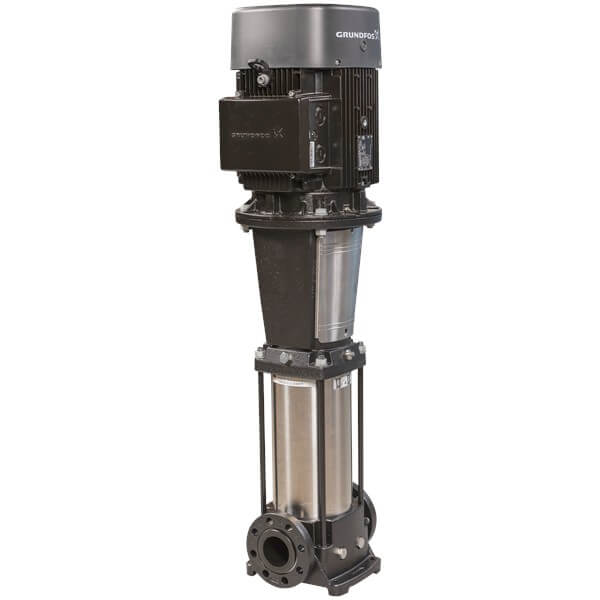

Grundfos CR 32-2-2 A-F-A-E-HQQE (Product No. 96121952) is a vertical, non-self-priming, multistage in-line centrifugal pump engineered for installation in pipe systems and foundation mounting. The pump features a cast iron head and base with stainless steel (EN 1.4301 / AISI 304) wetted components for corrosion resistance and long service life. Equipped with a single HQQE shaft seal (EN 12756) and a high-efficiency IE3 IEC motor, the unit connects via DIN flanges (DN 65, PN 40) and is suitable for demanding commercial and industrial water applications.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating & cooling
- Industrial heating & cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Process liquid transfer
- Machining
- Wash and clean systems
- Desalination
- Reverse osmosis – water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation (pivot, rotor & spray)
- Groundwater transfer
- Community water supply
- Solar boosting and water supply solutions
- Solar water treatment, fertigation & dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
- Digital groundwater and water management systems
Key Specifications
| Product Number | 96121952 |
| EAN | 5700396679266 |
| Rated Flow | 30 m³/h |
| Rated Head | 22.6 m |
| Maximum Head | 31.6 m |
| Pump Speed (Base Data) | 2902 rpm |
| Orientation | Vertical |
| Stages / Impellers | 2 / 2 |
| Shaft Seal | HQQE (Single) |
| Maximum Operating Pressure | 16 bar |
| Liquid Temperature Range | -30 to 120 °C |
| Connection Type | DIN Flange |
| Inlet / Outlet | DN 65 / DN 65 |
| Pressure Rating | PN 40 |
| Motor Type | 100LC |
| Rated Power (P2) | 3 kW |
| Voltage | 3 x 220-240D / 380-415Y V |
| Rated Current | 11.0 / 6.30 A |
| Frequency | 50 Hz |
| Rated Speed | 2900–2920 rpm |
| Efficiency Class | IE3 |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Motor Protection | PTC |
| Maximum Ambient Temperature | 60 °C |
| Minimum Efficiency Index (MEI) | ≥ 0.70 |
| Net Weight | 74.7 kg |
| Gross Weight | 97.6 kg |
Documentation & Downloads
| Product Datasheet (PDF) | Download |
