Grundfos CR 3-7 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 92901536 (1 x 220-230V)
📢 For orders over $100, FREE Shipping Australia-wide

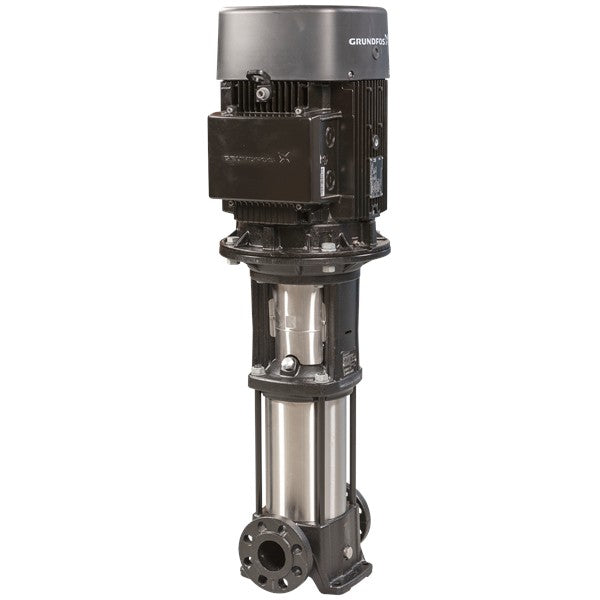

The Grundfos CR 3-7 A-FGJ-A-E-HQQE is a vertical, multistage centrifugal
inline pump engineered for reliable performance in commercial, industrial,
agricultural, and solar water systems. Designed with suction and discharge
ports on the same level, this inline configuration allows easy installation in
space-saving pipe layouts.
The pump head and base are manufactured
from robust cast iron, while all other wetted components are made of
corrosion-resistant stainless steel (EN 1.4301 / AISI 304). A high-quality
cartridge shaft seal (HQQE) ensures operational safety, high reliability, and
simplified servicing. Power transmission is achieved through a rigid split
coupling, and the unit is equipped with a single-phase, fan-cooled
asynchronous IEC motor. Combined DIN / ANSI / JIS flange connections provide
excellent flexibility across global standards. With drinking water approvals
and a wide temperature and pressure range, this pump is ideal for pressure
boosting, water treatment, irrigation, and solar water supply applications.
Key Features & Benefits
- Vertical multistage centrifugal inline pump design
- Cast iron pump head and base with stainless steel wetted parts
- Reliable cartridge shaft seal (HQQE) for easy maintenance
- Combined DIN / ANSI / JIS flange connections
- Approved for drinking water applications (WRAS & ACS)
- High-efficiency IE2 single-phase motor
- Wide liquid temperature range from -20°C to 120°C
- Suitable for commercial, industrial, agricultural, and solar systems
Key Specifications
| Product Code | CR 3-7 A-FGJ-A-E-HQQE |
| Product Number | 92901536 |
| Rated Flow | 3 m³/h |
| Rated Head | 30.6 m |
| Maximum Head | 44.8 m |
| Number of Stages | 7 |
| Motor Power (P2) | 0.55 kW |
| Power Supply | 1 × 220–230 V, 50 Hz |
| Maximum Operating Pressure | 25 bar |
| Liquid Temperature Range | -20 to 120 °C |
| Connection Size | DN 25/32 (1 1/4") |
| Shaft Seal | HQQE (Single) |
| Net Weight | 27.9 kg |
