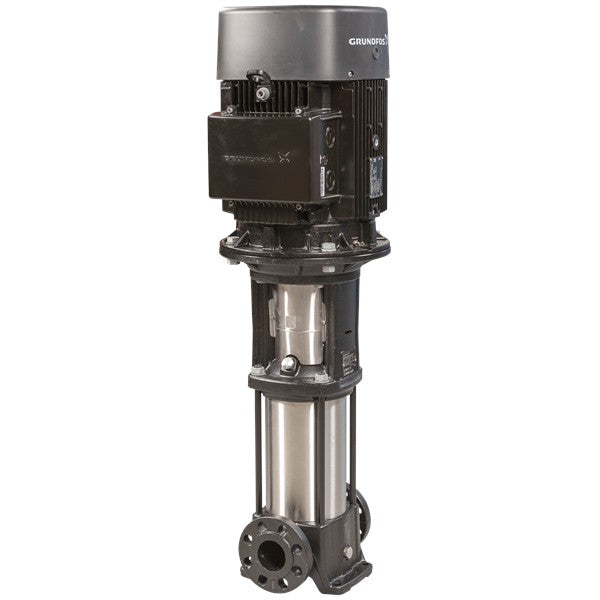

Grundfos CR 3-6 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 92901535 (1 x 220-230V)
by Grundfos
SKU 92901535
Original price
$1,204.50
-
Original price
$1,204.50
Original price
$1,204.50
$1,204.50
-
$1,204.50
Current price
$1,204.50
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 3-6 A-FGJ-A-E-HQQE is a vertical, multistage centrifugal inline pump designed for commercial, industrial, agricultural, and solar water applications. Its pump head and base are made of cast iron, with all wetted components in stainless steel (EN 1.4301). A cartridge shaft seal (HQQE) ensures safe handling, high reliability, and easy maintenance. Power transmission is via a rigid split coupling, and the pump uses combined DIN, ANSI, and JIS flanges. The pump is fitted with a 1-phase, fan-cooled asynchronous motor.
Key Features & Applications
- Vertical multistage centrifugal pump with inline suction and discharge ports
- Cast iron pump head and base with stainless steel wetted parts
- Cartridge shaft seal (HQQE) for high reliability and easy servicing
- Combined DIN / ANSI / JIS flange connections
- Ideal for commercial heating, cooling, and water pressure boosting
- Suitable for industrial water supply, wastewater, and water treatment
- Compatible with irrigation, agriculture, and solar water solutions
Technical Specifications
| Specification | Details |
|---|---|
| Product Number | 92901535 |
| Rated Flow | 3 m³/h |
| Rated Head | 26.9 m |
| Maximum Head | 38.7 m |
| Stages / Impellers | 6 / 6 |
| Motor Power | 0.55 kW, 1 × 220–230 V, 50 Hz |
| Maximum Operating Pressure | 25 bar |
| Liquid Temperature Range | -20 °C to 120 °C |
| Approvals | CE, EAC, UKCA, RCM, WRAS, ACS |
| Net / Gross Weight | 27.5 kg / 29.9 kg |
Documentation & Downloads
| Document Type | Download |
|---|---|
| Grundfos Product Datasheet | 📄 Download PDF |
