Grundfos CR 3-2 A-A-A-E-HQQE Vertical Multistage Pump – 92901485 (1 x 220-230V)
by Pumptastic
SKU 92901485
Original price
$939.13
-
Original price
$939.13
Original price
$939.13
$939.13
-
$939.13
Current price
$939.13
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 3-2 A-A-A-E-HQQE is a vertical, multistage centrifugal pump with inlet and outlet ports on the same level. Its pump head and base are made of robust cast iron while all other wetted parts are stainless steel (EN 1.4301). Equipped with a cartridge shaft seal, the pump ensures high reliability, safe handling, and easy access for maintenance. Power is transmitted via a rigid split coupling, and the pump comes with a 1-phase, fan-cooled asynchronous motor.
Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating & cooling
- Machining & wash/clean processes
- Industrial heating, cooling, and water supply
- Industrial wastewater & process water treatment
- Desalination & Reverse Osmosis water treatment
- Surface water intake & drinking water treatment
- Water distribution & irrigation
- Solar water solutions & agriculture solar solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer & pivot irrigation
- Solar boosting & digital water management
- Fertigation, chemigation & dosing
- Livestock watering with solar solutions
Key Specifications
| Model | CR 3-2 A-A-A-E-HQQE |
| SKU | 92901485 |
| Pump type | Vertical, multistage centrifugal |
| Pump orientation | Vertical |
| Pumped liquid | Water |
| Liquid temperature range | -20 … 120 °C |
| Density | 998.2 kg/m³ |

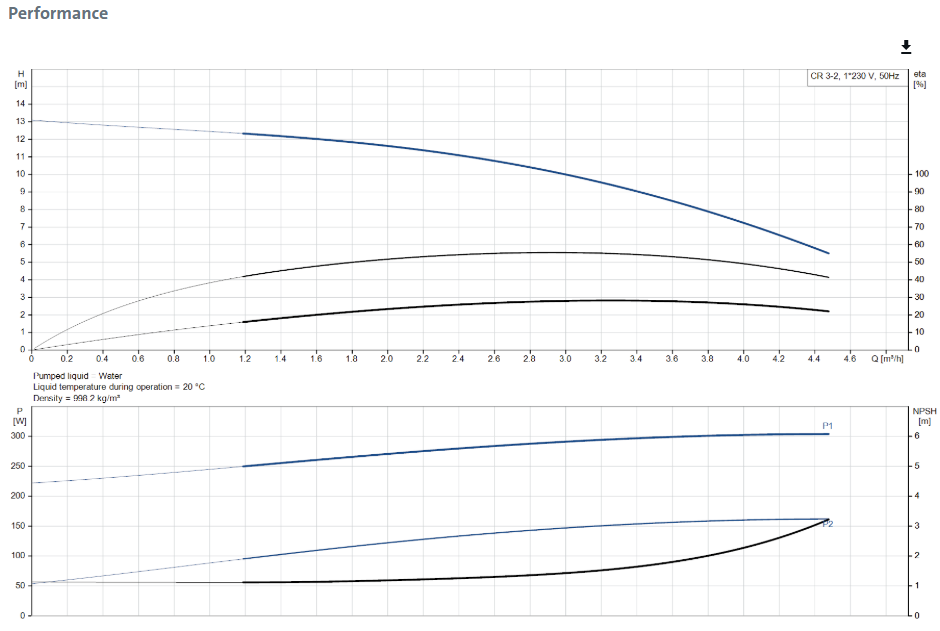

| Rated flow | 3 m³/h |
| Rated head | 9.2 m |
| Maximum head | 13.2 m |
| Stages | 3 |
| Impellers | 2 |
| Shaft seal | Single, HQQE |
| Approvals | CE, EAC, UKCA, SEPRO, RCM |
| Drinking water approvals | WRAS, ACS |
| Pump materials | Base: Cast iron EN-GJL-200; Impeller: Stainless steel EN 1.4301 (AISI 304); Bearing: SIC |

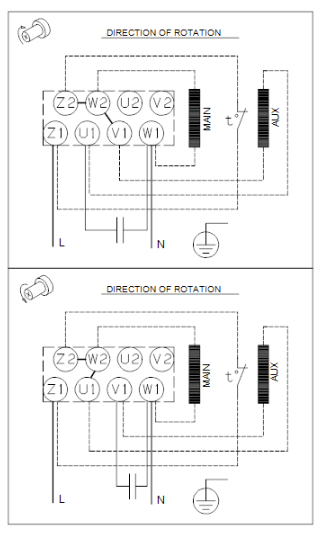

| Electrical data | Motor: 71C IEC, 0.37 kW, 1 x 220-230 V, 50 Hz, 2700 rpm, IE2 |
| Maximum operating pressure | 16 bar |
| Max ambient temperature | 40 °C |
| Net weight | 21.1 kg |
| Gross weight | 23.8 kg |
| Country of origin | Australia |
Documentation & Downloads
| Document | Download |
|---|---|
| Grundfos Product PDF | 📄 Download PDF |
