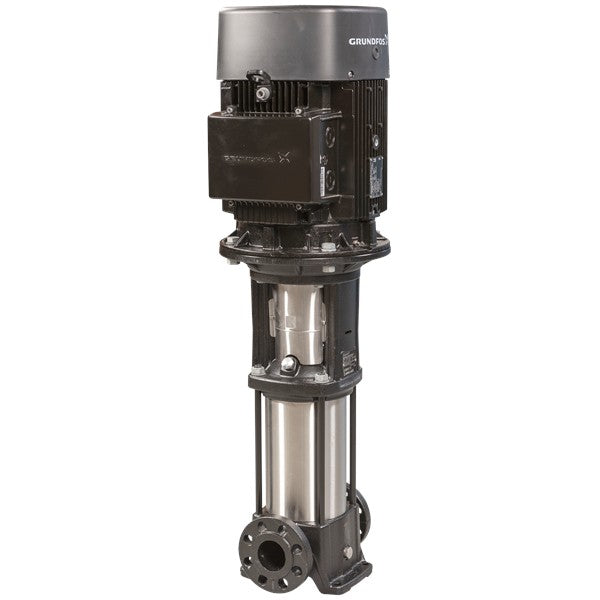

Grundfos CR 3-15 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 92901543 (1 x 220-230V)
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 3-15 A-FGJ-A-E-HQQE is a vertical, multistage centrifugal
inline pump designed for commercial, industrial, agricultural, and solar water
applications. With suction and discharge ports on the same level, the pump
offers a compact inline configuration.
The pump head and base are constructed from cast iron, while all other wetted
components are stainless steel (EN 1.4301 / AISI 304). A reliable cartridge
shaft seal (HQQE) ensures safe handling, easy maintenance, and long-term
durability. Power transmission is via a rigid split coupling, and the pump is
equipped with a 1-phase, fan-cooled IEC asynchronous motor. Combined DIN /
ANSI / JIS flange connections provide versatile installation options. Approved
for drinking water (WRAS & ACS), it is suitable for pressure boosting,
irrigation, water treatment, and solar-powered systems.
Key Features & Benefits
- Vertical multistage centrifugal inline pump
- Cast iron pump head and base with stainless steel wetted parts
- Cartridge shaft seal (HQQE) for high reliability and easy maintenance
- Combined DIN / ANSI / JIS flange connections
- Approved for drinking water (WRAS & ACS)
- High-efficiency IE2 single-phase motor
- Wide liquid temperature range: -20°C to 120°C
- Ideal for commercial, industrial, agricultural, and solar water solutions
Key Specifications
| Product Code | CR 3-15 A-FGJ-A-E-HQQE |
| Product Number | 92901543 |

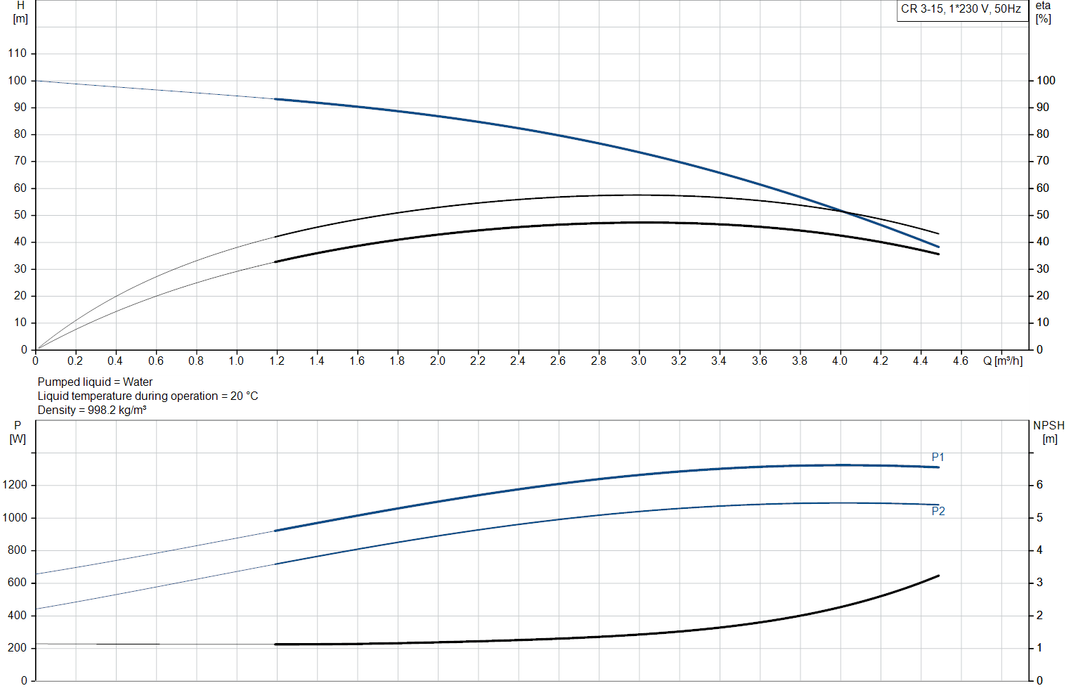

| Rated Flow | 3 m³/h |
| Rated Head | 66.6 m |
| Maximum Head | 96.4 m |
| Number of Stages | 15 |

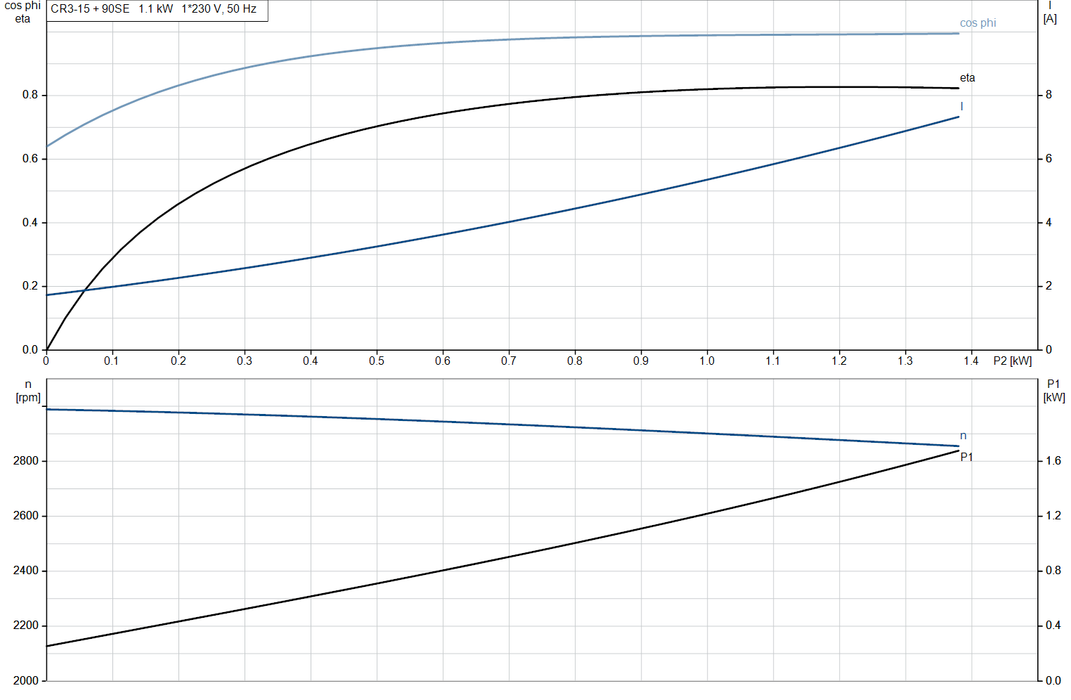

| Motor Power (P2) | 1.1 kW |
| Power Supply | 1 × 220–230 V, 50 Hz |
| Maximum Operating Pressure | 25 bar |
| Liquid Temperature Range | -20 to 120 °C |
| Connection Size | DN 25/32 (1 1/4") |
| Shaft Seal | HQQE (Single) |
| Net Weight | 40.1 kg |
Documentation & Downloads
| Document | Download |
|---|---|
| Product Datasheet / Technical PDF | 📄 Download PDF |
