Grundfos CR 3-12 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 92901541 (1 x 220-230V)
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 3-12 A-FGJ-A-E-HQQE is a vertical, multistage centrifugal
inline pump designed for commercial, industrial, agricultural, and solar water
applications. Suction and discharge ports are on the same level, providing a
compact inline installation.
The pump head and base are made of cast iron, with all other wetted parts in
stainless steel (EN 1.4301 / AISI 304) for excellent corrosion resistance. The
cartridge shaft seal (HQQE) ensures high reliability and easy service access.
Power is transmitted via a rigid split coupling, and the pump is fitted with a
1-phase, fan-cooled asynchronous IEC motor. Combined DIN / ANSI / JIS flange
connections allow flexible installation. Approved for drinking water
applications, the CR 3-12 is ideal for pressure boosting, water treatment,
irrigation, and solar water supply solutions.
Key Features & Benefits
- Vertical multistage centrifugal inline pump
- Cast iron pump head and base with stainless steel wetted parts
- Reliable cartridge shaft seal (HQQE) for easy maintenance
- Combined DIN / ANSI / JIS flange connections
- Approved for drinking water (WRAS & ACS)
- High-efficiency IE2 single-phase motor
- Wide liquid temperature range: -20°C to 120°C
- Suitable for commercial, industrial, agricultural, and solar applications

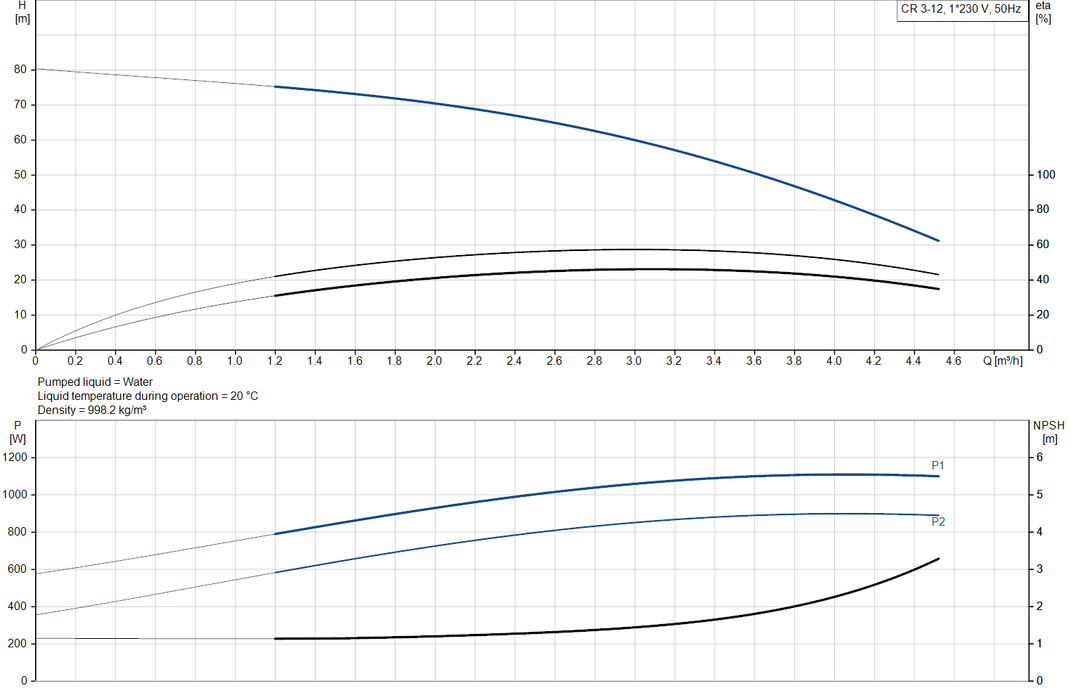

Key Specifications
| Product Code | CR 3-12 A-FGJ-A-E-HQQE |
| Product Number | 92901541 |
| Rated Flow | 3 m³/h |
| Rated Head | 55 m |
| Maximum Head | 77.9 m |
| Number of Stages | 12 |
| Motor Power (P2) | 1.1 kW |
| Power Supply | 1 × 220–230 V, 50 Hz |
| Maximum Operating Pressure | 25 bar |
| Liquid Temperature Range | -20 to 120 °C |
| Connection Size | DN 25/32 (1 1/4") |
| Shaft Seal | HQQE (Single) |
| Net Weight | 38.8 kg |
