Grundfos CR 20-1 A-F-A-E-HQQE Vertical Multistage Pump – 96500326 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96500326
Original price
$1,812.94
-
Original price
$1,812.94
Original price
$1,812.94
$1,812.94
-
$1,812.94
Current price
$1,812.94
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 20-1 A-F-A-E-HQQE is a vertical, non-self-priming, multistage in-line centrifugal pump designed for pipe system installation or foundation mounting. Its cast iron head and base combined with stainless steel wetted parts (EN 1.4301) ensure durability and reliable performance for commercial, industrial, and water treatment applications.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and cooling
- Machining, wash and clean processes
- Process liquids transfer
- Industrial heating and cooling
- Industrial water supply and wastewater
- Industrial process water treatment
- Desalination and reverse osmosis
- Surface water intake and drinking water treatment
- Water distribution and community water supply
- Irrigation, rotor & spray irrigation, pivot systems
- Groundwater transfer
- Solar water boosting and solar water solutions
- Controls and digital water management for agriculture and solar applications
- Livestock watering with solar solutions
Key Specifications
| Model | CR 20-1 A-F-A-E-HQQE |
| Product Number | 96500326 |
| Pump Type | Vertical multistage centrifugal, in-line |

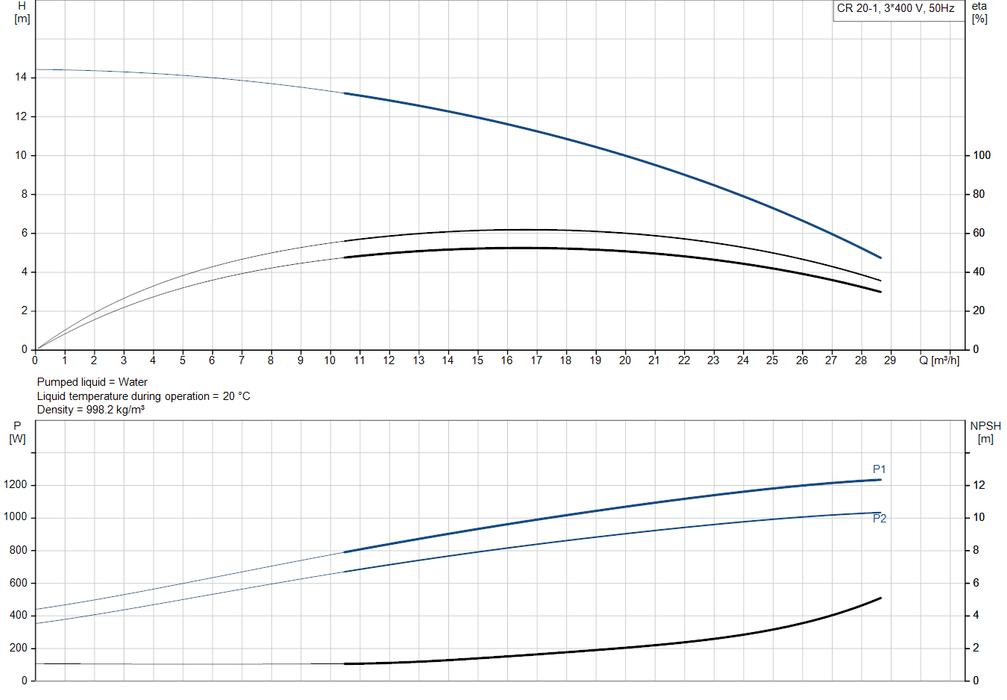

| Rated Flow | 21 m³/h |
| Rated Head | 9.9 m |
| Maximum Head | 14 m |
| Number of Stages | 2 |
| Impellers | 1 |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 16 bar |
| Connection Type | DIN flanged |
| Inlet / Outlet Size | DN 50 / DN 50 |
| Pressure Rating | PN 25 |
| Flange Size for Motor | FT100 |
| Impeller Material | Stainless steel (EN 1.4301 / AISI 304) |
| Pump Head & Base | Cast iron (EN-GJL-200) |
| Shaft Seal | Single, HQQE (EN 12756) |

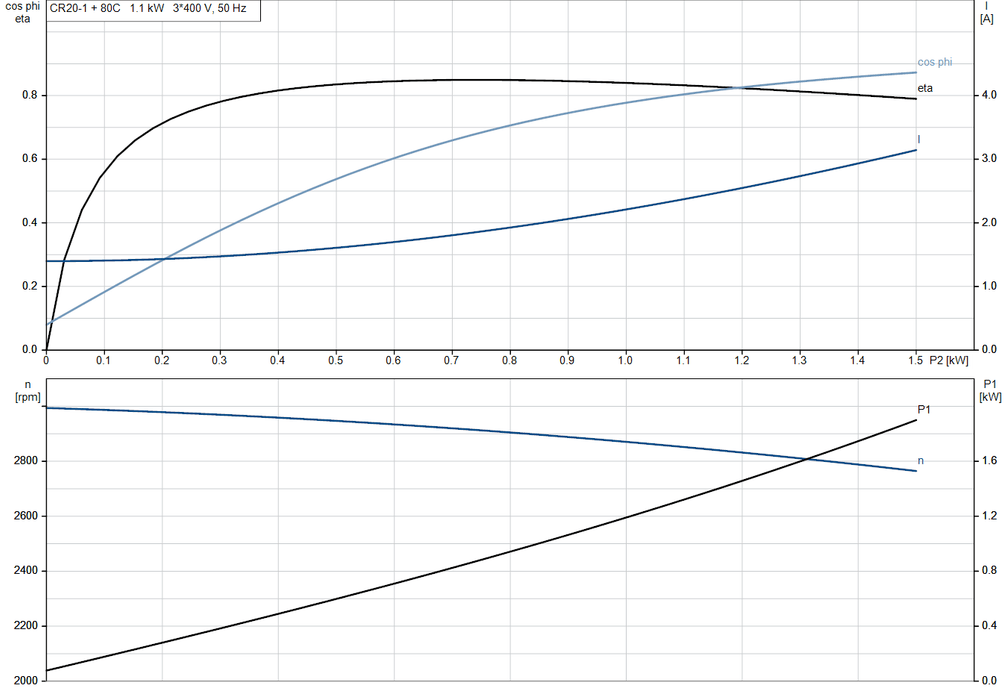

| Motor Type | 3-phase AC, 80C |
| Rated Power (P2) | 1.1 kW |
| Motor Efficiency Class | IE3 |
| Rated Voltage | 3 × 220–240D / 380–415Y V |
| Rated Current | 4.35 / 2.50 A |
| Rated Speed | 2840–2870 rpm |
| Approvals | CE, EAC, UKCA, SEPRO, RCM |
| Drinking Water Approvals | WRAS, ACS |
| Net Weight | 42 kg |
| Gross Weight | 55 kg |
