Grundfos CR 15-17 A-F-A-E-HQQE Vertical Multistage Pump – 96501904 (3 x 380-415D/660-690YD)
by Grundfos
SKU 96501904
Original price
$7,933.75
-
Original price
$7,933.75
Original price
$7,933.75
$7,933.75
-
$7,933.75
Current price
$7,933.75
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 15-17 A-F-A-E-HQQE is a vertical, non-self-priming, multistage in-line centrifugal pump designed for installation in pipe systems or mounting on a foundation. It features a cast iron pump head and base, with all other wetted parts made from stainless steel (EN 1.4301), ensuring high durability and reliable performance in demanding water supply, treatment, and industrial applications.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and district cooling
- Machining, wash-down, and cleaning systems
- Process liquids transfer
- Industrial heating and cooling systems
- Industrial water supply and wastewater systems
- Industrial process water treatment
- Desalination and reverse osmosis systems
- Surface water intake and drinking water treatment
- Water distribution and community water supply
- Irrigation, rotor & spray irrigation, pivot systems
- Groundwater transfer
- Solar water boosting and solar water supply solutions
- Livestock watering with solar solutions
- Controls and digital water management for agriculture and solar applications
Key Specifications
| Model | CR 15-17 A-F-A-E-HQQE |
| Product Number | 96501904 |
| Pump Type | Vertical multistage centrifugal, in-line |

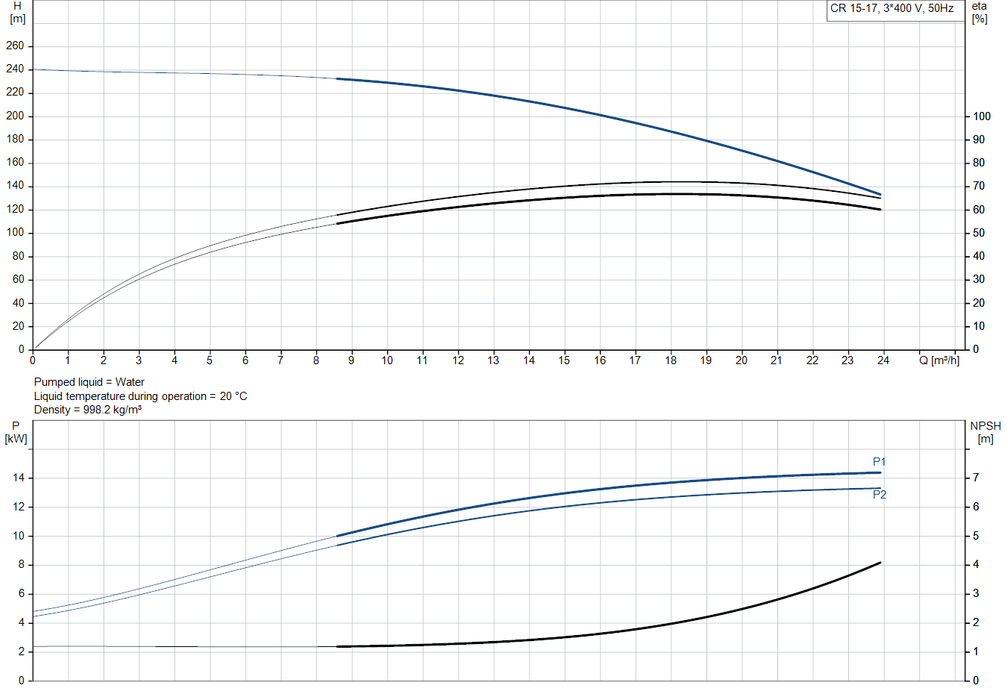

| Rated Flow | 17 m³/h |
| Rated Head | 191.9 m |
| Maximum Head | 239 m |
| Number of Stages | 17 |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 to 120 °C |
| Maximum Operating Pressure | 25 bar |
| Connection Type | DIN flanged |
| Inlet / Outlet Size | DN 50 / DN 50 |
| Pressure Rating | PN 25 |
| Impeller Material | Stainless steel (EN 1.4301 / AISI 304) |
| Pump Head & Base | Cast iron (EN-GJL-200) |
| Shaft Seal | Single, HQQE (EN 12756) |

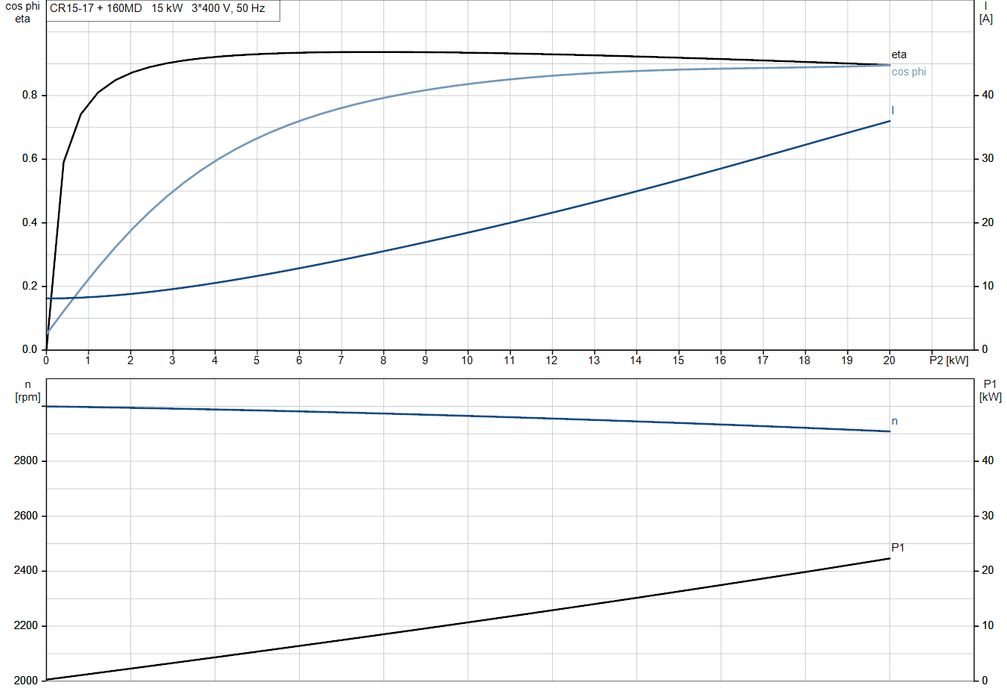

| Motor Power (P2) | 15 kW |
| Motor Efficiency Class | IE3 |
| Rated Speed | 2930–2950 rpm |
| Voltage | 3 × 380–415D / 660–690Y V |
| Frequency | 50 Hz |
| Approvals | CE, EAC, UKCA, SEPRO |
| Drinking Water Approvals | WRAS, ACS |
| Net Weight | 174 kg |
| Gross Weight | 205 kg |
Documentation & Downloads
| Product Data Sheet (PDF) | Download |
