Grundfos CR 15-1 A-F-A-E-HQQE Vertical Multistage Pump – 92959640 (1 x 220-230V)
by Grundfos
SKU 92959640
Original price
$2,034.31
-
Original price
$2,034.31
Original price
$2,034.31
$2,034.31
-
$2,034.31
Current price
$2,034.31
📢 For orders over $100, FREE Shipping Australia-wide

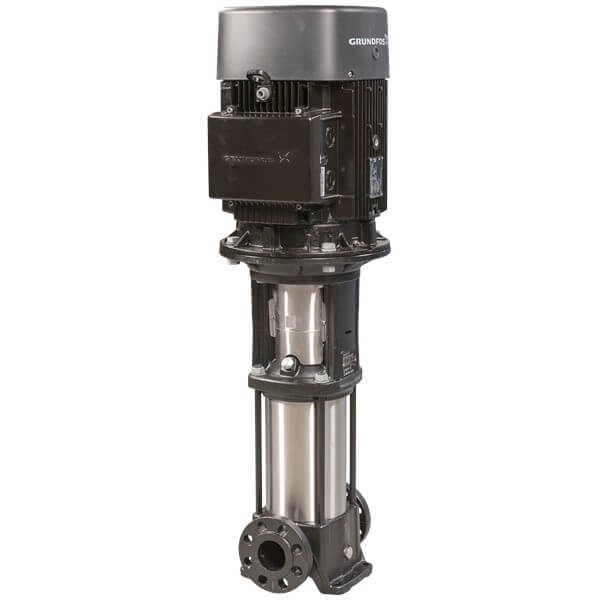

The Grundfos CR 15-1 A-F-A-E-HQQE is a vertical, non-self-priming, multistage, in-line centrifugal pump designed for installation in pipe systems and mounting on a foundation. It features suction and discharge ports on the same level, a cast iron pump head and base, and stainless steel (EN 1.4301) wetted components for reliable performance in water supply, commercial, and industrial applications.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis – water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment, fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product No. | 92959640 |
| Pump Type | Vertical multistage centrifugal |
| Rated Flow | 17 m³/h |
| Rated Head | 9.5 m |
| Maximum Head | 13.3 m |
| Stages | 2 |
| Impellers | 1 |
| Pump Orientation | Vertical |
| Shaft Seal Arrangement | Single |
| Primary Shaft Seal | HQQE |
| Base Material | Cast iron (EN-GJL-200 / ASTM A48-25B) |
| Impeller Material | Stainless steel EN 1.4301 (AISI 304) |
| Motor Type | IEC 90SE, single-phase |
| Rated Power (P2) | 1.1 kW |
| Rated Voltage | 1 × 220–230 V, 50 Hz |
| IE Efficiency Class | IE2 |
| Maximum Operating Pressure | 16 bar |
| Liquid Temperature Range | -20 to 120 °C |
| Connection Type | DIN flanges, DN 50 inlet / outlet |
| Net Weight | 50 kg |
| Country of Origin | Australia |
Documentation & Downloads
| CR 15-1 A-F-A-E-HQQE Datasheet (PDF) |
