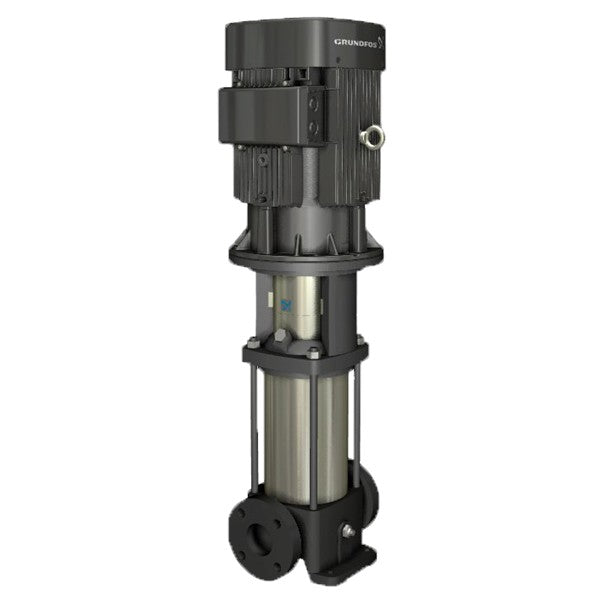

Grundfos CR 1-9 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 98149308 (3 x 220-240D/380-415YV)
by Grundfos
SKU 98149308
Original price
$1,210.00
-
Original price
$1,210.00
Original price
$1,210.00
$1,210.00
-
$1,210.00
Current price
$1,210.00
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 1-9 A-FGJ-A-E-HQQE is a vertical, multistage centrifugal in-line pump with suction and discharge ports on the same level. The pump head and base are manufactured from cast iron, while all other wetted parts are made of stainless steel to ensure high corrosion resistance and long service life. A cartridge-type shaft seal provides high reliability, safe handling, and easy service access. Power transmission is via a rigid split coupling, and pipe connections are made using combined DIN / ANSI / JIS flanges.
Technical Specifications
| Product Name | CR 1-9 A-FGJ-A-E-HQQE |
| Product Number | 98149308 |
| EAN | 5711490502299 |
| Pump Type | Vertical, multistage, in-line centrifugal pump |
| Pump Orientation | Vertical |
| Stages | 9 |
| Impellers | 9 |

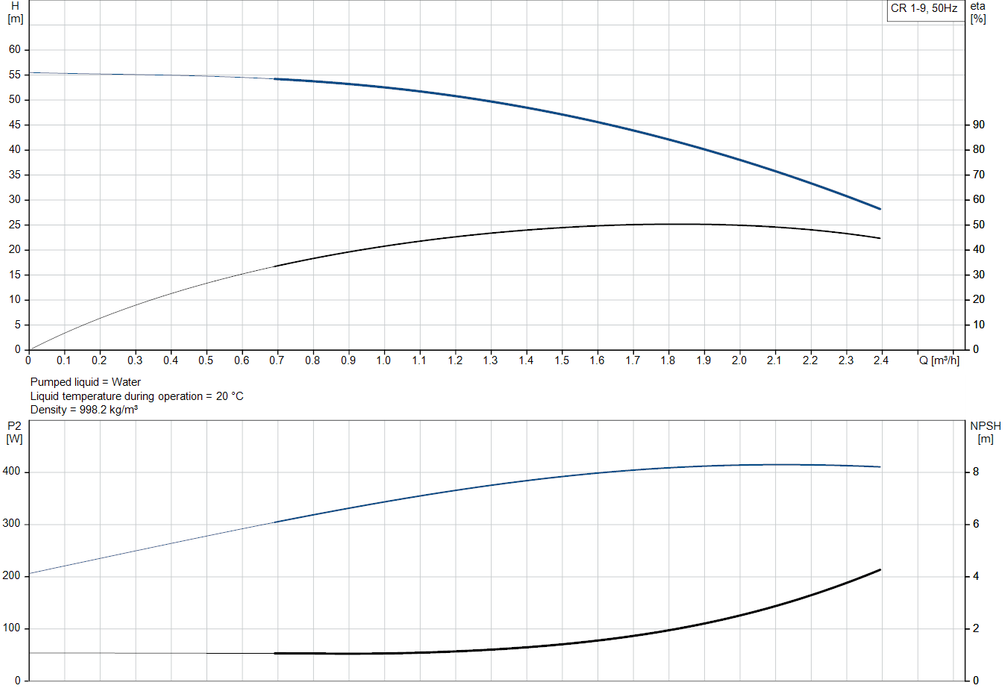

| Rated Flow | 1.8 m³/h |
| Rated Head | 42.9 m |
| Maximum Head | 56 m |
| Pump Speed (Data Basis) | 2856 rpm |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 °C to 120 °C |
| Selected Liquid Temperature | 20 °C |
| Liquid Density | 998.2 kg/m³ |
| Shaft Seal Arrangement | Single |
| Primary Shaft Seal | HQQE (Cartridge seal) |
| Curve Tolerance | ISO 9906:2012 3B |
| Pump Head / Base Material | Cast iron (EN-GJL-200 / ASTM A48-25B) |
| Impellers | Stainless steel (EN 1.4301 / AISI 304) |
| Material Code | A |
| Rubber Components | EPDM (Code E) |
| Maximum Operating Pressure | 25 bar |
| Maximum Pressure at Temperature | 25 bar at 120 °C / 25 bar at -20 °C |
| Connection Type | DIN / ANSI / JIS flanges |
| Inlet Connection | DN 25/32 (1 1/4 inch) |
| Outlet Connection | DN 25/32 (1 1/4 inch) |
| Pressure Rating | PN 25 |
| Flange Rating (Inlet) | 250 lb |
| Flange Size for Motor | FT85 |
| Motor Standard | IEC |
| Motor Power (P2) | 0.55 kW |
| Frequency Converter | None |
| Pressure Sensor | No |
| Net Weight | 25.1 kg |
| Gross Weight | 27.8 kg |
| Shipping Volume | 0.063 m³ |
| Country of Origin | AU |
| Custom Tariff Number | 8413709062 |
Documentation & Downloads
| Product Datasheet – CR 1-9 A-FGJ-A-E-HQQE | Download PDF |
