Grundfos CR 1-8 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 96516245 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516245
Original price
$1,150.19
-
Original price
$1,150.19
Original price
$1,150.19
$1,150.19
-
$1,150.19
Current price
$1,150.19
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 1-8 A-FGJ-A-E-HQQE is a vertical, non-self-priming, multistage, in-line centrifugal pump designed for installation in pipe systems or mounting on a foundation. The suction and discharge ports are positioned on the same level. The pump head and base are manufactured from cast iron, while all other wetted parts are made of stainless steel (EN 1.4301), providing excellent corrosion resistance, durability, and long service life in demanding commercial, industrial, and agricultural applications.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and district cooling
- Industrial heating and cooling
- Industrial water supply and wastewater
- Industrial process water treatment
- Process liquids transfer
- Desalination and reverse osmosis water treatment
- Surface water intake and drinking water treatment
- Water distribution
- Irrigation (rotor, spray, pivot)
- Groundwater transfer
- Community water supply
- Solar water solutions and boosting systems
- Solar controls and digital water management
- Agriculture and livestock watering with solar solutions
Technical Specifications
| Product Name | CR 1-8 A-FGJ-A-E-HQQE |
| Product Number | 96516245 |
| EAN | 5700396739359 |
| Pump Type | Vertical, multistage, in-line centrifugal pump |
| Pump Orientation | Vertical |
| Stages | 8 |
| Impellers | 8 |

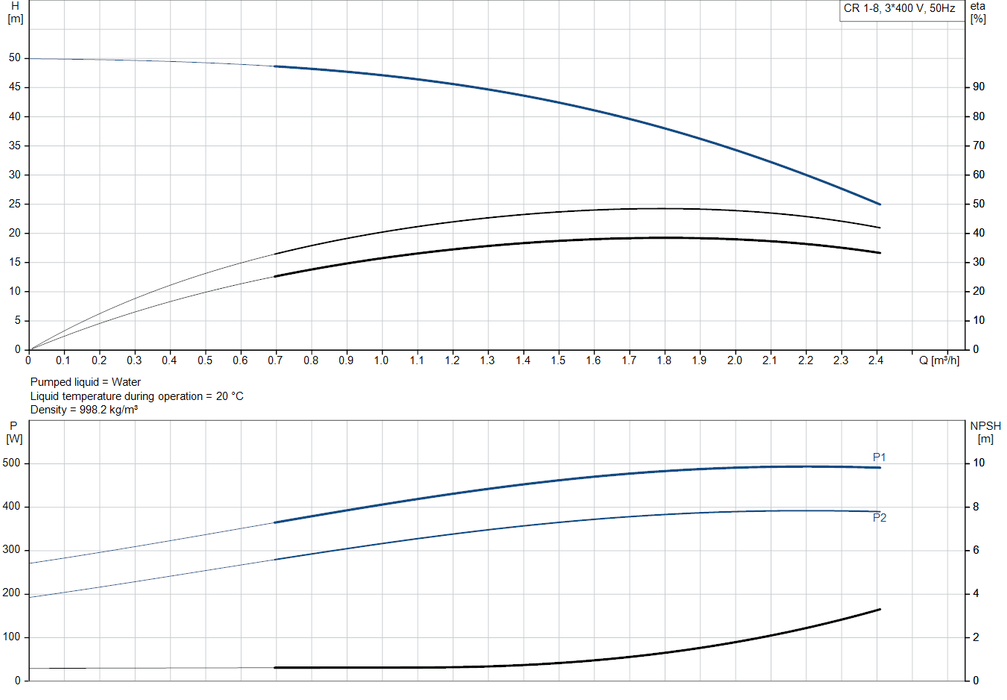

| Rated Flow | 1.8 m³/h |
| Rated Head | 38.6 m |
| Maximum Head | 50 m |
| Pump Speed (Data Basis) | 2856 rpm |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 °C to 120 °C |
| Selected Liquid Temperature | 20 °C |
| Liquid Density | 998.2 kg/m³ |
| Shaft Seal Arrangement | Single |
| Primary Shaft Seal | HQQE (EN 12756) |
| Pump Head / Base Material | Cast iron (EN-GJL-200 / ASTM A48-25B) |
| Impellers & Chambers | Stainless steel (EN 1.4301 / AISI 304) |
| Bearing | SIC |
| Rubber Components | EPDM (Code E) |
| Maximum Operating Pressure | 25 bar |
| Maximum Ambient Temperature | 60 °C |
| Connection Type | DIN / ANSI / JIS flanges |
| Inlet Connection | DN 25/32 (1 1/4 inch) |
| Outlet Connection | DN 25/32 (1 1/4 inch) |
| Pressure Rating | PN 25 |
| Flange Rating (Inlet) | 250 lb |

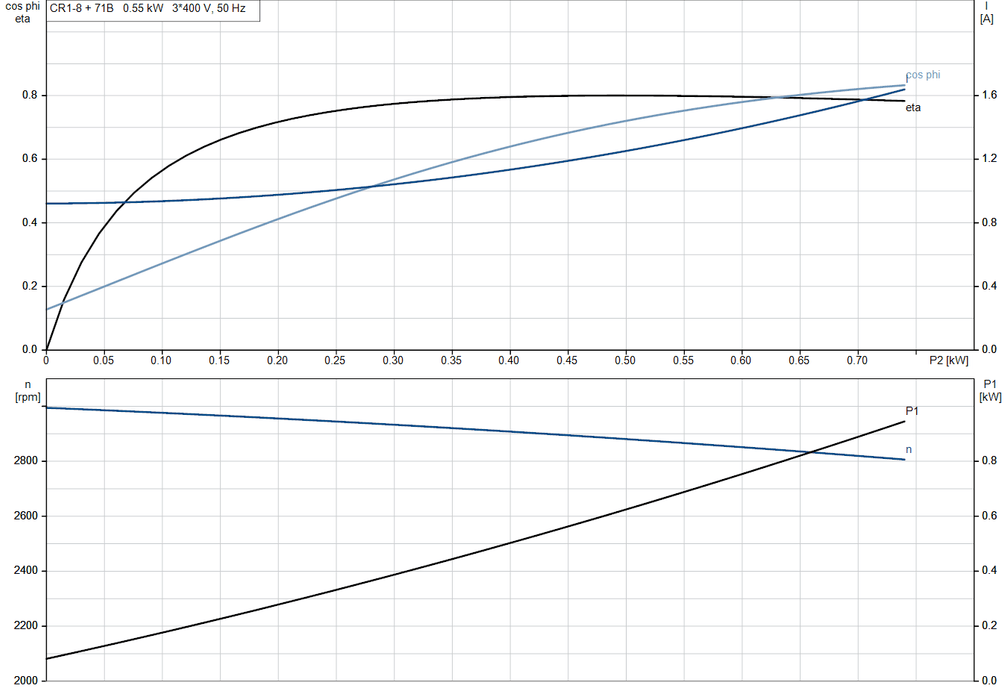

| Motor Type | 3-phase AC motor (IEC) |
| Motor Frame | 71B |
| Motor Power (P2) | 0.55 kW |
| Phase | 3 Phase |
| Rated Voltage | 3 × 220–240Δ / 380–415Y V |
| Frequency | 50 Hz |
| Rated Current | 2.50 / 1.44 A |
| Rated Speed | 2830–2850 rpm |
| Efficiency Class | IE3 |
| Enclosure Class | IP55 (Dust / Jetting) |
| Insulation Class | F |
| Approvals | CE, EAC, UKCA, SEPRO, RCM |
| Drinking Water Approvals | WRAS, ACS |
| Curve Tolerance | ISO 9906:2012 3B |
| Minimum Efficiency Index (MEI) | ≥ 0.70 |
| Net Weight | 24.6 kg |
| Gross Weight | 27.4 kg |
| Shipping Volume | 0.063 m³ |
| Country of Origin | AU |
Documentation & Downloads
| Product Datasheet – CR 1-8 A-FGJ-A-E-HQQE | Download PDF |
