Grundfos CR 1-7 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 92901038 (1 x 220-230V)
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 1-7 A-FGJ-A-E-HQQE is a vertical, inline, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are manufactured from cast iron, while all other wetted parts are made of stainless steel (EN 1.4301 / AISI 304), providing excellent corrosion resistance and durability. A cartridge-type HQQE shaft seal ensures high reliability, safe handling, and easy service access. Power transmission is via a rigid split coupling, and pipe connections are made using combined DIN, ANSI, and JIS flanges. The pump is fitted with a 1-phase, fan-cooled asynchronous motor, making it suitable for a wide range of commercial, industrial, and solar-driven water applications.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and district cooling
- Machining, wash and clean, and process liquids transfer
- Industrial heating, cooling, and water supply
- Industrial wastewater and process water treatment
- Desalination and reverse osmosis water treatment
- Surface water intake and drinking water treatment
- Water distribution and community water supply
- Irrigation, rotor & spray irrigation, and pivot systems
- Groundwater transfer
- Solar water solutions and solar boosting systems
- Controls and digital groundwater management
- Solar water treatment, fertigation, and dosing
- Agriculture solar solutions and livestock watering
Key Specifications
| Product Model | CR 1-7 A-FGJ-A-E-HQQE |
| Product Number | 92901038 |
| Phase | 1 Phase |
| Voltage | 220–230 V |
| Frequency | 50 Hz |

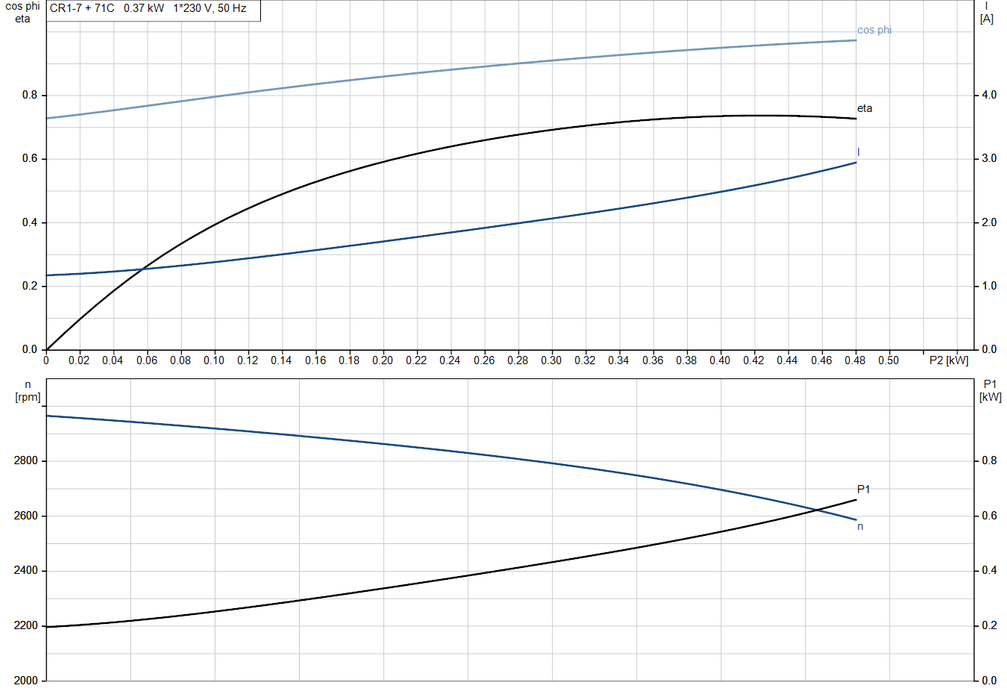

| Motor Type | Fan-cooled asynchronous motor (IEC) |
| Motor Power (P2) | 0.37 kW |

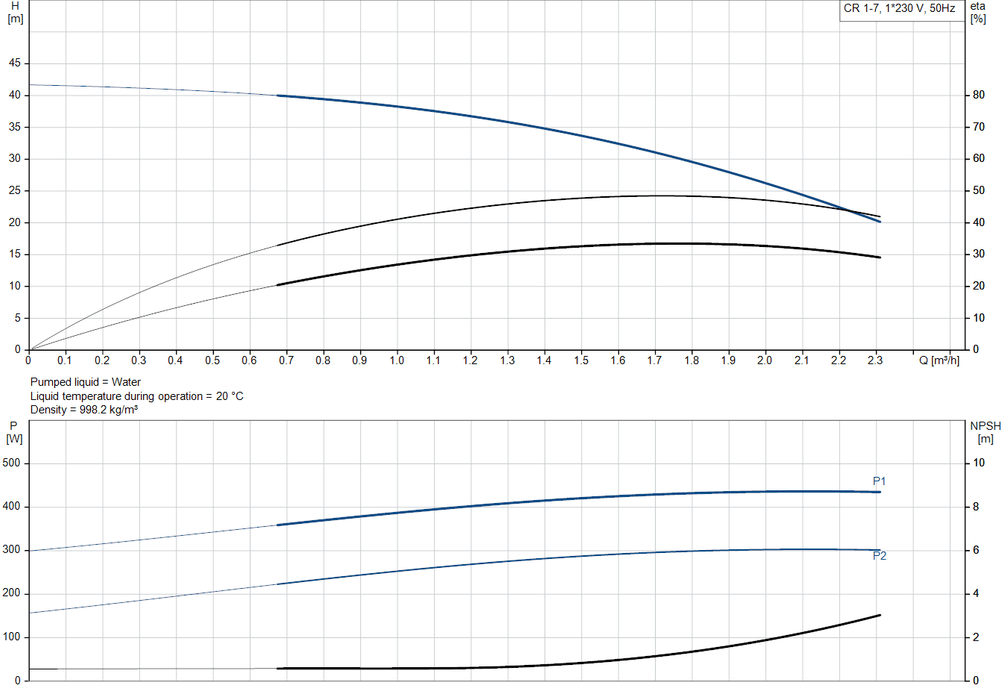

| Rated Flow | 1.8 m³/h |
| Rated Head | 31.6 m |
| Maximum Head | 42.8 m |
| Stages / Impellers | 7 / 7 |
| Pump Orientation | Vertical (Inline) |
| Shaft Seal | Single mechanical seal (HQQE) |
| Maximum Operating Pressure | 25 bar |
| Liquid Temperature Range | -20 °C to 120 °C |
| Flanges | DIN / ANSI / JIS, DN 25/32 (1 1/4 inch), PN 25 |
| Material | Base & pump head: Cast iron; Wetted parts & impellers: Stainless steel (EN 1.4301 / AISI 304) |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
| Net Weight | 27.6 kg |
| Country of Origin | AU |
Documentation & Downloads
| CR 1-7 A-FGJ-A-E-HQQE Datasheet | Download PDF |
