Grundfos CR 1-3 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 96516240 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516240
Original price
$985.88
-
Original price
$985.88
Original price
$985.88
$985.88
-
$985.88
Current price
$985.88
📢 For orders over $100, FREE Shipping Australia-wide
Vertical, non-self-priming, multistage inline centrifugal pump designed for installation in pipe systems and mounting on a foundation. The pump head and base are manufactured from cast iron, while all wetted parts including impellers and chambers are made from stainless steel (EN 1.4301 / AISI 304). A cartridge mechanical shaft seal with EN 12756 assembly length ensures reliable sealing and ease of maintenance. Power transmission is via a cast iron split coupling, and pipe connections are provided through combined DIN / ANSI / JIS flanges. The pump is fitted with a high-efficiency 3-phase IEC motor.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and cooling
- Industrial water supply and wastewater
- Process liquids transfer and industrial process water treatment
- Desalination and reverse osmosis water treatment
- Drinking water treatment and distribution
- Irrigation, community water supply, and solar water solutions
- Agriculture, fertigation, and livestock watering with solar solutions
Key Specifications
| Product Model | CR 1-3 A-FGJ-A-E-HQQE |
| Product Number | 96516240 |
| Phase | 3 Phase |
| Voltage | 220–240 V (Delta) / 380–415 V (Star) |
| Frequency | 50 Hz |

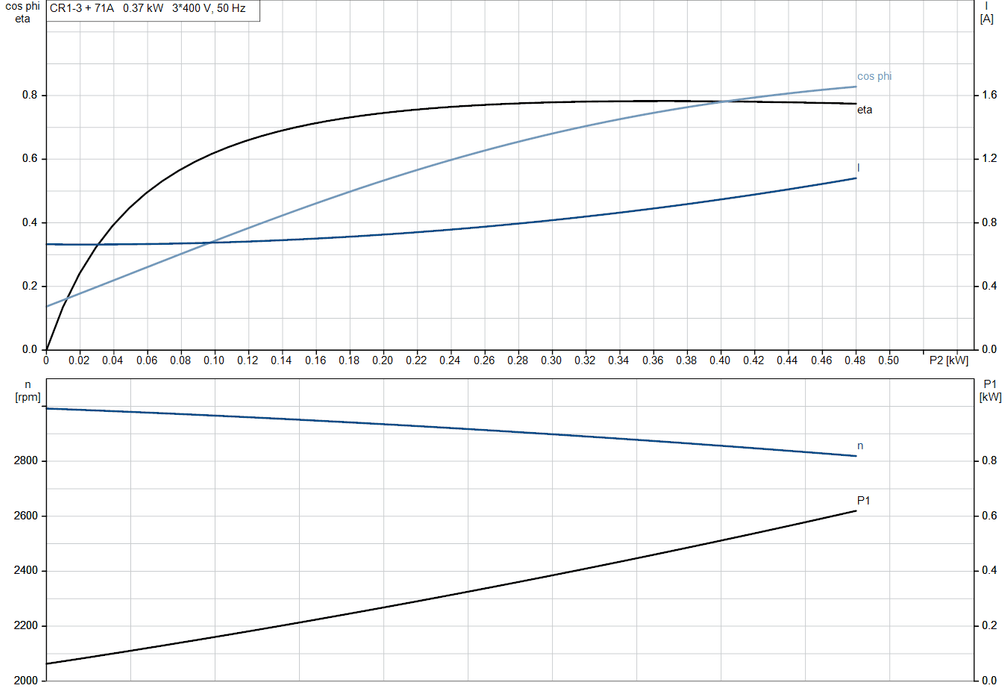

| Motor Type | IEC 71A, IE3 high-efficiency motor |
| Motor Power (P2) | 0.37 kW |

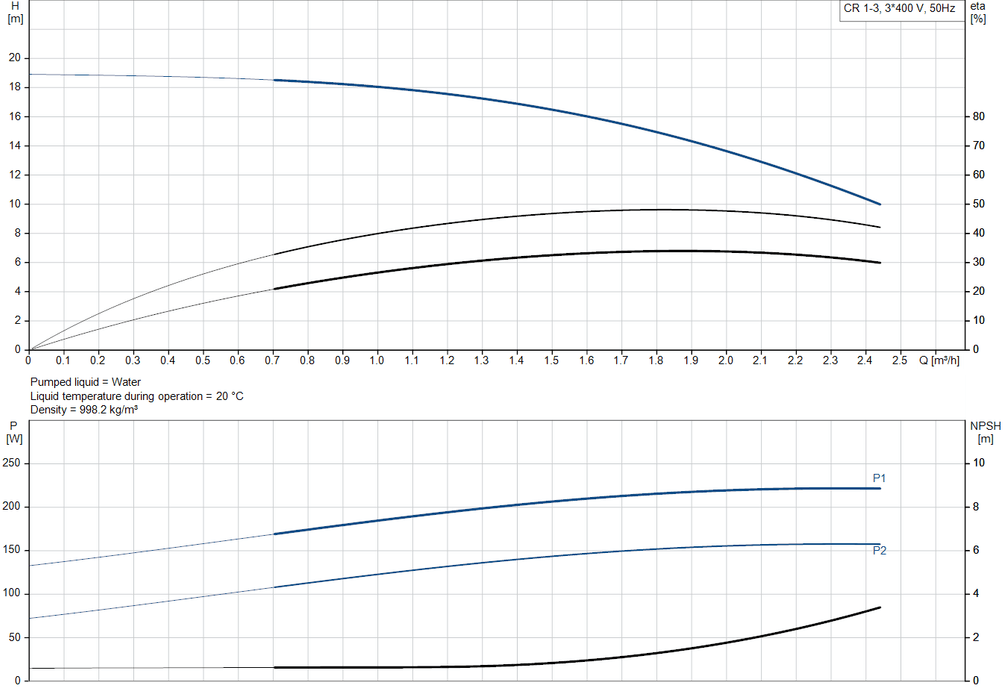

| Rated Flow | 1.8 m³/h |
| Rated Head | 15.6 m |
| Maximum Head | 19.2 m |
| Stages / Impellers | 3 / 3 |
| Pump Orientation | Vertical (Inline) |
| Shaft Seal | Single mechanical seal (HQQE) |
| Maximum Operating Pressure | 25 bar |
| Liquid Temperature Range | -20 °C to 120 °C |
| Flanges | DIN / ANSI / JIS, DN 25/32 (1 1/4 inch), PN 25 |
| Material |
Base & pump head: Cast iron (EN-GJL-200) Wetted parts & impellers: Stainless steel (EN 1.4301 / AISI 304) |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
| Net Weight | 23.1 kg |
| Country of Origin | AU |
| Price | AUD 1434 |
Documentation & Downloads
| CR 1-3 A-FGJ-A-E-HQQE Datasheet | Download PDF |
