Grundfos CR 1-3 A-A-A-E-HQQE Vertical Multistage Centrifugal Pump – 96516170 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516170
Original price
$923.31
-
Original price
$923.31
Original price
$923.31
$923.31
-
$923.31
Current price
$923.31
📢 For orders over $100, FREE Shipping Australia-wide

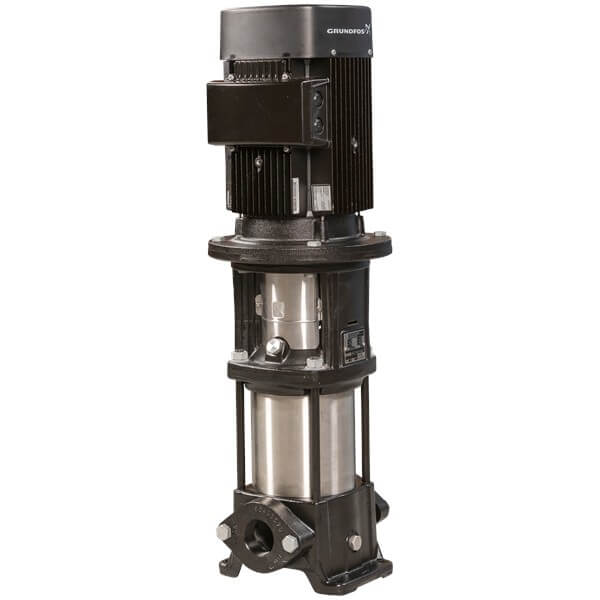

The Grundfos CR 1-3 A-A-A-E-HQQE is a vertical, non-self-priming, multistage, in-line centrifugal pump designed for installation in pipe systems or mounting on a foundation. The pump head and base are manufactured from cast iron, while all wetted parts, including impellers and intermediate chambers, are made from stainless steel (EN 1.4301 / AISI 304) for corrosion resistance and long service life.
The pump is fitted with a single mechanical cartridge shaft seal (HQQE) with assembly length according to EN 12756, ensuring high reliability and ease of service. Power transmission is via a cast iron split coupling, and the unit is driven by a high-efficiency IE3, 3-phase AC motor.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and cooling
- Industrial heating and cooling
- Industrial water supply and wastewater
- Industrial process water treatment
- Desalination and reverse osmosis water treatment
- Surface water intake and drinking water treatment
- Water distribution systems
- Irrigation, rotor & spray irrigation
- Groundwater transfer and pivot irrigation
- Community water supply
- Solar water solutions and solar boosting
- Agriculture and livestock watering with solar solutions
Key Specifications
| Product Name | CR 1-3 A-A-A-E-HQQE |
| Product Number | 96516170 |
| Pump Type | Vertical multistage centrifugal (inline) |
| Phase | 3 Phase |
| Rated Voltage | 3 × 220–240 V (Δ) / 380–415 V (Y), 50 Hz |

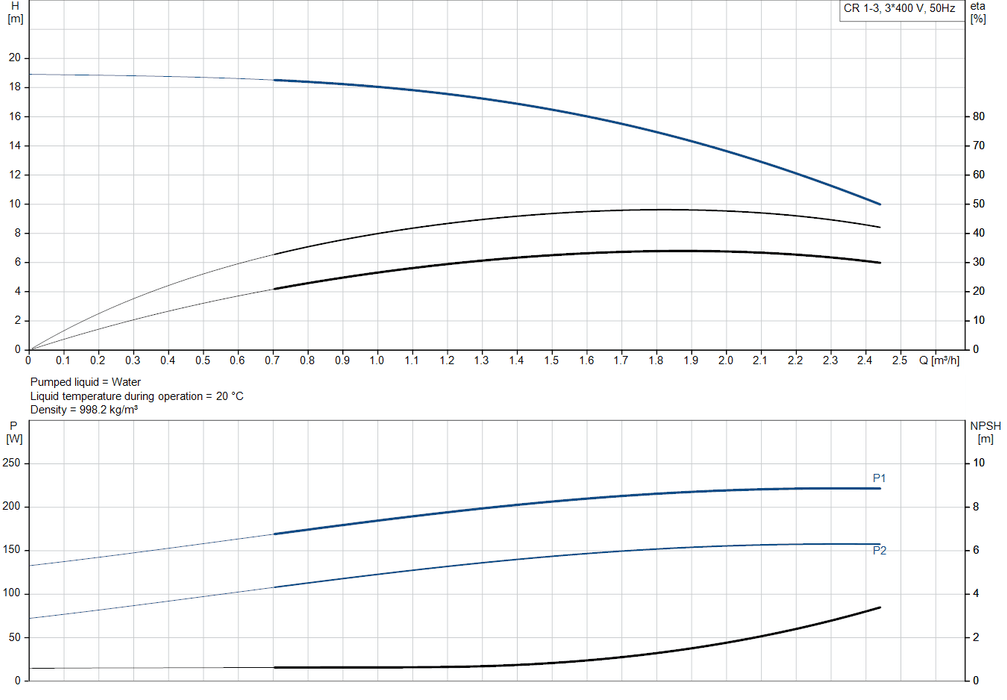

| Rated Flow | 1.8 m³/h |
| Rated Head | 15.6 m |
| Maximum Head | 19.2 m |
| Stages / Impellers | 3 / 3 |
| Pump Orientation | Vertical |
| Maximum Operating Pressure | 16 bar |
| Liquid Temperature Range | -20 °C to 120 °C |
| Shaft Seal | Single mechanical seal (HQQE) |

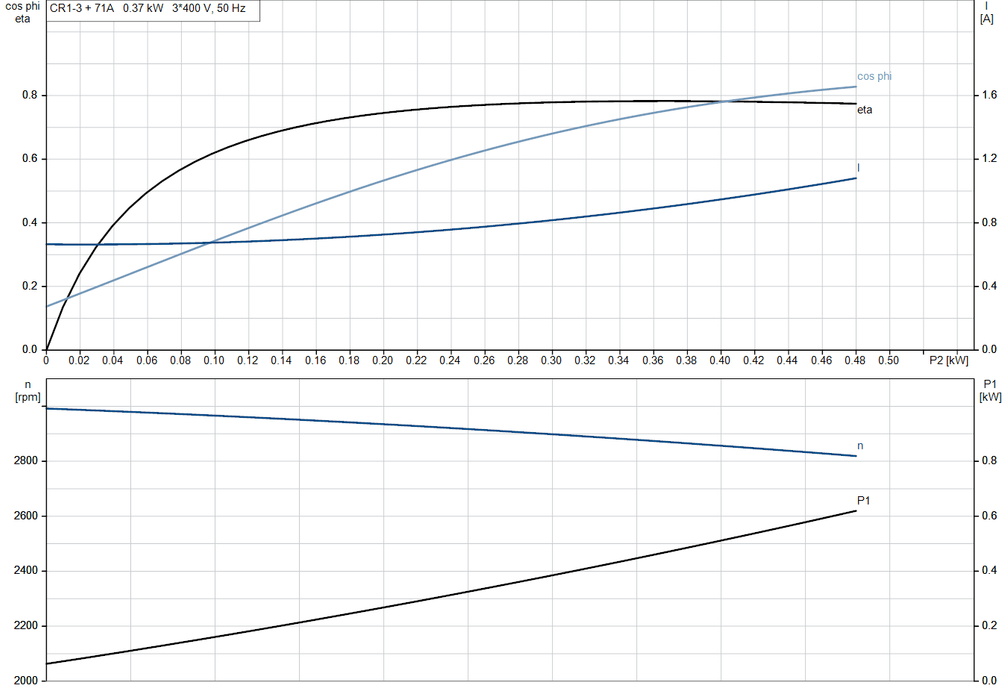

| Motor Type | 71A, 3-phase asynchronous, IE3 |
| Motor Power (P2) | 0.37 kW |
| Rated Speed | 2850–2880 rpm |
| Connection Type | Oval / Rp |
| Inlet / Outlet Size | 1 inch / 1 inch |
| Pressure Rating | PN 16 |
| Materials | Cast iron head and base; stainless steel wetted parts (EN 1.4301 / AISI 304) |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
| Net Weight | 18.5 kg |
| Country of Origin | TW |
| EAN Number | 5700396738031 |
| Price | AUD 1343 |
Documentation & Downloads
| CR 1-3 A-A-A-E-HQQE Datasheet | Download PDF |
