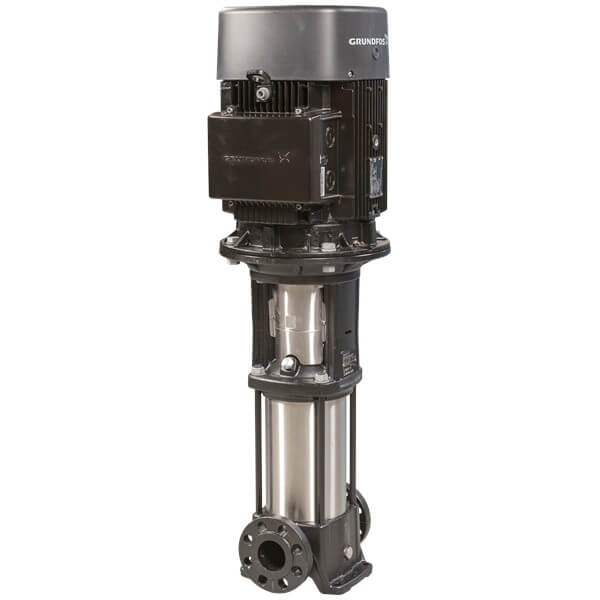

Grundfos CR 1-27 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 92901049 (1 x 220-230V)
by Grundfos
SKU 92901049
Original price
$2,536.19
-
Original price
$2,536.19
Original price
$2,536.19
$2,536.19
-
$2,536.19
Current price
$2,536.19
📢 For orders over $100, FREE Shipping Australia-wide
Vertical, multistage centrifugal inline pump with suction and discharge ports on the same level. The pump head and base are cast iron, with all other wetted parts in stainless steel (EN 1.4301). A cartridge shaft seal ensures high reliability and safe handling. Power transmission is via a rigid split coupling, and pipe connections use combined DIN / ANSI / JIS flanges. Fitted with a 1-phase, fan-cooled asynchronous motor.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and cooling
- Industrial water supply and wastewater
- Process water treatment and desalination
- Drinking water treatment and distribution
- Irrigation and community water supply
- Solar water solutions and agricultural applications
Key Specifications
| Product Model | CR 1-27 A-FGJ-A-E-HQQE |
| Product Number | 92901049 |
| Phase | 1 Phase |
| Voltage | 220–230 V |
| Frequency | 50 Hz |
| Motor Type | Fan-cooled asynchronous motor (IEC) |
| Motor Power (P2) | 1.5 kW |
| Rated Flow | 1.8 m³/h |
| Rated Head | 117.8 m |
| Maximum Head | 163.2 m |
| Stages / Impellers | 27 / 27 |
| Pump Orientation | Vertical (Inline) |
| Shaft Seal | Single mechanical seal (HQQE) |
| Maximum Operating Pressure | 25 bar |
| Liquid Temperature Range | -20 °C to 120 °C |
| Flanges | DIN / ANSI / JIS, DN 25/32 (1 1/4 inch), PN 25 |
| Material | Base & pump head: Cast iron; Wetted parts & impellers: Stainless steel (EN 1.4301 / AISI 304) |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
| Net Weight | 46.4 kg |
| Country of Origin | AU |
| Price | AUD 3689 |
Documentation & Downloads
| CR 1-27 A-FGJ-A-E-HQQE Datasheet | Download PDF |
