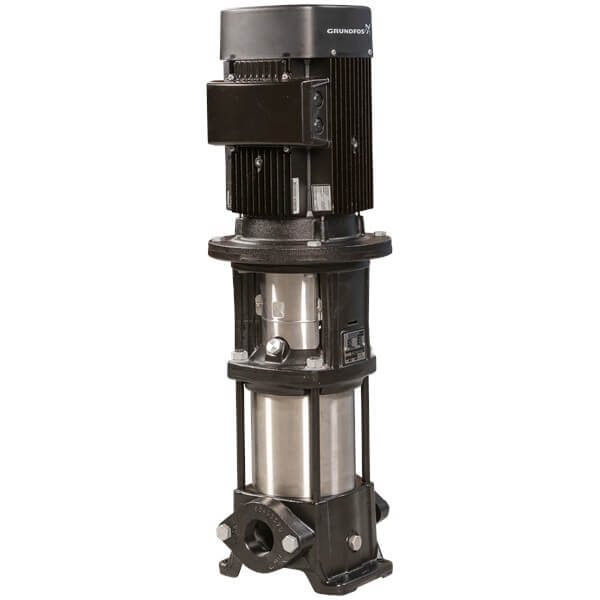

Grundfos CR 1-23 A-A-A-E-HQQE Vertical Multistage Centrifugal Pump – 96516193 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516193
Original price
$1,848.00
-
Original price
$1,848.00
Original price
$1,848.00
$1,848.00
-
$1,848.00
Current price
$1,848.00
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 1-23 A-A-A-E-HQQE is a vertical, non-self-priming, multistage, in-line centrifugal pump ideal for industrial, water treatment, irrigation, and solar water applications. With a cast iron pump head and base and all other wetted parts made of stainless steel (EN 1.4301), it delivers high efficiency, durability, and long-term performance in demanding water management tasks.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and cooling
- Industrial heating and cooling
- Industrial water supply and wastewater
- Industrial process water treatment
- Desalination and reverse osmosis systems
- Surface water intake and drinking water treatment
- Water distribution networks
- Irrigation, rotor & spray irrigation, and pivot systems
- Groundwater transfer and community water supply
- Solar water solutions, solar boosting systems, and digital water management
- Agriculture and livestock watering with solar solutions
Key Specifications
| Product Name | CR 1-23 A-A-A-E-HQQE |
| Product Number | 96516193 |
| Phase | 3 Phase |
| Phase / Volts | 3 × 220–240Δ / 380–415Y V |

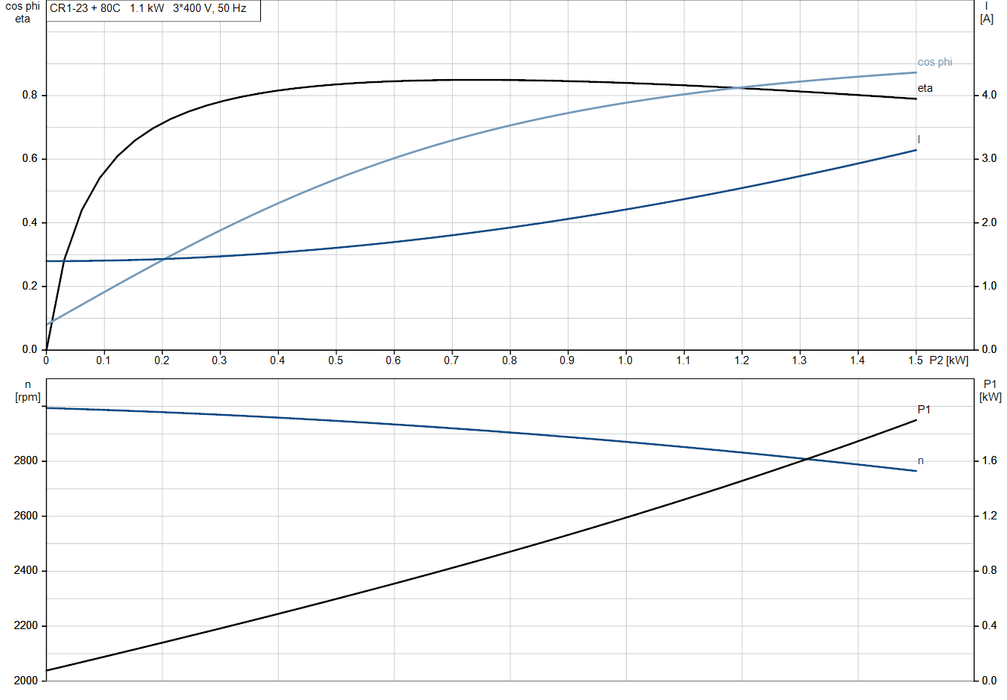

| Motor Type | 3-phase AC motor, IEC 80C, IE3 efficiency |
| Motor Power (P2) | 1.1 kW |

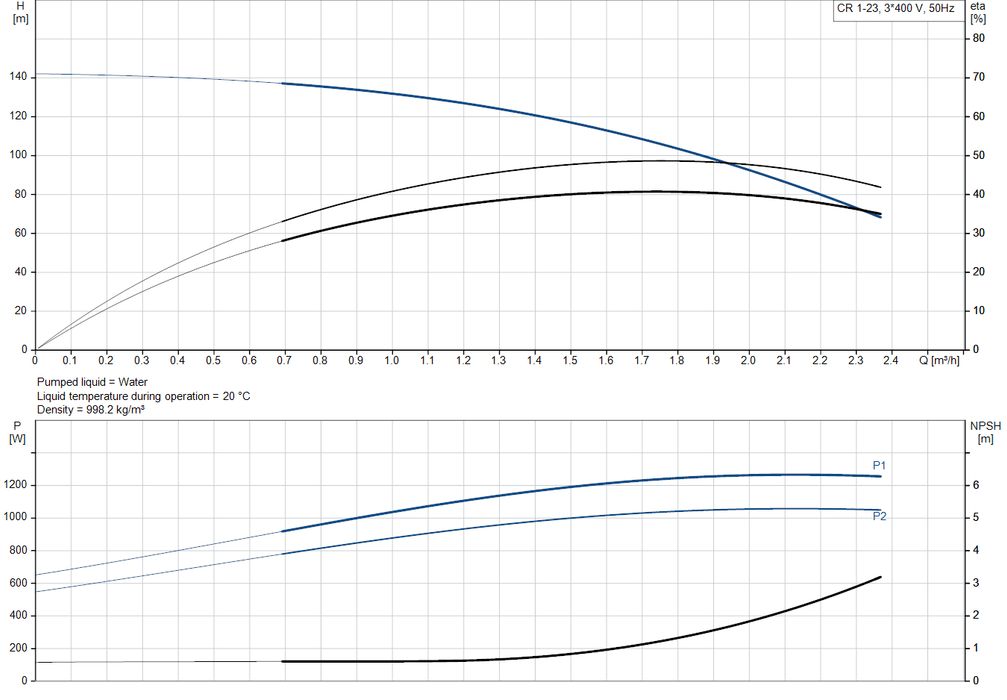

| Rated Flow | 1.8 m³/h |
| Rated Head | 104.5 m |
| Maximum Head | 141 m |
| Stages / Impellers | 23 / 23 |
| Pump Orientation | Vertical |
| Shaft Seal | Single mechanical seal (HQQE) |
| Maximum Operating Pressure | 16 bar |
| Liquid Temperature Range | -20 °C to 120 °C |
| Flanges / Connections | Oval / Rp, PN 16 |
| Inlet / Outlet Size | 1 inch / 1 inch |
| Material | Cast iron pump head & base, stainless steel (EN 1.4301) impellers |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
| Net Weight | 31.1 kg |
| Gross Weight | 35.2 kg |
| Country of Origin | Taiwan |
Documentation & Downloads
| CR 1-23 A-A-A-E-HQQE Datasheet | Download PDF |
