Grundfos CR 1-23 A-A-A-E-HQQE Vertical Multistage Centrifugal Pump – 92901385 (1 x 220-230V)
by Grundfos
SKU 92901385
Original price
$2,085.88
-
Original price
$2,085.88
Original price
$2,085.88
$2,085.88
-
$2,085.88
Current price
$2,085.88
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CR 1-23 A-A-A-E-HQQE is a vertical, multistage, non-self-priming in-line centrifugal pump with suction and discharge ports on the same level. The pump head and base are manufactured from cast iron, while all other wetted parts are in stainless steel (EN 1.4301) to provide high corrosion resistance. A cartridge-type HQQE mechanical shaft seal ensures high reliability, safe handling, and easy servicing. The pump is driven by a single-phase, fan-cooled asynchronous motor suitable for demanding commercial and industrial applications.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and cooling
- Industrial heating and cooling
- Industrial water supply and wastewater
- Industrial process water treatment
- Desalination and reverse osmosis water treatment
- Surface water intake and drinking water treatment
- Water distribution systems
- Irrigation, rotor & spray irrigation
- Groundwater transfer and pivot irrigation
- Community water supply
- Solar water solutions and solar boosting
- Agriculture and livestock watering with solar solutions
Key Specifications
| Product Name | CR 1-23 A-A-A-E-HQQE |
| Product Number | 92901385 |
| Pump Type | Vertical multistage centrifugal (inline) |
| Phase | 1 Phase |
| Volts | 1 × 220–230 V, 50 Hz |

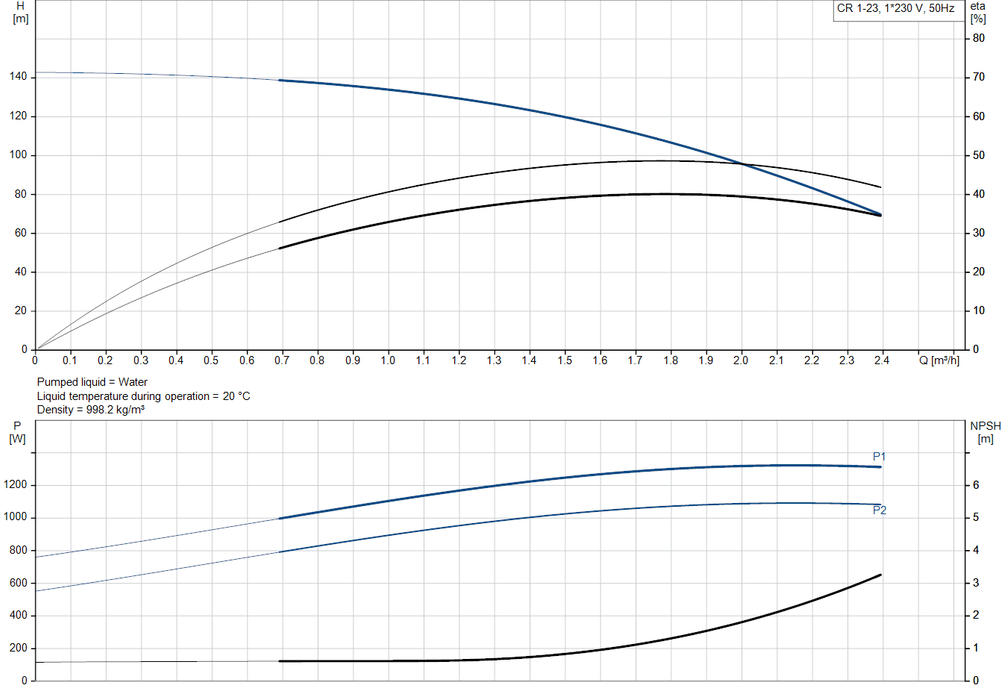

| Rated Flow | 1.8 m³/h |
| Rated Head | 99.7 m |
| Maximum Head | 138.7 m |
| Stages / Impellers | 23 / 23 |
| Maximum Operating Pressure | 16 bar |
| Liquid Temperature Range | -20 °C to 120 °C |

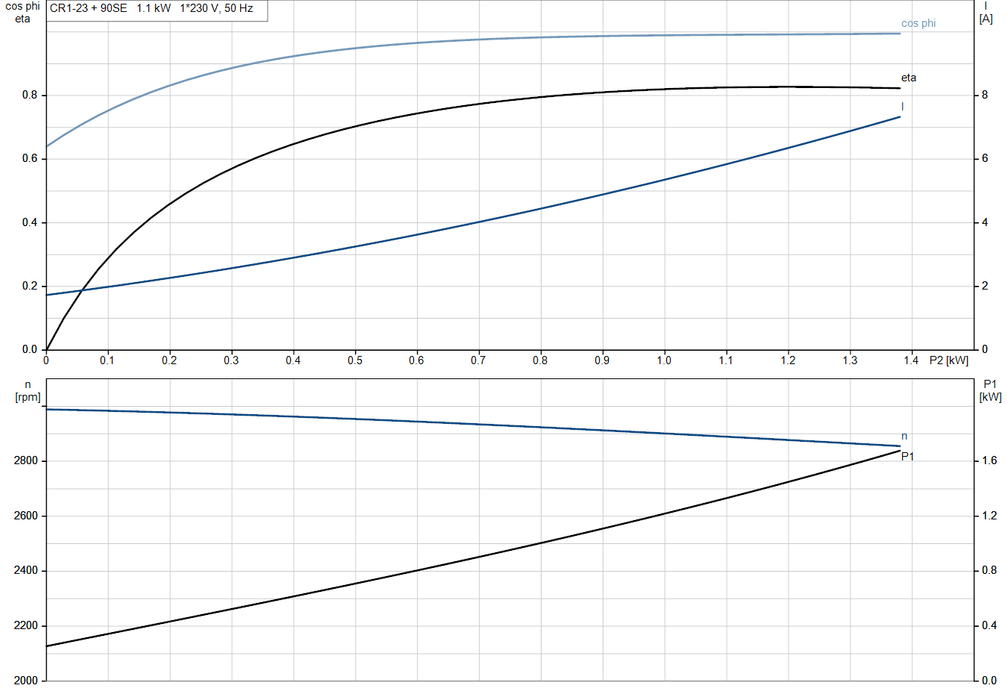

| Motor Type | 90SE, asynchronous, fan-cooled |
| Motor Power (P2) | 1.1 kW |
| Motor Efficiency Class | IE2 |
| Rated Speed | 2880–2890 rpm |
| Flanges / Connections | Oval / Rp, PN 16, inlet 1 inch, outlet 1 inch |
| Shaft Seal | Single mechanical seal (HQQE) |
| Material | Cast iron head and base; stainless steel wetted parts (EN 1.4301 / AISI 304) |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
| Net Weight | 38.8 kg |
| Country of Origin | AU |
Documentation & Downloads
| CR 1-23 A-A-A-E-HQQE Datasheet | Download PDF |
