Grundfos CR 1-13 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 96516249 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516249
Original price
$1,382.56
-
Original price
$1,382.56
Original price
$1,382.56
$1,382.56
-
$1,382.56
Current price
$1,382.56
📢 For orders over $100, FREE Shipping Australia-wide

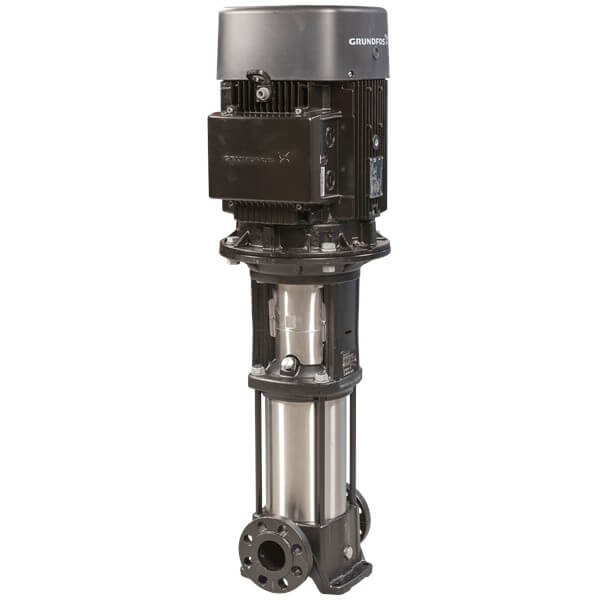

Vertical, multistage centrifugal pump with suction and discharge ports on the same level. The pump head and base are in cast iron – all other wetted parts are in stainless steel (EN 1.4301). Non-self-priming, inline centrifugal pump for installation in pipe systems and mounting on a foundation. Impellers and intermediate chambers are stainless steel. Shaft seal assembly per EN 12756. Power via cast iron split coupling. Pipe connection via DIN/ANSI/JIS flanges. Motor is 3-phase AC.
Suitable for
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Specifications
| Product Name | CR 1-13 A-FGJ-A-E-HQQE |
| Product No | 96516249 |
| EAN Number | 5700396739434 |
| Price | AUD 2011 |
| Pump Speed | 2864 rpm |
| Rated Flow | 1.8 m³/h |
| Rated Head | 61.3 m |
| Maximum Head | 80.7 m |
| Stages | 13 |
| Impellers | 13 |
| Reduced-Diameter Impellers | 0 |
| Low NPSH | N |
| Pump Orientation | Vertical |
| Shaft Seal Arrangement | Single |
| Primary Shaft Seal | HQQE |
| Code for Shaft Seal | HQQE |
| Approvals | CE, EAC, UKCA, SEPRO, RCM |
| Approvals for Drinking Water | WRAS, ACS |
| Curve Tolerance | ISO9906:2012 3B |
| Pump Version | A |
| Model | A |
| Materials - Type Key | A |
| Rubber Type | E (EPDM) |
| Base | Cast iron, EN 1561 EN-GJL-200, ASTM A48-25B |
| Impeller | Stainless steel, EN 1.4301, AISI 304 |
| Bearing | SIC |
| Maximum Ambient Temp | 60 °C |
| Maximum Operating Pressure | 25 bar |
| Max Pressure @ Temp | 25 bar / 120 °C, 25 bar / -20 °C |
| Pipework Connection | DIN / ANSI / JIS |
| Inlet Connection | DN 25/32 (1 1/4 inch) |
| Outlet Connection | DN 25/32 (1 1/4 inch) |
| Pressure Rating | PN 25 |
| Flange Rating Inlet | 250 lb |
| Flange Size for Motor | FT100 |
| Terminal Box Position | 6 |
| Motor Standard | IEC |
| Motor Type | 80A |
| Rated Power (P2) | 0.75 kW |
| Power Required by Pump | 0.75 kW |
| Mains Frequency | 50 Hz |

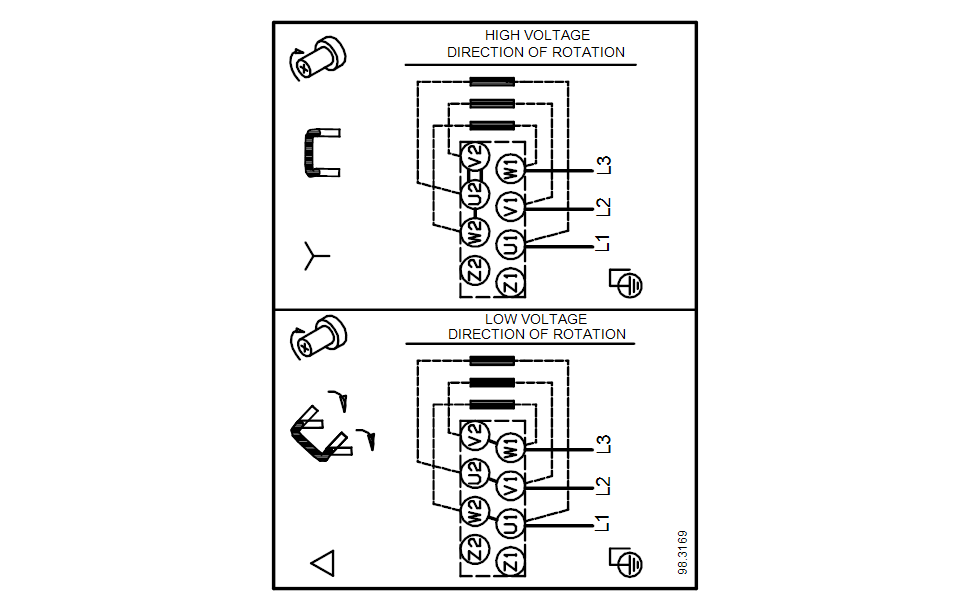

| Rated Voltage | 3 x 220-240D / 380-415Y V |
| Rated Current | 3.30 / 1.90 A |
| Starting Current | 580-620 % |
| Power Factor (Cos φ) | 0.81-0.71 |
| Rated Speed | 2840-2870 rpm |
| IE Efficiency Class | IE3 |
| Motor Efficiency Full Load | 80.7 % |
| Motor Efficiency 3/4 Load | 82.7-80.9 % |
| Motor Efficiency 1/2 Load | 81.7-77.9 % |
| Number of Poles | 2 |
| Enclosure Class | 55 Dust/Jetting |
| Insulation Class | F |
| Built-in Motor Protection | NONE |
| Motor No | 85U05104 |
| Frequency Converter | None |
| Minimum Efficiency Index (MEI) | 0.70 |
| Net Weight | 29.6 kg |
| Gross Weight | 32.4 kg |
| Shipping Volume | 0.074 m³ |
| Country of Origin | TW |
| Custom Tariff No. | 84137090621436561 |
| Product datasheet - CR 1-13 A-FGJ-A-E-HQQE | Download PDF |
