Grundfos CR 1-10 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 96516246 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516246
Original price
$1,226.50
-
Original price
$1,226.50
Original price
$1,226.50
$1,226.50
-
$1,226.50
Current price
$1,226.50
📢 For orders over $100, FREE Shipping Australia-wide

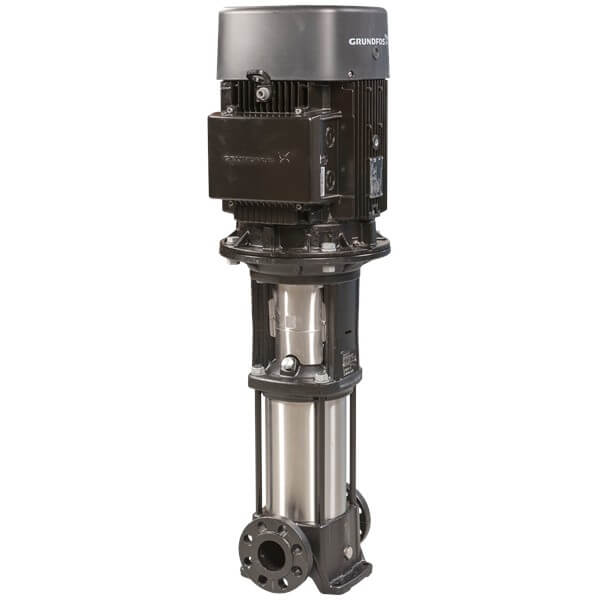

Vertical, non-self-priming, multistage, in-line centrifugal pump designed for installation in pipe systems and mounting on a foundation. The pump head and base are manufactured from cast iron, while all other wetted parts are stainless steel (EN 1.4301 / AISI 304). A cartridge shaft seal with EN 12756 assembly length ensures high reliability and ease of service. Power transmission is via a cast iron split coupling, and pipe connections are provided through combined DIN / ANSI / JIS flanges. The pump is driven by a high-efficiency IE3 3-phase AC motor.
Suitable Applications
- Commercial heating and air conditioning
- Commercial water pressure boosting
- District heating and cooling
- Industrial water supply and wastewater
- Industrial process water treatment
- Desalination and reverse osmosis systems
- Drinking water treatment and distribution
- Irrigation and agricultural water supply
- Solar water solutions and boosting systems
- Groundwater transfer and community water supply
Specifications
| Product Model | CR 1-10 A-FGJ-A-E-HQQE |
| Product Number | 96516246 |
| Pump Type | Vertical multistage centrifugal, in-line |
| Stages / Impellers | 10 / 10 |

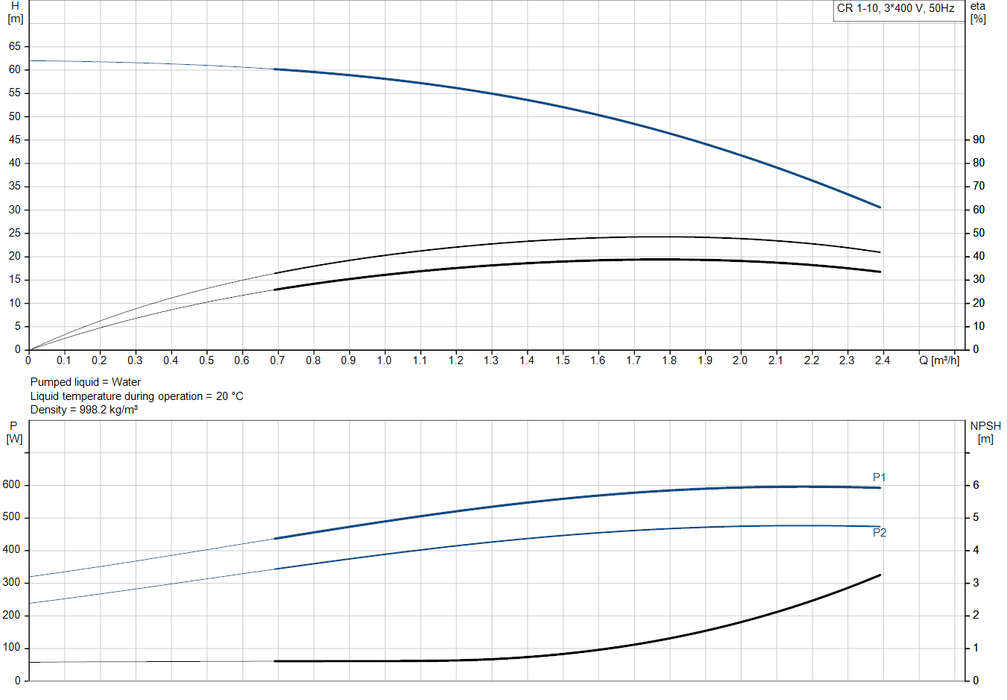

| Rated Flow | 1.8 m³/h |
| Rated Head | 47.1 m |
| Maximum Head | 62 m |
| Pump Speed | 2856 rpm |
| Pump Orientation | Vertical |
| Shaft Seal | HQQE (Single) |
| Curve Tolerance | ISO 9906:2012 3B |
| Approvals | CE, EAC, UKCA, SEPRO, RCM |
| Drinking Water Approvals | WRAS, ACS |
| Base Material | Cast iron (EN 1561 EN-GJL-200 / ASTM A48-25B) |
| Impeller Material | Stainless steel (EN 1.4301 / AISI 304) |
| Bearing | SIC |
| Rubber Components | EPDM |
| Maximum Operating Pressure | 25 bar |
| Maximum Ambient Temperature | 60 °C |
| Connection Type | DIN / ANSI / JIS |
| Inlet / Outlet Size | DN 25/32 (1 1/4 inch) |
| Pressure Rating | PN 25 |
| Flange Rating (Inlet) | 250 lb |
| Motor Flange Size | FT85 |
| Motor Standard / Type | IEC 71B, IE3 |

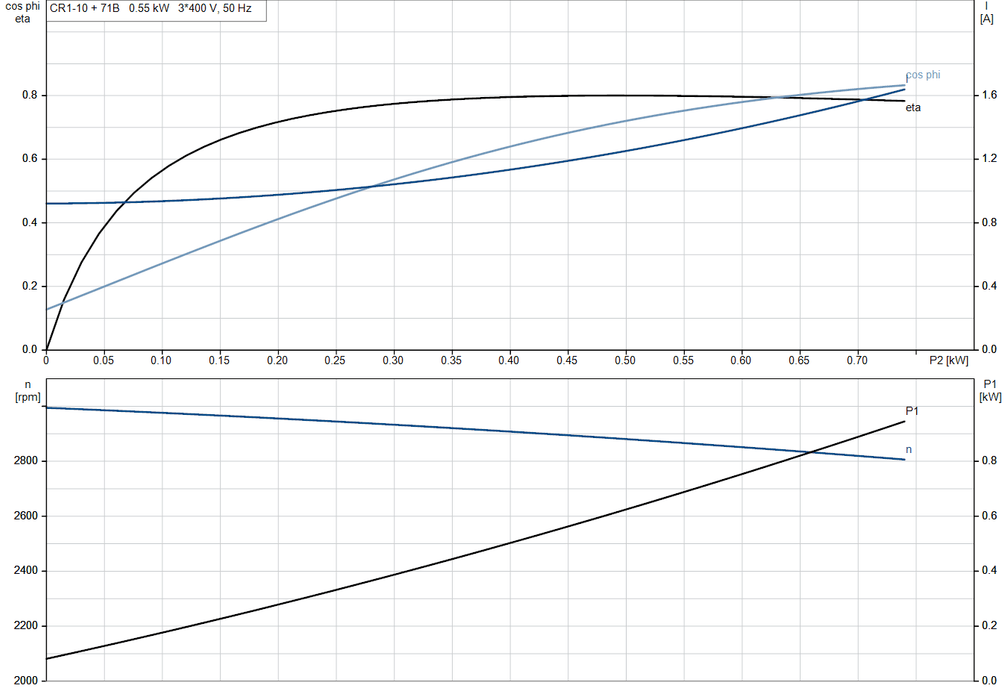

| Motor Power (P2) | 0.55 kW |

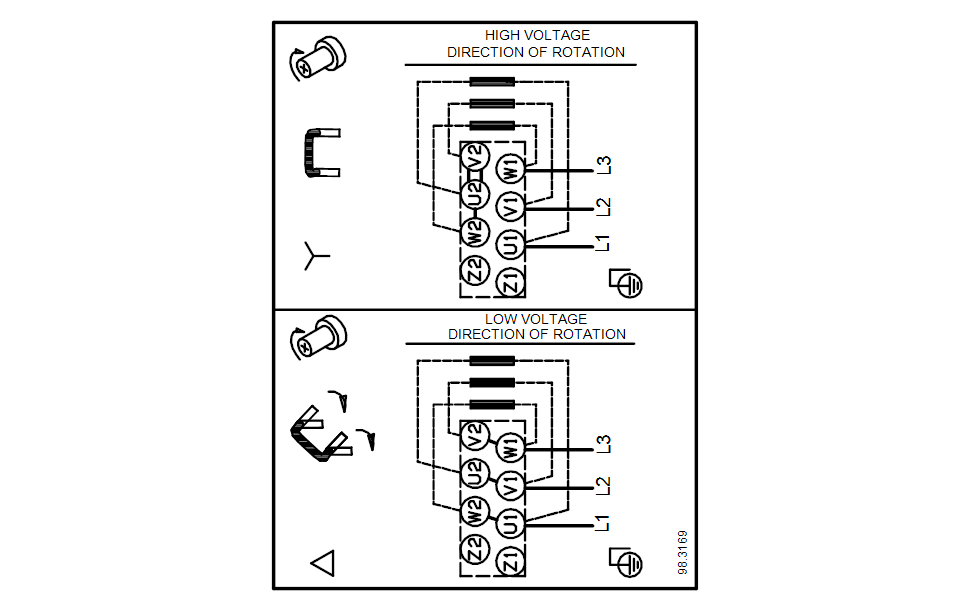

| Rated Voltage | 3 x 220-240 D / 380-415 Y V |
| Mains Frequency | 50 Hz |
| Rated Current | 2.50 / 1.44 A |
| Starting Current | 580-620 % |
| Cos φ - Power Factor | 0.80-0.70 |
| Rated Speed | 2830-2850 rpm |
| Motor Efficiency (Full Load) | 77.8 % |
| Motor Efficiency (3/4 Load) | 81.5-78.5 % |
| Motor Efficiency (1/2 Load) | 79.5-74.5 % |
| Number of Poles | 2 |
| Enclosure Class | IP55 (Dust/Jetting) |
| Insulation Class | F |
| Terminal Box Position | 6 |
| Built-in Motor Protection | None |
| Minimum Efficiency Index (MEI) | 0.70 |
| Net Weight | 25.5 kg |
| Gross Weight | 28.2 kg |
| Shipping Volume | 0.063 m³ |
| Country of Origin | TW |
| Custom Tariff Number | 84137090621436561 |
Documentation & Downloads
| Product Data Sheet | Download PDF |
