Grundfos SQ 7-40 N Submersible Pump – 96160434
by Grundfos
SKU 96160434
Original price
$1,980.62
-
Original price
$1,980.62
Original price
$1,980.62
$1,980.62
-
$1,980.62
Current price
$1,980.62
📢 For orders over $100, FREE Shipping Australia-wide

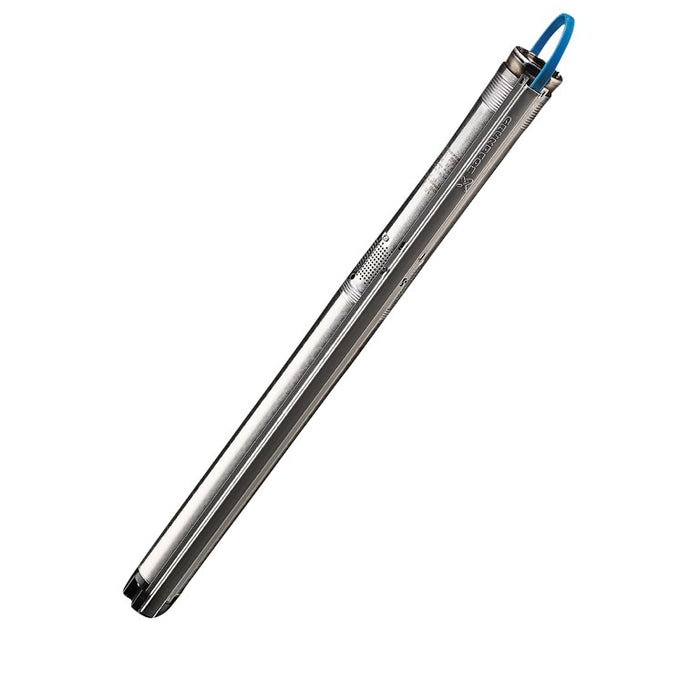

The Grundfos SQ 7-40 N is a 3" multi-stage submersible pump engineered for domestic water supply, irrigation, tank transfer, and environmental applications. It features durable floating impellers supported by tungsten carbide/ceramic bearings, ensuring long service life and reliable performance. The pump includes soft start functionality and integrated protection against dry-running, upthrust, overvoltage, undervoltage, overload, and overtemperature.
Key Features & Applications:
- Domestic groundwater intake
- Domestic water pressure boosting
- Groundwater extraction
- Submersible pump installations
Product Details
| Product name | SQ 7-40 N |
| Product number | 96160434 |
| EAN | 5700398875338 |
| Pump number | 96080736 |
| Motor number | 96160860 |
| Model | D |
| Non-return valve | Built-in |
| Sales region | Australia |

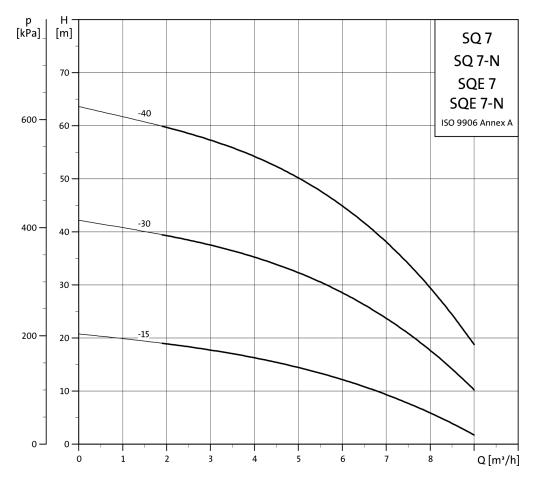

Performance
| Rated flow | 7 m³/h |
| Rated head | 37 m |
| Number of stages | 3 |
| Rated speed | 10,700 rpm |
| Curve tolerance | ISO 9906:2012 3B |
Liquid
| Pumped liquid | Water |
| Liquid temperature range | 0°C to +35°C |
| Reference temperature | 20°C |
| Density | 998.2 kg/m³ |
Materials
| Pump | Stainless steel (EN 1.4401 / AISI 316) |
| Impeller | Composite (ZYTEL 70G30 HSLR PA6.6-GF30) |
| Motor | Stainless steel (DIN W.-Nr. 1.4401 / AISI 316) |
Installation
| Maximum operating pressure | 15 bar |
| Outlet connection | Rp 1 1/2 |

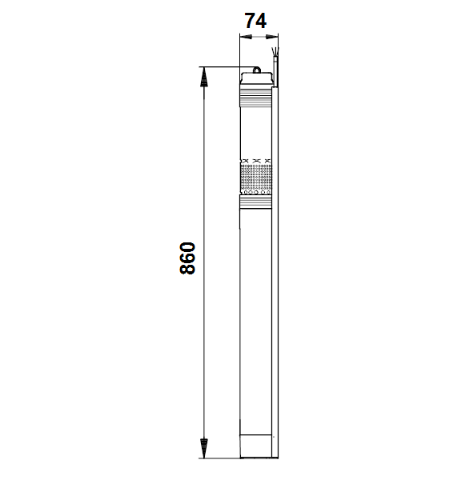

| Minimum borehole diameter | 76 mm |
Electrical Data
| Motor type | MS3 N |
| Power input (P1) | 2.05 kW |
| Rated power (P2) | 1.55 kW |
| Pump required power (P2) | 1.31 kW |
| Supply voltage | 1 × 200–240 V |
| Frequency | 50 Hz |
| Rated current | 11.2 A |
| Power factor | 1.00 |
| Start method | Direct-on-line |
| Enclosure class | IP68 |
| Insulation class | F |
| Motor protection | Built-in |
| Thermal protection | Internal |
| Cable length | 1.5 m |
| Controls | CU 300 / CU 301 (no communication) |
Approvals
| Certifications | CE, PCBC, RCM, EAC, CN RoHS Exempt, Morocco, UKCA, SEPRO |
Weight & Shipping
| Net weight | 6.1 kg |
| Gross weight | 6.8 kg |
| Shipping volume | 0.0104 m³ |
Documentation & Downloads:
| Document | Download |
|---|---|
| SQ, SQE – Installation & Operating Instructions | 📄 Download PDF |
| SQ, SQE, SQFlex – Safety Instructions | 📄 Download PDF |
| SQ, SQE, SQE-NE – Data Booklet | 📄 Download PDF |
| SQ, SQE – Service Kit Catalogue | 📄 Download PDF |
