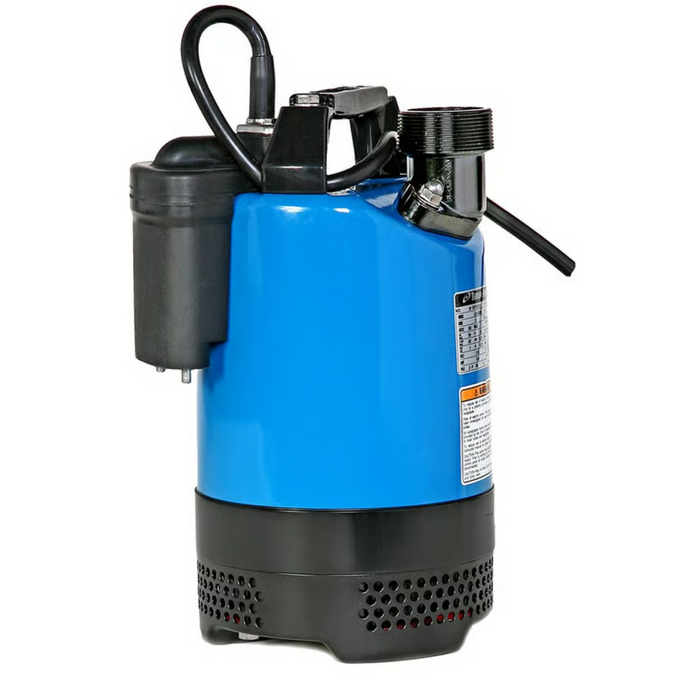

Tsurumi LB-800A-62 (115V) Auto Electric Submersible Pump – LB-800A
📢 For orders over $100, FREE Shipping Australia-wide
Warranty: Manufacturer’s Warranty
The Tsurumi LB-800A is a high‑capacity submersible dewatering pump designed for construction and rental applications. Built with durability in mind, it features a powerful 1 HP motor, wear‑resistant semi‑vortex urethane impeller, and robust cast iron/aluminum housing. The slimline design fits into an 8″ pipe for easy transport and confined area installation. Top discharge maximizes motor cooling efficiency, enabling continuous duty operation at low levels and extended dry‑run capability. Dual silicon carbide mechanical seal faces and a patented oil lifter ensure longevity. The automatic electrode‑based level control turns the pump on and off without dry‑running. Discharge size is 2″ straight male NPT, 50 ft cable, maximum solids handling 0.236″, automatic‑electrode operation, single‑phase, 115 V.
Suitable Applications
- Residential, commercial, industrial wastewater and site drainage
- Decorative waterfalls and fountains
- Raw water supply from lakes or rivers
- Sediment removal from small sumps or basins
Key Specifications
| Product Name | LB-800A-62 (115V) |
| Product Number (SKU) | LB-800A |
| Pump Type | Single‑phase automatic submersible dewatering pump with semi‑vortex impeller and electrode level control |
| Discharge Size | 2″ |
| Discharge Type | Straight Male NPT |
| Horse Power | 1 HP |
| Cable Length | 50 ft |
| Max Solids Handling | 0.236″ |
| Operation Mode | Automatic – Electrode |
| Phase | Single |
| Voltage | 115 V |
| Impeller Material | Urethane (wear‑resistant) |
| Mechanical Seal | Dual silicon carbide |
| Housing Material | Cast iron / aluminum |
| Special Features | Slimline fits 8″ pipe, top discharge for cooling, extended dry‑run capability, electrode auto control with relay |
| Pump Weight | 36‑38 lbs |
| Dimensions (Dia x H) | 8-3/4 x 13-7/16 in |
| Continuous Running Water Level | 6-3/4 in |

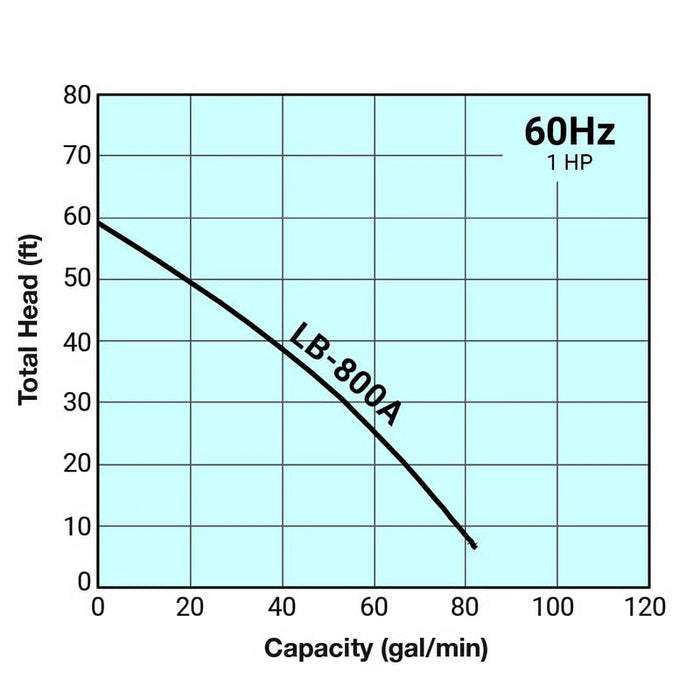

| Shut‑Off Head | Up to 59 ft |
| Voltage/Amp | 115/9.6 A |
| Patented Feature | Oil lifter for seal lubrication |
Documentation & Downloads
| LB-800A-62 Data Sheet | View Product Page (PDF available upon request) |
| LB-800A-62 Parts List | View Product Page (Parts list available upon request) |
| LB Series Overhaul Manual (Includes operation instructions) | Download |
| LB Series Operation Manual | Download |
