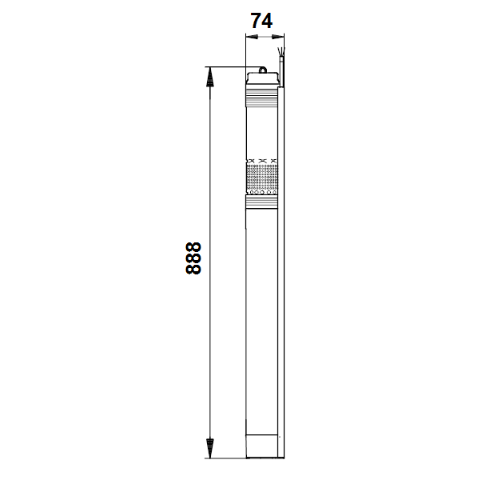

Grundfos SQE 3-95 N Submersible Pump – 96160457
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos SQE 3-95 N is a 3" multi-stage submersible pump designed for domestic water supply, tank liquid transfer, irrigation, and environmental applications. It features “floating” impellers, each supported by a tungsten carbide/ceramic bearing for long service life. The pump provides soft starting and integrated protection against dry-running, upthrust, overvoltage, undervoltage, overload, and overtemperature.
The motor is a single-phase permanent magnet rotor type (MSE3-N), delivering high efficiency across a wide load range and fitted with a replaceable end cover with socket. Variable-speed operation is possible when paired with CU300 or CU301 controllers.
Suitable for:
- Domestic ground water intake
- Domestic water pressure boosting
- Ground water intake
- Submersible pumps with variable speed motor
Key Features:
- Floating impellers with tungsten carbide/ceramic bearings
- Soft starting
- Protections: dry-running, upthrust, overvoltage/undervoltage, overload, overtemperature
- Stainless steel construction (AISI 316 / EN 1.4401)
- Built-in non-return valve
- Variable speed operation with CU300/CU301
- Enclosure class IP68; Insulation class F
- Minimum borehole diameter: 76 mm
- Maximum operating pressure: 15 bar
Liquid:
| Parameter | Value |
|---|---|
| Pumped liquid | Water |
| Liquid temperature range | 0 – 35 °C (selected: 20 °C) |
| Density | 998.2 kg/m³ |
Technical Specifications:
| Specification | Value |
|---|---|
| Product name / No. | SQE 3-95 N / 96160457 |
| EAN | 5700398879091 |
| Pump speed (basis) | 10700 rpm |
| Rated flow | 3 m³/h |
| Rated head | 98 m |
| Stages | 7 |
| Curve tolerance | ISO9906:2012 3B |
| Approvals | CE, PCBC, RCM, EAC, CN RoHS Exempt, Morocco, UKCA, SEPRO |
| Maximum operating pressure | 15 bar |
| Pump outlet | RP1 1/4 |
| Minimum borehole diameter | 76 mm |
| Built-in non-return valve | Yes |
| Shipping volume | 0.0107 m³ |
| Net / Gross weight | 6.4 kg / 6.9 kg |
| Pump No. / Model | 96080744 / C |
| Sales region | Australia |
Materials:
| Component | Material | Standard |
|---|---|---|
| Pump | Stainless steel | EN 1.4401 / AISI 316 |
| Impeller | Composite | ZYTEL 70G30 HSLR PA6.6-GF30 |
| Motor | Stainless steel | DIN W.-Nr. 1.4401 / AISI 316 |
Electrical Data:
| Parameter | Value |
|---|---|
| Motor type | MSE3-N (single-phase PM rotor) |
| Power input (P1) | 2.05 kW |
| Rated power (P2) | 1.55 kW (pump requires 1.52 kW) |
| Mains frequency | 50 Hz |
| Rated voltage | 1 × 200–240 V |
| Rated current | 11.5 A |
| Power factor | 1.00 |
| Rated speed | 10700 rpm |
| Start method | Direct-on-line (DOL) |
| Enclosure class / Insulation class | IP68 / F |
| Built-in motor protection / Thermal protection | Yes / Internal |
| Cable length (cable kit) | 1.5 m (Y) |
| Motor No. | 96195296 |
| Controls | CU300/CU301 – communication possible |
Documentation & Downloads:
| Document | Download |
|---|---|
| SQ, SQE (I & O instructions) | |
| SQ, SQE, SQFlex (Safety instructions) | |
| SQ, SQE, SQE-NE – submersible pumps (Data booklet) | |
| SQ, SQE (Service Kit Catalogue) | |
| SQ, SQE, SQ-N, MS 3 MSE 3, Model A (Service Instruction) | |
| SQ, SQE, SQ-N Model B, MS 3, MSE 3 Model B (Service Instructions) |
