Grundfos Hydro MPC-E 2 CRIE 15-1 Booster Set – 99726124
📢 For orders over $100, FREE Shipping Australia-wide

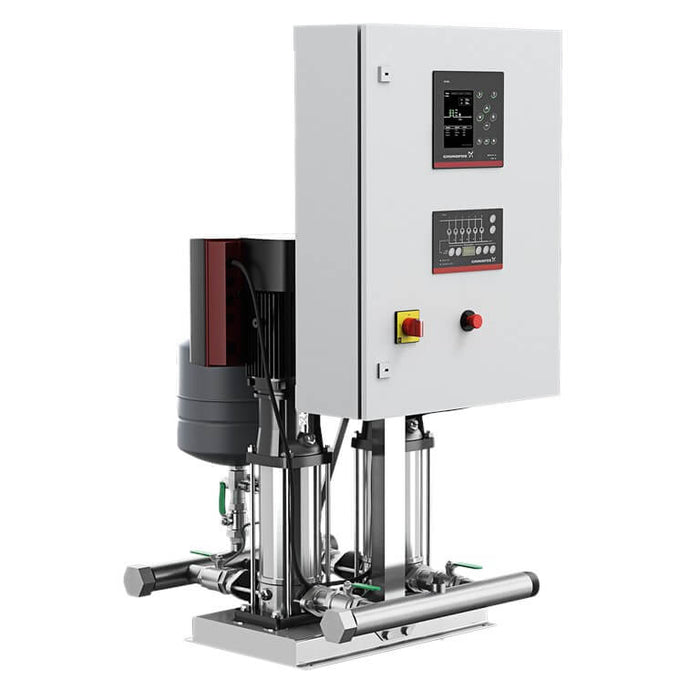

Grundfos Hydro MPC-E is a complete pressure boosting system with 2 parallel‑connected, frequency‑controlled CRIE 15‑1 multistage centrifugal pumps mounted on a common base frame. All wetted parts are made of stainless steel EN 1.4301 (CRI). The pumps are equipped with cartridge shaft seals and driven by Grundfos MGE IE5 premium‑efficiency motors (P2 = 1.5 kW, IP54, 3 x 380‑415 V, 50/60 Hz). The unit delivers a rated flow of 41 m³/h and a maximum flow of 56 m³/h with a rated head of 15 m and maximum head of 20 m. The inlet and outlet manifolds are made of stainless steel EN 1.4571/AISI 316 Ti with DN80 connections (PN 16), and include non‑return valves, isolating valves, pressure gauge, pressure transmitter, and a diaphragm tank (18 l). The system is controlled by a Grundfos CU 352 pump controller (IP54) with constant‑pressure PID control, automatic cascade operation, pump changeover, and monitoring functions.
Suitable Applications
- Commercial heating
- Commercial water pressure boosting
- District heating
- District cooling
- Wash and clean
- Industrial heating
- Cooling
- Industrial water supply
- Desalination
- Drinking water treatment
- Water distribution
- Irrigation
- Community water supply
- Wastewater treatment
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
- Booster systems with frequency-controlled pumps
Key Specifications
| Product Name | Hydro MPC-E 2 CRIE 15-1 |
| Product Number | 99726124 |
| EAN | 5713833449001 |
| Pump Type | Booster system with 2 parallel‑connected frequency‑controlled CRIE multistage centrifugal pumps |
| Number of Pumps | 2 |
| Rated Flow | 41 m³/h |
| Max. Flow | 56 m³/h |
| Rated Head | 15 m |
| Max. Head | 20 m |
| Main Pump Name | CRIE 15-1 |
| Main Pump Product No | 99522919 |
| Liquid Temperature Range | 5 .. 60 °C |
| Maximum Operating Pressure | 16 bar |
| Pressure Rating | PN 16 |
| Connections | Manifold inlet/outlet: DN80 |
| Manifold Material | EN 1.4571 / AISI 316 Ti |
| Earth Connection | N, PE |
| System Design | F |
| Range of Ambient Temperature | 5 .. 40 °C |
| Motor Power (P2) | 1.5 kW |
| Voltage | 3 x 380-415 V |
| Frequency | 50 / 60 Hz |
| Rated Current of System | 6.8 A |
| Number of Phases (Main Pump) | 3 |
| Start Method | Variable frequency drives |
| Enclosure Class | IP54 |
| Radio Interference Suppression | EMC DIRECTIVE(2014/30/EU) |
| Control Type | E (CU 352) |
| Dry Running Protection, Mechanical | NONE |
| Tank Volume | 18 l |
| Diaphragm Tank | Yes |
| Net / Gross Weight | 286 kg / 296 kg |
| Sales Region | Australia |
| Config. file no. pump | 98500772 |
| Config. file no. Control MPC | 98271946 |
| Config. file no. Hydro MPC | 98272012 |
Documentation & Downloads
| Mounting of sensor for Hydro Booster (Quick Guide) | Download |
| Hydro MPC (Safety instructions) | Download |
| Hydro MPC (Installation and operating instructions) | Download |
| MGE (Data sheet) | Download |
