9004 30m Oil and Chemical-Resistant CPE Float Switch - FSW-12413
by Matelec
SKU FSW-12413
Original price
$251.68
-
Original price
$251.68
Original price
$251.68
$251.68
-
$251.68
Current price
$251.68
📢 For orders over $100, FREE Shipping Australia-wide
The 9004 Series Float Switches feature a robust, chemical and oil-resistant polypropylene housing with a 'sliding detent action' to prevent wave induced oscillation, and a maximum 10 A current rating.
Key Features
- Smooth, robust polypropylene switch housing reduces adhesion of foreign materials
- 'Sliding detent action' obviates wave induced oscillation, maintaining consistency in switching level accuracy
- Higher current rating of up to 10 Amps is ideal for heavier duty applications
- Chlorinated Polyethylene (CPE) cable construction
Key Specifications
| Liquid Temperature | Min 5°C (41°F) – Max 60°C (140°F) |
| Protection | IP68 @ 9m (30ft), corrosion resistant |
| Contact Type | Mechanically activated, snap action N/O contacts |
| Pumping Range | 20-90 cm (8-36 inches) |
| Max Voltage | 240Vac 50/60Hz |
| Max Run Current | 10 Amp (COS 0) |
| Cable Material | Chlorinated Polyethylene (CPE) |
| Cable Size | Ø8mm / 2 x 0.75mm² |
| Cable Length | 30m |
| Units per Carton | 6 |
| Housing Material | Polypropylene |
Setup
Secure cable at appropriate height to ensure desired switch levels are achieved.

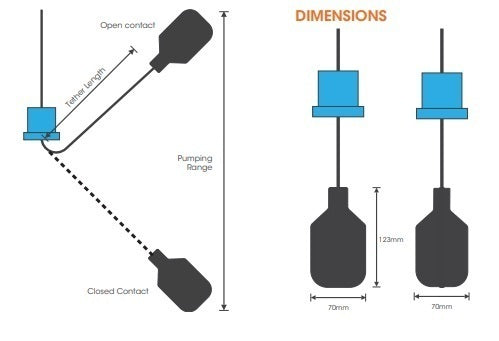

The differential between switching 'On/Off' or 'Off/On' can be adjusted by moving the cable weight position relative to the float switch. The further the weight is situated from the float switch, the greater the switching differential.
Documentation & Downloads
| Product Datasheet | Download |
