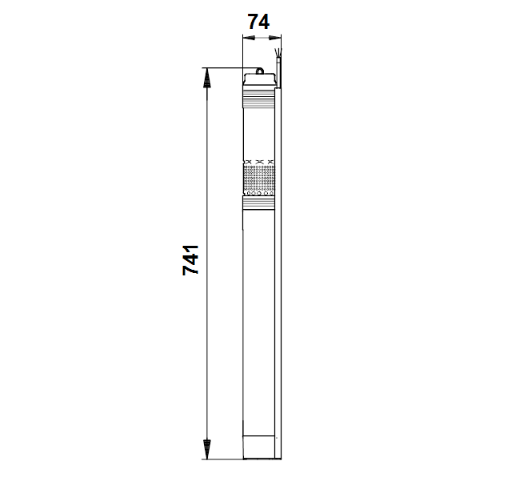

Grundfos SQ 3-40 N Submersible Pump – 96160420
by Grundfos
SKU 96160420
Original price
$1,093.54
-
Original price
$1,093.54
Original price
$1,093.54
$1,093.54
-
$1,093.54
Current price
$1,093.54
📢 For orders over $100, FREE Shipping Australia-wide
3" multi-stage, submersible pump designed for domestic water supply, liquid transfer in tanks, irrigation and environmental applications. The pump has "floating" impellers, each with its own tungsten carbide/ceramic bearing.
The pump features soft starting and protection against dry-running, upthrust, overvoltage, undervoltage, overload and overtemperature.
The motor is a single-phase motor of the permanent magnet rotor type ensuring optimum efficiency within a wide load range. The motor is fitted with a replaceable end cover with socket.
Suitable for:
- Domestic ground water intake
- Domestic water pressure boosting
- Ground water intake
- Submersible pumps
Specifications:
| Category | Details |
|---|---|
| Product |
Product name: SQ 3-40 N Product No: 96160420 EAN: 5700398875161 Pump No: 96080722 Motor No: 96160858 Model: C Valve: Pump with built-in non-return valve Sales region: Australia |
| Performance |
Rated flow: 3 m³/h Rated head: 42 m Stages: 3 Pump speed (data basis): 10700 rpm Curve tolerance: ISO9906:2012 3B |
| Liquid |
Pumped liquid: Water Liquid temperature range: 0 .. 35 °C Selected liquid temperature: 20 °C Density: 998.2 kg/m³ |
| Materials |
Pump: Stainless steel (EN 1.4401 / AISI 316) Impeller: Composite (ZYTEL 70G30 HSLR PA6.6-GF30) Motor: Stainless steel (DIN W.-Nr. 1.4401 / AISI 316) |
| Installation |
Maximum operating pressure: 15 bar Pump outlet: RP 1 1/4 Minimum borehole diameter: 76 mm |
| Electrical data |
Motor type: MS3 N Power input (P1): 1 kW Rated power (P2): 0.7 kW Power (P2) required by pump: 0.68 kW Mains frequency: 50 Hz Rated voltage: 1 x 200-240 V Rated current: 5.3 A Power factor: 1.00 Rated speed: 10700 rpm Start method: Direct-on-line Enclosure class: IP68 Insulation class: F Built-in motor protection: Yes Thermal protection: Internal Length of cable: 1.5 m Controls: CU 300 / CU 301 (no communication possible) |
| Approvals | CE, PCBC, RCM, EAC, CN Rohs Exempt, Morocco, UKCA, SEPRO |
| Weight & shipping |
Net weight: 4.8 kg Gross weight: 5.5 kg Shipping volume: 0.0092 m³ |
Documentation & Downloads:
| Document | Download |
|---|---|
| SQ, SQE (I & O instructions) | 📄 Download PDF |
| SQ, SQE, SQFlex (Safety instructions) | 📄 Download PDF |
| SQ, SQE, SQE-NE - submersible pumps (Data booklet) | 📄 Download PDF |
| SQ, SQE (Service Kit Catalogue) | 📄 Download PDF |
| SQ, SQE, SQ-N, MS 3 MSE 3, Model A (Service Instruction) | 📄 Download PDF |
| SQ, SQE, SQ-N Model B, MS 3, MSE 3 Model B (Service Instructions) | 📄 Download PDF |
