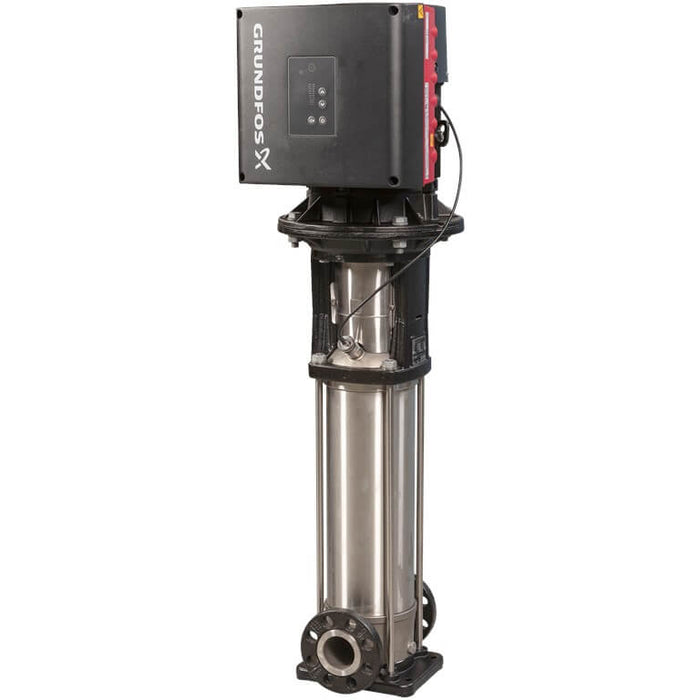

Grundfos CRNE 20-8 NV-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 92961599
by Grundfos
SKU 92961599
Original price
$17,569.06
-
Original price
$17,569.06
Original price
$17,569.06
$17,569.06
-
$17,569.06
Current price
$17,569.06
📢 For orders over $100, FREE Shipping Australia-wide
The CRNE 20-8 NV-FGJ-A-V-HQQV is a vertical, non-self-priming, multistage inline centrifugal pump with integrated frequency converter. All wetted parts are high-grade stainless steel (EN 1.4401 / AISI 316). It features a cartridge shaft seal, DIN/ANSI/JIS flange connections, and a permanent-magnet synchronous motor with built-in frequency converter and PI controller. The motor efficiency is classified as IE5, offering continuously variable speed control and advanced digital integration.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Groundwater transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRNE 20-8 NV-FGJ-A-V-HQQV |
| Product Number | 92961599 |
| Pump Type | Vertical multistage centrifugal with integrated frequency converter |
| Rated Flow | 25.71 m³/h |
| Rated Head | 142.4 m |
| Speed (Pump Data) | 3600 rpm |
| Shaft Seal | HQQV |
| Liquid Temperature Range | -20 to 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DIN / ANSI / JIS flanges, DN 50 (2") PN 25 |
| Base Material | Stainless steel EN 1.4408 / AISI 316 |
| Impeller Material | Stainless steel EN 1.4401 / AISI 316 |
| Bearing | SiC |
| Motor Power (P2) | 15.0 kW |
| Voltage | 3 × 380–480 V |
| Frequency | 50 / 60 Hz |
| Rated Current | 26.7–22.0 A |
| Motor Efficiency Class | IE5 |
| Motor Efficiency (Full Load) | 92.8 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 153 / 205 kg |
| Shipping Volume | 0.819 m³ |
| Approvals | CE, UKCA, cURus, SEPRO, WRAS |
| Country of Origin | AU |
Documentation & Downloads
| Product Datasheet — CRNE 20-8 NV-FGJ-A-V-HQQV | Download |
