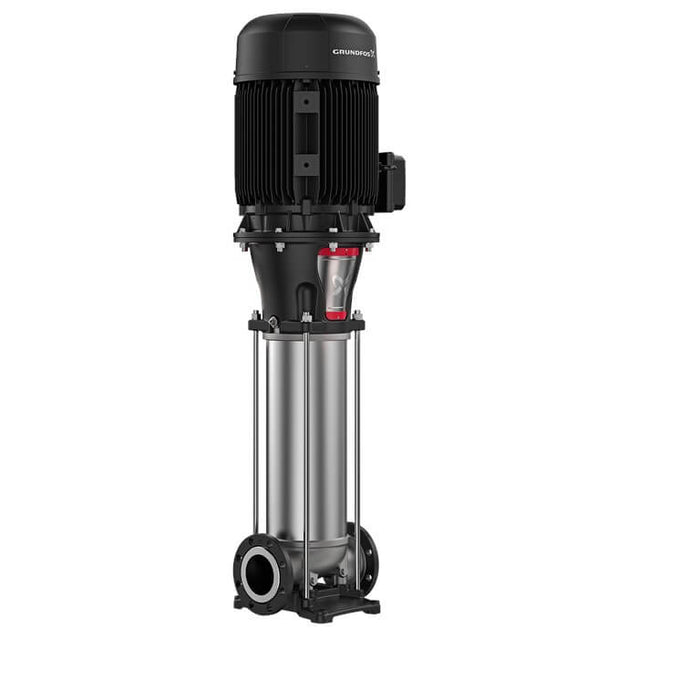

Grundfos CRN 95-1-1 A-F-A-V-HQQV Vertical Multistage Centrifugal Pump – 99141773 (3 x 380-480D V)
by Grundfos
SKU 99141773
Original price
$8,978.06
-
Original price
$8,978.06
Original price
$8,978.06
$8,978.06
-
$8,978.06
Current price
$8,978.06
📢 For orders over $100, FREE Shipping Australia-wide
The CRN 95-1-1 A-F-A-V-HQQV is a vertical, non-self-priming, multistage inline centrifugal pump designed for installation in pipe systems and mounting on a foundation. All wetted parts are high-grade stainless steel (EN 1.4401 / AISI 316). It features a HQQV shaft seal, DIN flanges, and a 3-phase IEC motor.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Groundwater transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 95-1-1 A-F-A-V-HQQV |
| Product Number | 99141773 |
| Pump Type | Vertical multistage centrifugal (inline, non-self-priming) |
| Rated Flow | 95 m³/h |
| Rated Head | 16 m |
| Speed (Pump Data) | 2938 rpm |
| Shaft Seal | HQQV |
| Liquid Temperature Range | -20 to 90 °C |
| Maximum Operating Pressure | 16 bar |
| Connections | DIN flanges, DN 100 PN 16 |
| Base Material | Stainless steel EN 1.4408 / ASTM A351 CF8M |
| Impeller Material | Stainless steel EN 1.4401 / AISI 316 |
| Bearing | WC/WC + Graflon support bearing |
| Motor Power (P2) | 5.5 kW |
| Voltage | 3 × 380–480D V |
| Frequency | 50 Hz |
| Rated Current | 10.6–9.30 A |
| Motor Efficiency Class | NEMA Premium / IE3 (60 Hz) |
| Motor Efficiency (Full Load) | 89.5 % |
| Enclosure Class | IP55 Dust/Jetting |
| Insulation Class | F |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 135 / 178 kg |
| Shipping Volume | 0.611 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, ACS |
| Country of Origin | DK |
Documentation & Downloads
| Product Datasheet — CRN 95-1-1 A-F-A-V-HQQV | Download |
