Grundfos CRN 5-29 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96514171 (3 x 380-415DV)
by Grundfos
SKU 96514171
Original price
$5,034.56
-
Original price
$5,034.56
Original price
$5,034.56
$5,034.56
-
$5,034.56
Current price
$5,034.56
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CRN 5-29 A-FGJ-A-V-HQQV is a vertical, non-self-priming, multistage centrifugal pump designed for high-pressure water transfer, boosting, and industrial process applications. Constructed with high-grade stainless steel EN 1.4401 / AISI 316 wetted components and a stainless steel EN 1.4408 / AISI 316 base and head, it delivers a rated flow of 5.8 m³/h, rated head of 150.4 m, and maximum head of 197.5 m. This model is equipped with a single HQQV shaft seal, DIN / ANSI / JIS flange connections, SIC bearing, and a 4 kW IE3 three-phase motor for dependable and energy-efficient operation.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis - water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 5-29 A-FGJ-A-V-HQQV |
| Product Number | 96514171 |
| EAN | 5700396672830 |
| Pump Type | Vertical Multistage Centrifugal |

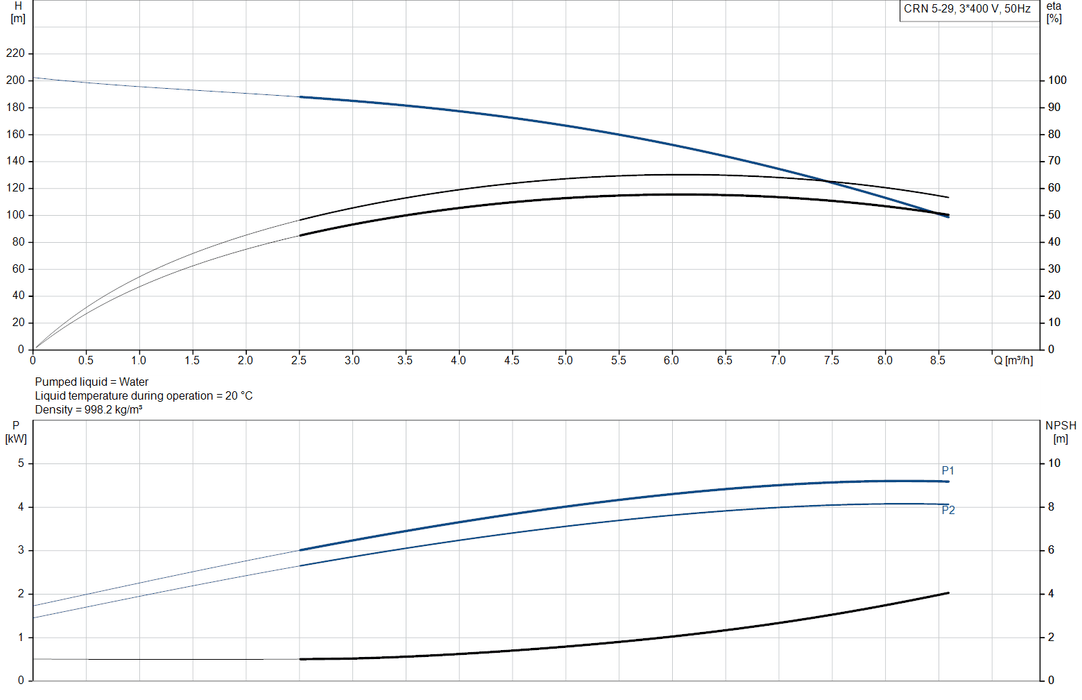

| Rated Flow | 5.8 m³/h |
| Rated Head | 150.4 m |
| Maximum Head | 197.5 m |
| Speed (Pump Data) | 2917 rpm |
| Stages / Impellers | 29 / 29 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQV |
| Liquid Temperature Range | -20 to 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 25/32 inlet/outlet, DIN / ANSI / JIS, PN 25, 1 1/4 inch, 300 lb flange |
| Base / Head Material | Stainless steel, EN 1.4408 / AISI 316 |
| Impeller Material | Stainless steel, EN 1.4401 / AISI 316 |
| Bearing | SIC |

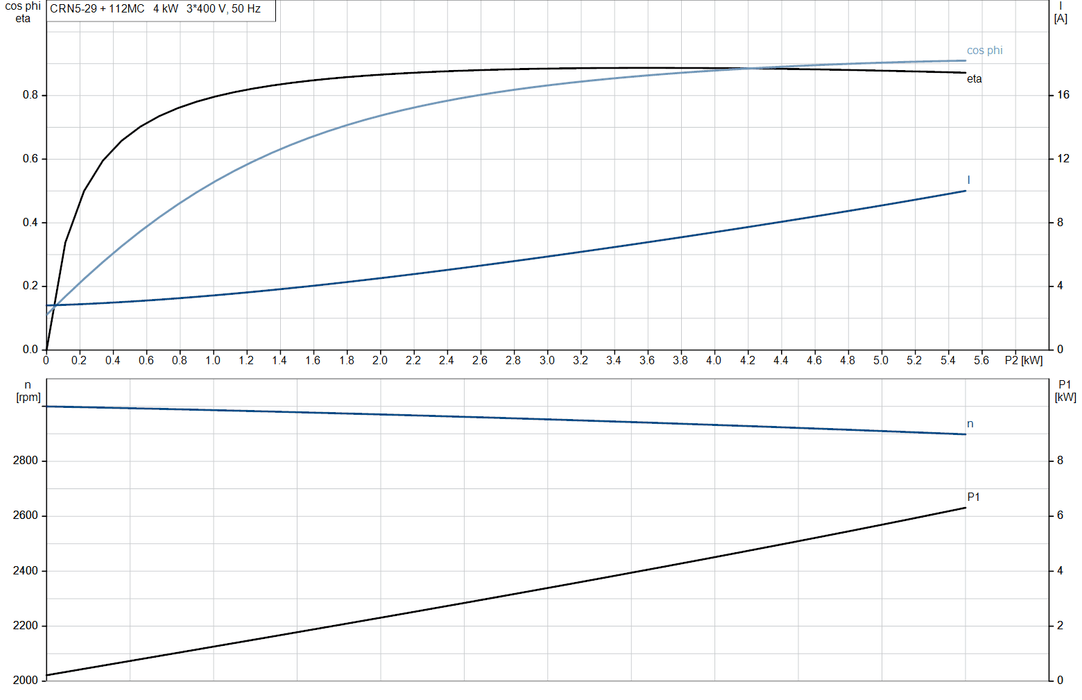

| Motor Power (P2) | 4 kW |
| Voltage | 3 x 380-415D V |
| Frequency | 50 Hz |
| Rated Current | 7.9 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 88.1 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.57 |
| Net / Gross Weight | 68.1 kg / 88.6 kg |
| Shipping Volume | 0.257 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Product Datasheet / Technical PDF | Download |
