Grundfos CRN 5-24 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96514169 (3 x 380-415DV)
by Grundfos
SKU 96514169
Original price
$4,609.00
-
Original price
$4,609.00
Original price
$4,609.00
$4,609.00
-
$4,609.00
Current price
$4,609.00
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CRN 5-24 A-FGJ-A-V-HQQV is a vertical, non-self-priming, inline multistage centrifugal pump with 24 stages, delivering a rated flow of 5.8 m³/h at 125.5 m head. Constructed with high-grade stainless steel (EN 1.4401 / AISI 316) impellers and a single HQQV shaft seal, it is driven by a 3-phase IEC 112MC motor. Designed for commercial, industrial, agricultural, and solar water applications, it offers robust performance, high efficiency, and reliable operation in demanding environments.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 5-24 A-FGJ-A-V-HQQV |
| Product Number | 96514169 |
| EAN | 5700396672816 |
| Pump Type | Vertical Multistage Centrifugal |

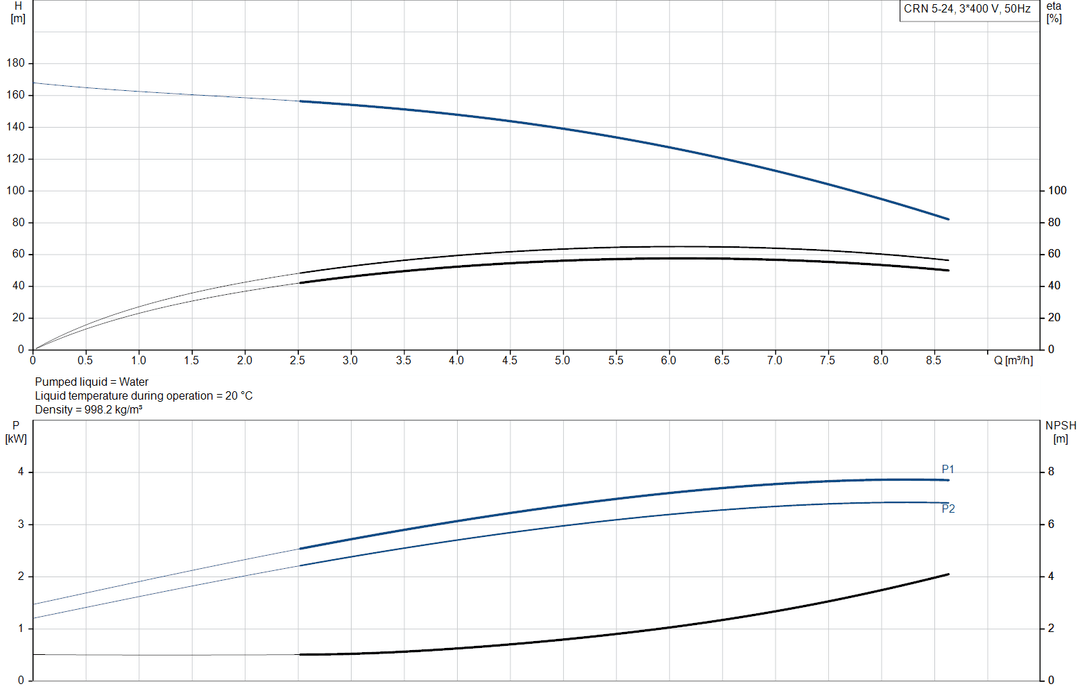

| Rated Flow | 5.8 m³/h |
| Rated Head | 125.5 m |
| Maximum Head | 163.9 m |
| Speed (Pump Data) | 2917 rpm |
| Stages / Impellers | 24 / 24 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQV |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 25/32, 1 1/4 inch, DIN / ANSI / JIS, PN 25, 300 lb |
| Flange Size for Motor | FT130 |
| Base / Head Material | Stainless steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless steel (EN 1.4401 / AISI 316) |
| Bearing | SIC |

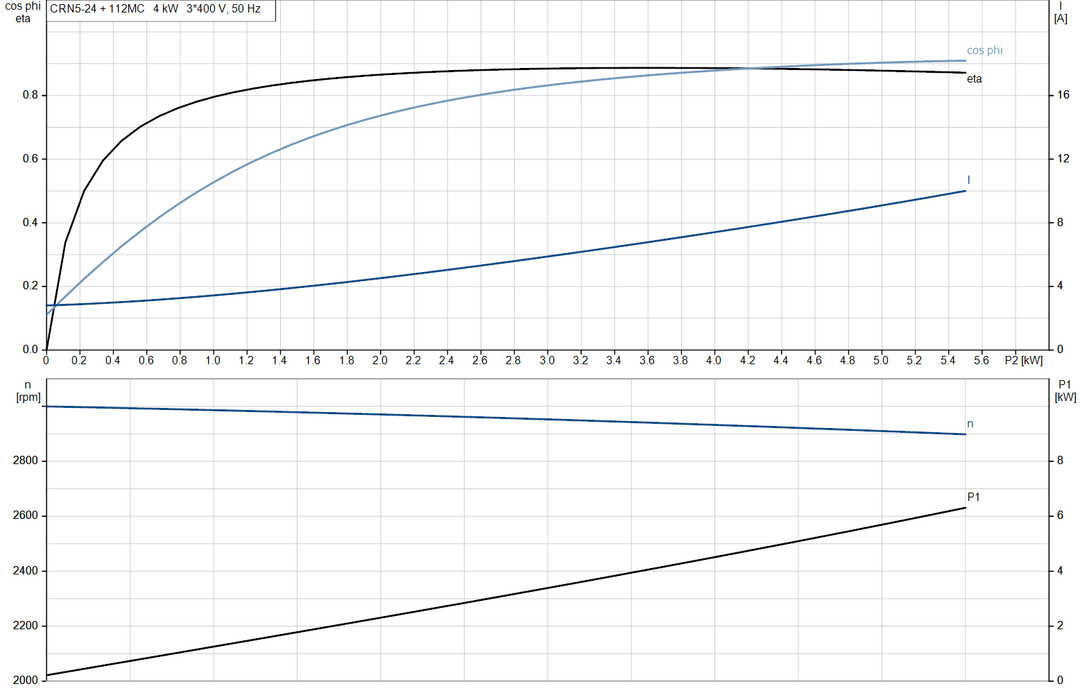

| Motor Power (P2) | 4 kW |
| Voltage | 3 x 380-415D V |
| Frequency | 50 Hz |
| Rated Current | 7.9 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 88.1 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Built-in Motor Protection | PTC |
| MEI | ≥ 0.57 |
| Net / Gross Weight | 65.1 / 69.8 kg |
| Shipping Volume | 0.148 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Product Datasheet | Download |
