Grundfos CRN 5-13 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96517213 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96517213
Original price
$3,477.38
-
Original price
$3,477.38
Original price
$3,477.38
$3,477.38
-
$3,477.38
Current price
$3,477.38
📢 For orders over $100, FREE Shipping Australia-wide

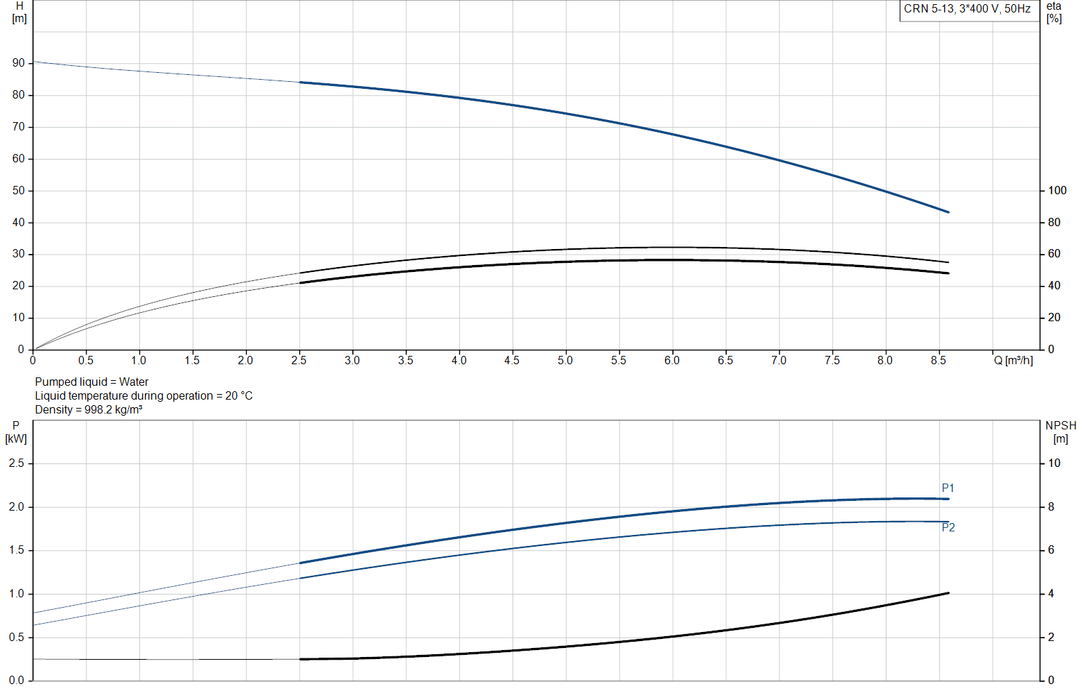

The Grundfos CRN 5-13 A-FGJ-A-V-HQQV is a vertical, non-self-priming, inline multistage centrifugal pump with 13 stages, designed for pipe system installation and foundation mounting. Constructed with high-grade stainless steel (EN 1.4401 / AISI 316) impellers and a single HQQV shaft seal, it delivers a rated flow of 5.8 m³/h at 66.1 m head. The pump is powered by a 3-phase IEC 90LE motor, suitable for commercial, industrial, agricultural, and solar water applications demanding reliability and efficiency.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 5-13 A-FGJ-A-V-HQQV |
| Product Number | 96517213 |
| EAN | 5700396758442 |
| Pump Type | Vertical Multistage Centrifugal |
| Rated Flow | 5.8 m³/h |
| Rated Head | 66.1 m |
| Maximum Head | 88.4 m |
| Speed (Pump Data) | 2899 rpm |
| Stages / Impellers | 13 / 13 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQV |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 25/32, 1 1/4 inch, DIN / ANSI / JIS, PN 25, 300 lb |
| Flange Size for Motor | FT115 |
| Base / Head Material | Stainless steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless steel (EN 1.4401 / AISI 316) |
| Bearing | SIC |

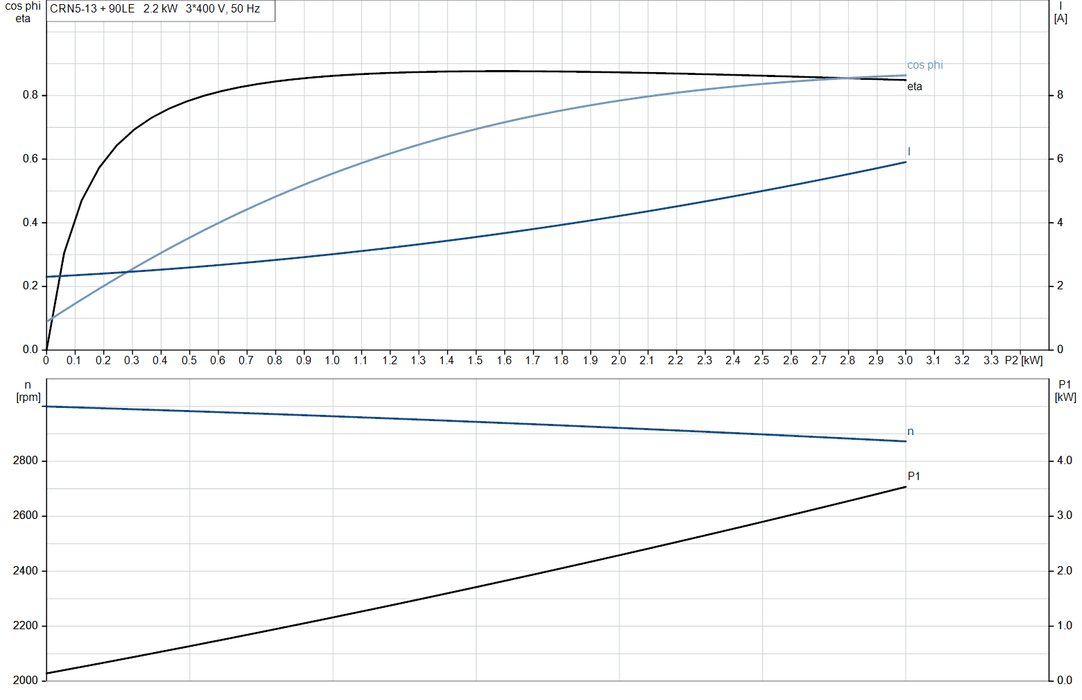

| Motor Power (P2) | 2.2 kW |
| Voltage | 3 x 220-240D/380-415Y V |
| Frequency | 50 Hz |
| Rated Current | 8.00 / 4.60 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 85.9 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.57 |
| Net / Gross Weight | 41.7 / 44.6 kg |
| Shipping Volume | 0.13 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Product Datasheet | Download |
