Grundfos CRN 5-12 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 92902681 (1 x 220-230V)
by Grundfos
SKU 92902681
Original price
$3,870.63
-
Original price
$3,870.63
Original price
$3,870.63
$3,870.63
-
$3,870.63
Current price
$3,870.63
📢 For orders over $100, FREE Shipping Australia-wide

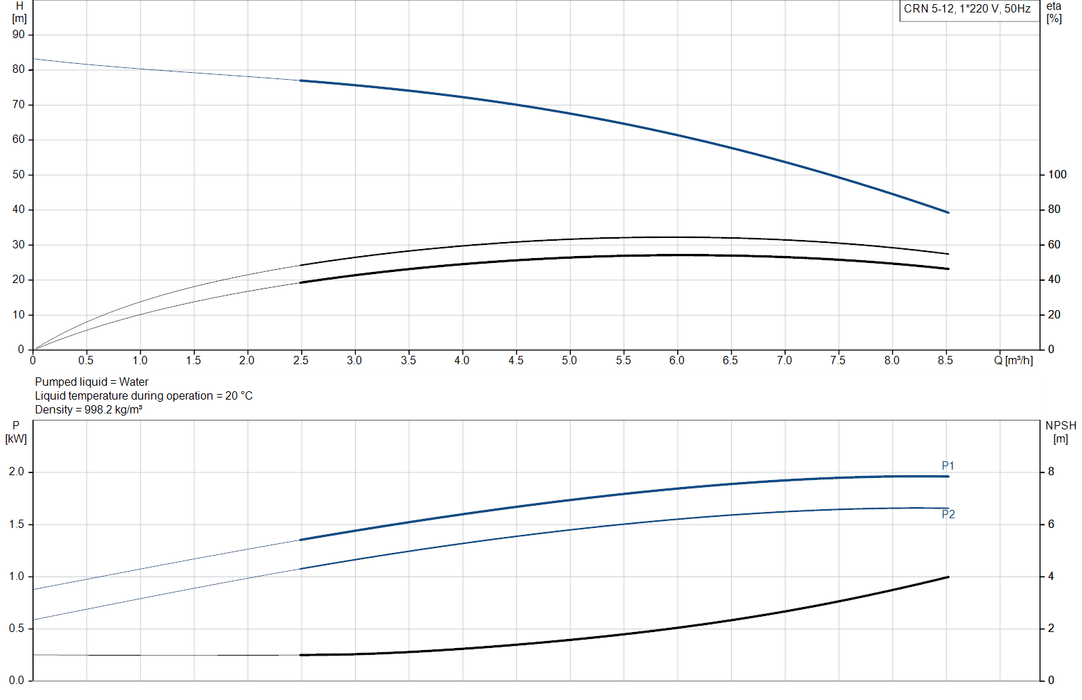

The Grundfos CRN 5-12 A-FGJ-A-V-HQQV is a vertical multistage centrifugal inline pump suitable for commercial, industrial, and solar water applications. It features high-grade stainless steel (EN 1.4401 / AISI 316) wetted parts, a HQQV single cartridge shaft seal, combined DIN / ANSI / JIS flanged connections, and a 2.2 kW IEC 90LD 1-phase motor. Rated flow is 5.8 m³/h with a rated head of 55.5 m and maximum head of 79.9 m, offering reliable performance for demanding applications.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 5-12 A-FGJ-A-V-HQQV |
| Product Number | 92902681 |
| EAN | 5715121305365 |
| Pump Type | Vertical Multistage Centrifugal |
| Rated Flow | 5.8 m³/h |
| Rated Head | 55.5 m |
| Maximum Head | 79.9 m |
| Speed (Pump Data) | 2730 rpm |
| Stages / Impellers | 12 / 12 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQV |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 25/32, 1 1/4 inch, DIN / ANSI / JIS, PN 25, 300 lb |
| Flange Size for Motor | FT115 |
| Base / Head Material | Stainless steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless steel (EN 1.4401 / AISI 316) |
| Bearing | SIC |
| Motor Power (P2) | 2.2 kW |
| Voltage | 1 x 220-230 V |
| Frequency | 50 Hz |
| Rated Current | 13.1-12.6 A |
| Motor Efficiency Class | IE2 |
| Motor Efficiency (Full Load) | 83.2 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.57 |
| Net / Gross Weight | 43.2 / 46.1 kg |
| Shipping Volume | 0.13 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Product Datasheet | Download |
