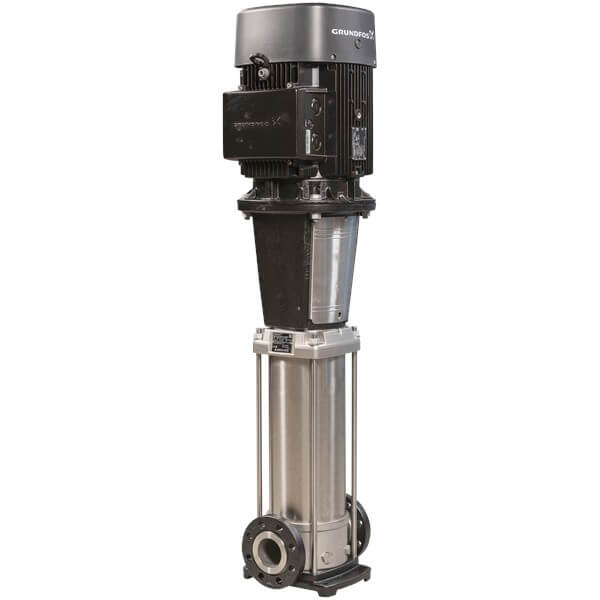

Grundfos CRN 32-5-2 A-F-A-V-HQQV Vertical Multistage Centrifugal Pump – 96122386 (3 x 380-415D/660-690YD)
📢 For orders over $100, FREE Shipping Australia-wide
A vertical, non-self-priming, multistage, in-line centrifugal pump designed for installation in pipe systems and mounting on a foundation. All wetted components are constructed from high-grade stainless steel (EN 1.4401 for impellers, intermediate chambers, and outer sleeve; EN 1.4408 for head cover and base), providing exceptional corrosion resistance and durability. The pump delivers a rated flow of 30 m³/h and a rated head of 90.4 meters, with a maximum head of 116.8 meters. It features a single HQQV shaft seal complying with EN 12756, DIN flanged connections (DN 65, PN 40), and a maximum operating pressure of 16 bar. Power is transmitted via a cast iron split coupling from an 11 kW, IE3-class, 3-phase AC motor with IP55 enclosure protection.
Suitable Applications
- Commercial heating and air conditioning
- Commercial and community water pressure boosting
- District heating and cooling
- Industrial heating, cooling, and water supply
- Industrial wastewater and industrial process water treatment
- Desalination and reverse osmosis (water treatment)
- Drinking water treatment and water distribution
- Irrigation (rotor & spray irrigation, pivot, ground water transfer)
- Solar water solutions (boosting, fertigation, dosing, livestock watering, agriculture solar solutions)
- Surface water intake and digital groundwater management
- Machining, wash and clean, and process liquids transfer
Key Specifications
| Product Name | CRN 32-6 A-F-A-V-HQQV |
|---|---|
| Product Number | 96122389 |
| EAN | 5700396684338 |
| Pump Type | Vertical, Multistage Centrifugal |
| Rated Flow | 30 m³/h |
| Rated Head | 90.4 m |
| Maximum Head | 116.8 m |
| Speed (Pump Data) | 2924 rpm |
| Stages / Impellers | 6 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQV (Single, EN 12756) |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 16 bar |
| Connections | DN 65 / DIN / PN 40 |
| Base / Head Material | Stainless Steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless Steel (EN 1.4401 / AISI 316) |
| Bearing | SIC |
| Support Bearing | Graflon |
| Motor Power (P2) | 11 kW |
| Voltage | 3 x 380-415D / 660-690Y V |
| Frequency | 50 Hz |
| Rated Current | 20.8-19.8 / 12.0-11.8 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 91.2 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 163 kg / 196 kg |
| Shipping Volume | 0.495 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, WRAS |
Documentation & Downloads
| Product Datasheet – CRN 32-6 A-F-A-V-HQQV (96122389) | Download |
|---|
