Grundfos CRN 20-7 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96500657 (3 x 380-415D/660-690YD)
by Grundfos
SKU 96500657
Original price
$8,093.25
-
Original price
$8,093.25
Original price
$8,093.25
$8,093.25
-
$8,093.25
Current price
$8,093.25
📢 For orders over $100, FREE Shipping Australia-wide
Grundfos CRN 20-7 A-FGJ-A-V-HQQV is a vertical multistage centrifugal pump designed for commercial, industrial, and agricultural water applications. With high-grade stainless steel wetted parts (EN 1.4401 / EN 1.4408, AISI 316) and a single HQQV shaft seal, it delivers a rated flow of 21 m³/h at a rated head of 81.7 m and maximum head of 103 m. The pump is powered by a 7.5 kW IEC 3-phase motor, offering reliable, energy-efficient operation for demanding systems.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Livestock and wildlife watering
- Water treatment fertigation & chemigation
- Pivot irrigation
- Frost protection
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Municipal solar solutions
- Agriculture solar solutions
- Livestock watering with solar solutions
- Community solar solutions
Key Specifications
| Product Name | CRN 20-7 A-FGJ-A-V-HQQV |
| Product Number | 96500657 |
| EAN | 5700396206202 |
| Pump Type | Vertical Multistage Centrifugal |

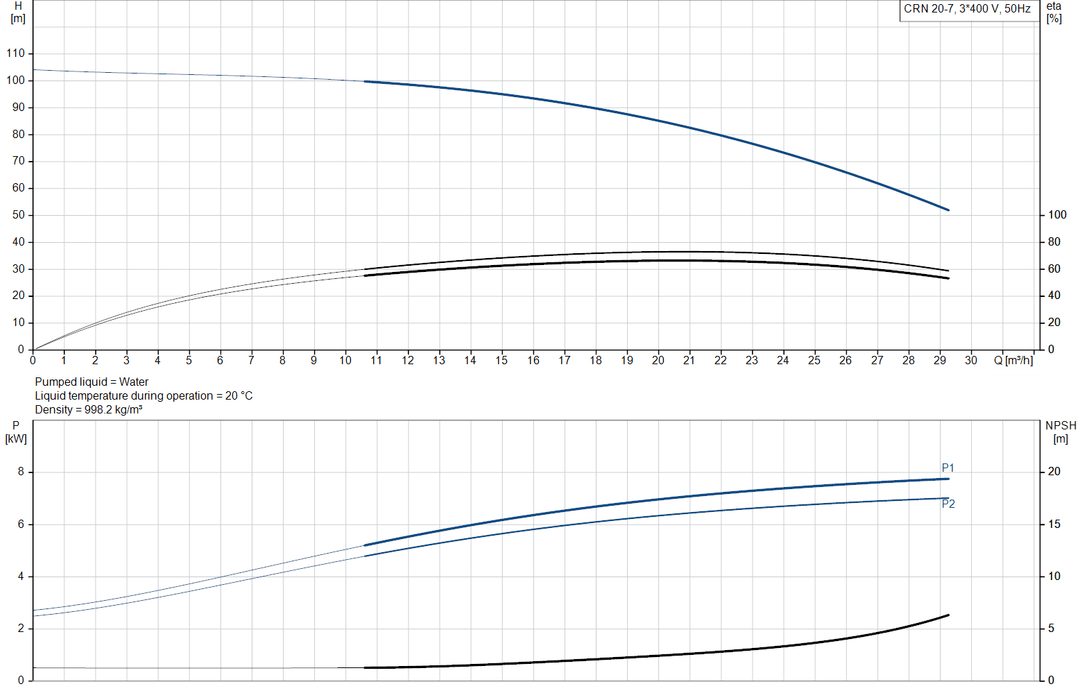

| Rated Flow | 21 m³/h |
| Rated Head | 81.7 m |
| Maximum Head | 103 m |
| Speed (Pump Data) | 2919 rpm |
| Stages / Impellers | 7 / 7 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQV |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 50 / DN 50, DIN / ANSI / JIS, PN 25, 300 lb flange |
| Base / Head Material | Stainless steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless steel (EN 1.4401 / AISI 316) |
| Bearing | SIC |

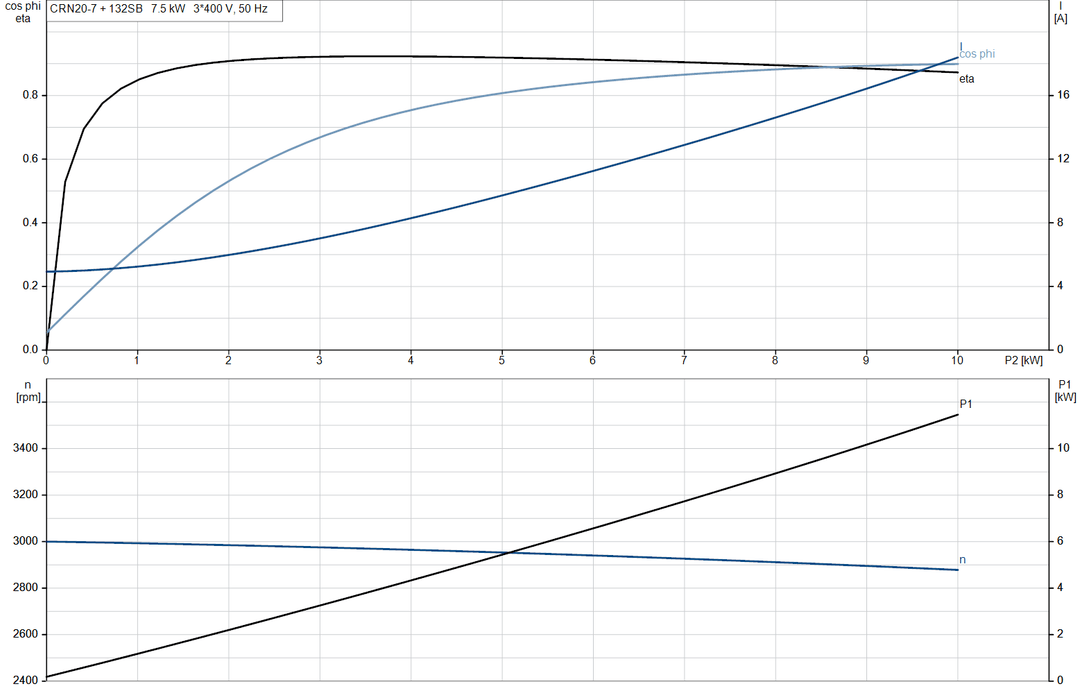

| Motor Power (P2) | 7.5 kW |
| Voltage | 3 x 380-415D / 660-690Y V |
| Frequency | 50 Hz |
| Rated Current | 14.4-14.0 / 8.30-8.10 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 90.1-90.4 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 101 kg / 123 kg |
| Shipping Volume | 0.285 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, WRAS, ACS |
Documentation & Downloads
| Product Datasheet / PDF | Download |
