Grundfos CRN 20-3 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96500653 (3 x 380-415DV)
by Grundfos
SKU 96500653
Original price
$5,501.38
-
Original price
$5,501.38
Original price
$5,501.38
$5,501.38
-
$5,501.38
Current price
$5,501.38
📢 For orders over $100, FREE Shipping Australia-wide
Grundfos CRN 20-3 A-FGJ-A-V-HQQV is a vertical multistage centrifugal pump designed for high-efficiency water transfer, pressure boosting, and treatment applications across commercial, industrial, and agricultural systems. Built with high-grade stainless steel wetted components (EN 1.4401 / EN 1.4408, AISI 316), it delivers a rated flow of 21 m³/h and a rated head of 34.6 m, with a maximum head of 43.9 m. The pump is fitted with a single HQQV shaft seal, FGJ DIN / ANSI / JIS flange connections, and a 4 kW IEC 3-phase motor for durable and dependable performance.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Livestock and wildlife watering
- Water treatment fertigation & chemigation
- Pivot irrigation
- Frost protection
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Municipal solar solutions
- Agriculture solar solutions
- Livestock watering with solar solutions
- Community solar solutions
Key Specifications
| Product Name | CRN 20-3 A-FGJ-A-V-HQQV |
| Product Number | 96500653 |
| EAN | 5700396206127 |
| Pump Type | Vertical Multistage Centrifugal |

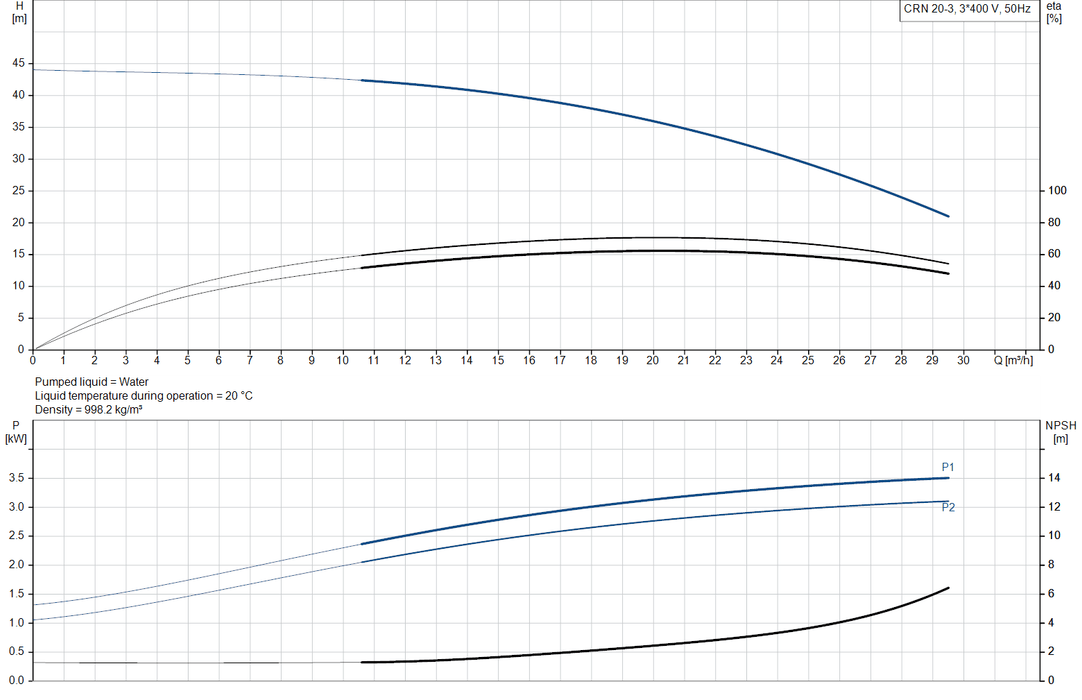

| Rated Flow | 21 m³/h |
| Rated Head | 34.6 m |
| Maximum Head | 43.9 m |
| Speed (Pump Data) | 2917 rpm |
| Stages / Impellers | 3 / 3 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQV |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 50 / DN 50, DIN / ANSI / JIS, PN 25, 300 lb flange |
| Base / Head Material | Stainless steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless steel (EN 1.4401 / AISI 316) |
| Bearing | SIC |

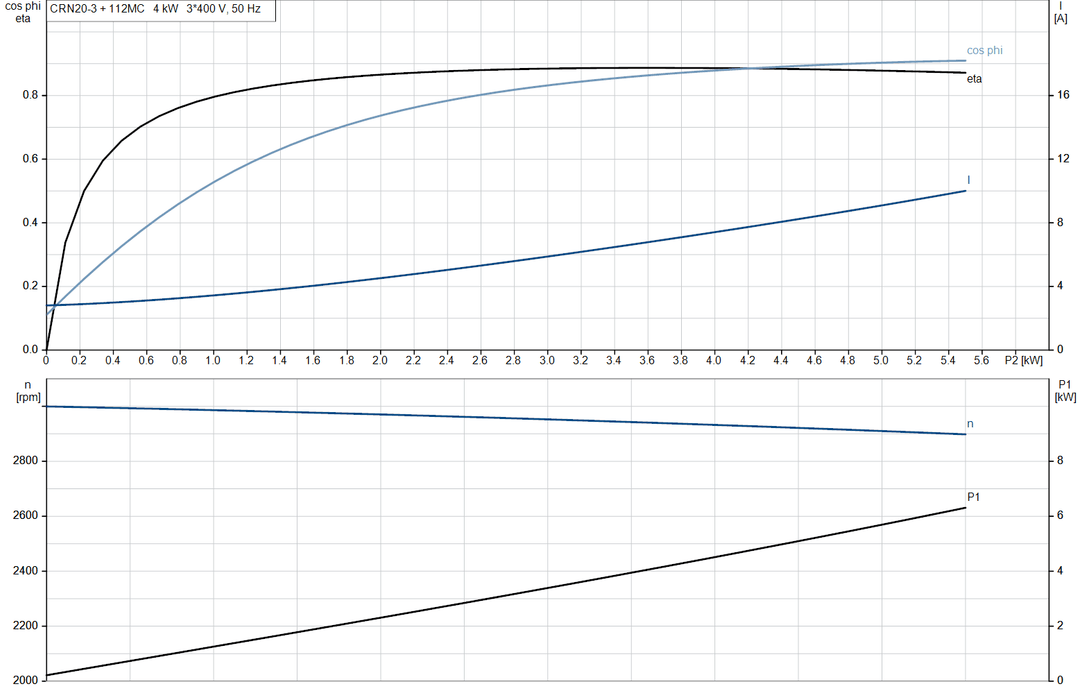

| Motor Power (P2) | 4 kW |
| Voltage | 3 x 380-480D V |
| Frequency | 50 Hz |
| Rated Current | 7.80-6.80 A |
| Motor Efficiency Class | NEMA Premium / IE3 (60Hz) |
| Motor Efficiency (Full Load) | 88.5 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 68 kg / 90 kg |
| Shipping Volume | 0.234 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Product Datasheet / PDF | Download |
