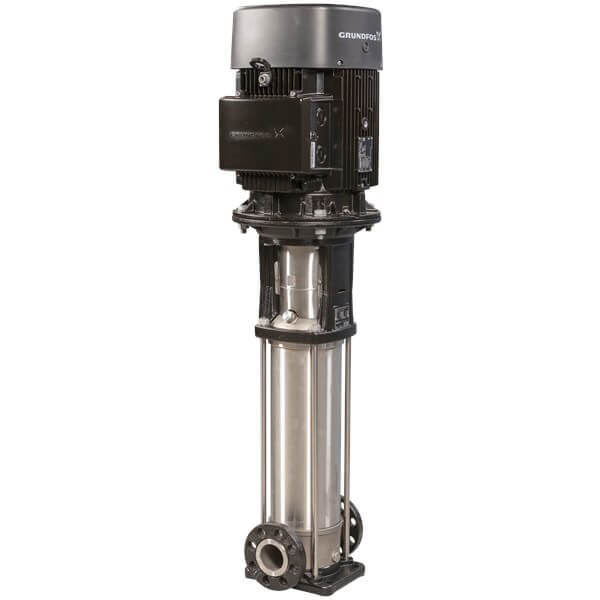

Grundfos CRN 20-12 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96500660 (3 x 380-415D/660-690YD)
📢 For orders over $100, FREE Shipping Australia-wide
A vertical, non-self-priming, multistage, in-line centrifugal pump designed for installation in pipe systems and mounting on a foundation. All wetted components are constructed from high-grade stainless steel (EN 1.4401 for impellers, intermediate chambers, and outer sleeve; EN 1.4408 for head cover and base), ensuring superior corrosion resistance and durability. The pump delivers a rated flow of 21 m³/h and a rated head of 142.7 meters, with a maximum head of 178 meters. It features a single HQQV shaft seal complying with EN 12756, DIN/ANSI/JIS flanged connections (DN 50, PN 25 / 300 lb), and a maximum operating pressure of 25 bar. Power is transmitted via a cast iron split coupling from a 15 kW, IE3-class, 3-phase AC motor with IP55 enclosure protection.
Suitable Applications
- Commercial heating and air conditioning
- Commercial and community water pressure boosting
- District heating and cooling
- Industrial heating, cooling, and water supply
- Industrial wastewater and industrial process water treatment
- Desalination and reverse osmosis (water treatment)
- Drinking water treatment and water distribution
- Irrigation (rotor & spray irrigation, pivot, ground water transfer)
- Solar water solutions (boosting, fertigation, dosing, livestock watering, agriculture solar solutions)
- Surface water intake and digital groundwater management
- Machining, wash and clean, and process liquids transfer
Key Specifications
| Product Name | CRN 20-12 A-FGJ-A-V-HQQV |
| Product Number | 96500660 |
| EAN | 5700396206264 |
| Pump Type | Vertical, Multistage Centrifugal |

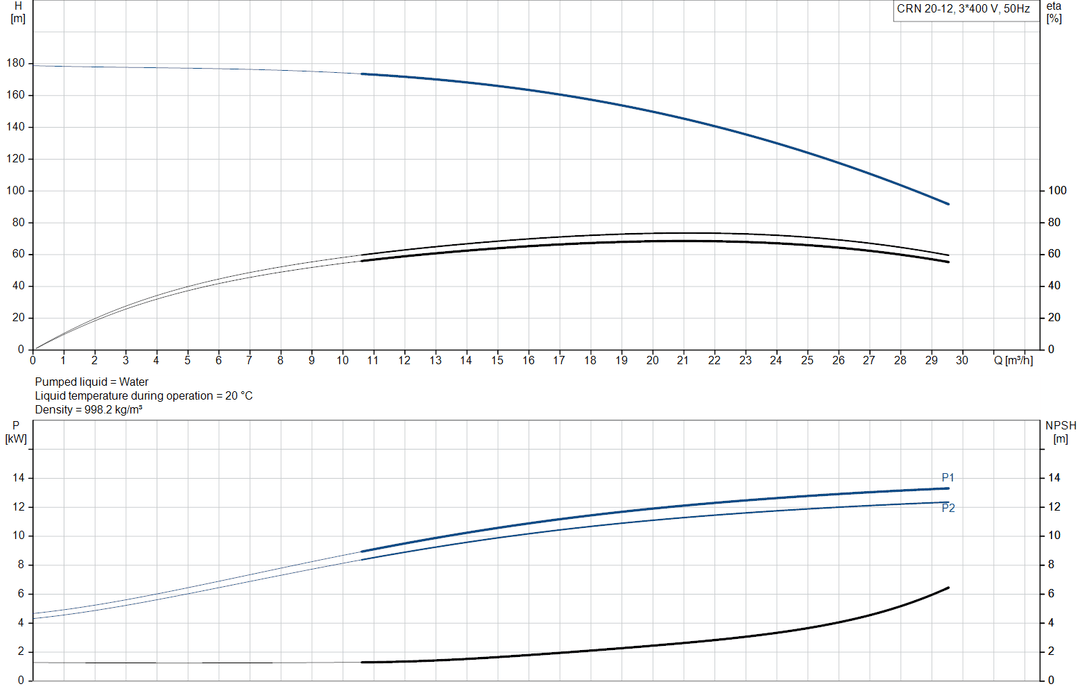

| Rated Flow | 21 m³/h |
| Rated Head | 142.7 m |
| Maximum Head | 178 m |
| Speed (Pump Data) | 2923 rpm |
| Stages / Impellers | 12 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQV (Single, EN 12756) |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 50 (2 inch) / DIN / ANSI / JIS / PN 25 / 300 lb |
| Base / Head Material | Stainless Steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless Steel (EN 1.4401 / AISI 316) |
| Bearing | SIC |

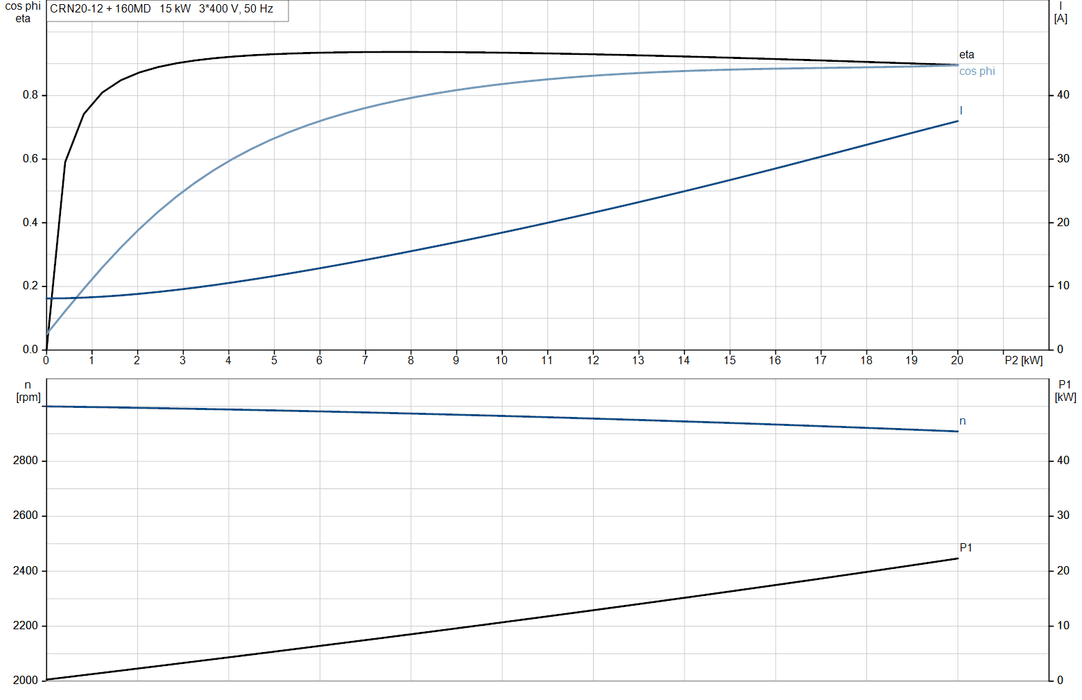

| Motor Power (P2) | 15 kW |
| Voltage | 3 x 380-415D / 660-690Y V |
| Frequency | 50 Hz |
| Rated Current | 28.0-26.0 / 16.2-15.6 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 91.9 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.70 |
| Net / Gross Weight | 162 kg / 190 kg |
| Shipping Volume | 0.488 m³ |
| Country of Origin | TW |
| Approvals | CE, EAC, UKCA, SEPRO, WRAS, ACS |
Documentation & Downloads
| Product Datasheet – CRN 20-12 A-FGJ-A-V-HQQV (96500660) | Download |
