Grundfos CRN 1S-36 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 92900216 (1 x 220-230V)
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CRN 1S-36 A-FGJ-A-V-HQQV is a vertical inline multistage centrifugal pump designed for demanding water applications, including industrial water supply, irrigation, solar water solutions, and drinking water treatment. All wetted components are made from high-grade stainless steel (EN 1.4401 / AISI 316) for durability and corrosion resistance. The pump uses a rigid split coupling and combined DIN/ANSI/JIS flange connections. It delivers a rated flow of 0.9 m³/h at a rated head of 153 m, with a maximum head of 208.1 m. It features a single HQQV mechanical shaft seal and is powered by a 1.1 kW, single-phase IEC 90SE motor with IP55 protection, ensuring reliable and efficient operation.
Suitable Applications
- Commercial heating and air conditioning
- Water pressure boosting
- District heating and cooling
- Machining and wash/clean processes
- Industrial heating, cooling, and water supply
- Industrial wastewater and process water treatment
- Desalination and reverse osmosis
- Surface water intake and drinking water treatment
- Water distribution and irrigation
- Solar water solutions and controls
- Community water supply
- Rotor & spray irrigation, pivot irrigation
- Groundwater transfer and solar boosting
- Agriculture fertigation, dosing, and livestock watering with solar solutions
Key Specifications
| Product Name | CRN 1S-36 A-FGJ-A-V-HQQV |
| Product Number | 92900216 |
| EAN | 5715121265737 |
| Pump Type | Vertical Multistage Centrifugal |

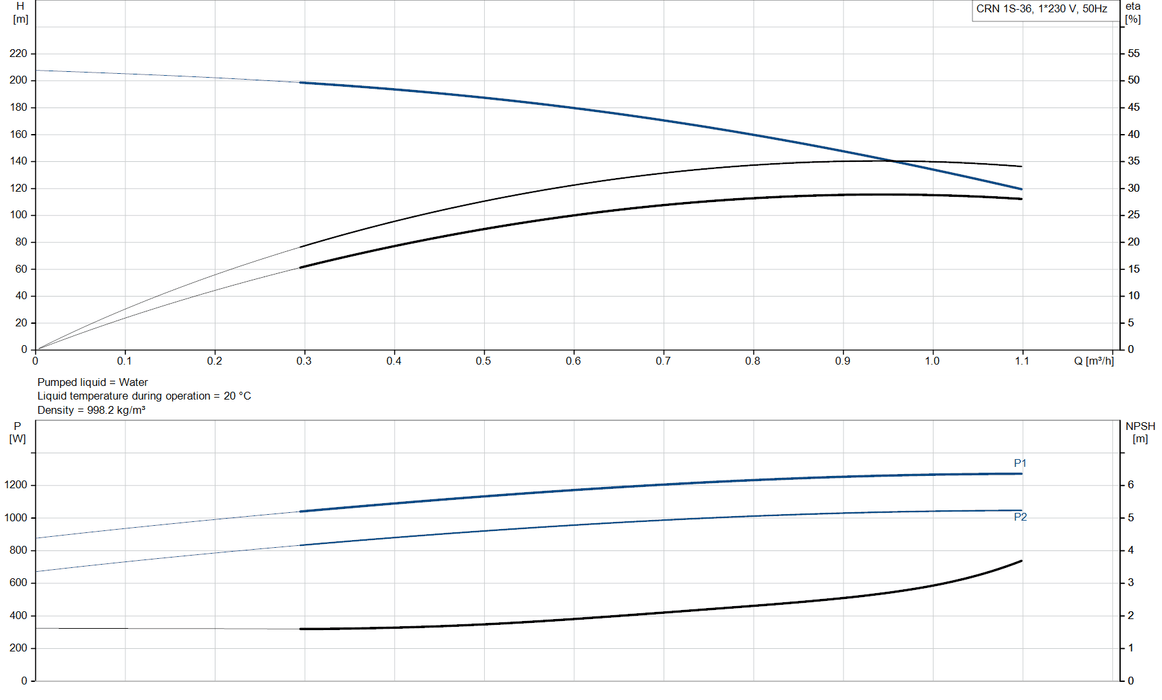

| Rated Flow | 0.9 m³/h |
| Rated Head | 153 m |
| Maximum Head | 208.1 m |
| Pump Speed | 2789 rpm |
| Stages / Impellers | 36 / 36 |
| Shaft Seal | HQQV |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 25/32 (1 1/4") DIN / ANSI / JIS Flanges, PN25, 300 lb |
| Base Material | Stainless Steel EN 1.4408 / AISI 316 |
| Impeller Material | Stainless Steel EN 1.4401 / AISI 316 |
| Bearing | SIC |
| Motor Power (P2) | 1.1 kW |
| Voltage | 1 x 220–230 V |
| Frequency | 50 Hz |
| Rated Current | 6.30–6.60 A |
| Motor Efficiency Class | IE2 |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.54 |
| Net Weight | 45.8 kg |
| Gross Weight | 50.5 kg |
| Shipping Volume | 0.148 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
| Price | AUD 6,542 |
Documentation & Downloads
| Grundfos CRN 1S-36 Product Datasheet | Download PDF |
