Grundfos CRN 1S-33 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 92900214 (1 x 220-230V)
by Grundfos
SKU 92900214
Original price
$4,281.75
-
Original price
$4,281.75
Original price
$4,281.75
$4,281.75
-
$4,281.75
Current price
$4,281.75
📢 For orders over $100, FREE Shipping Australia-wide

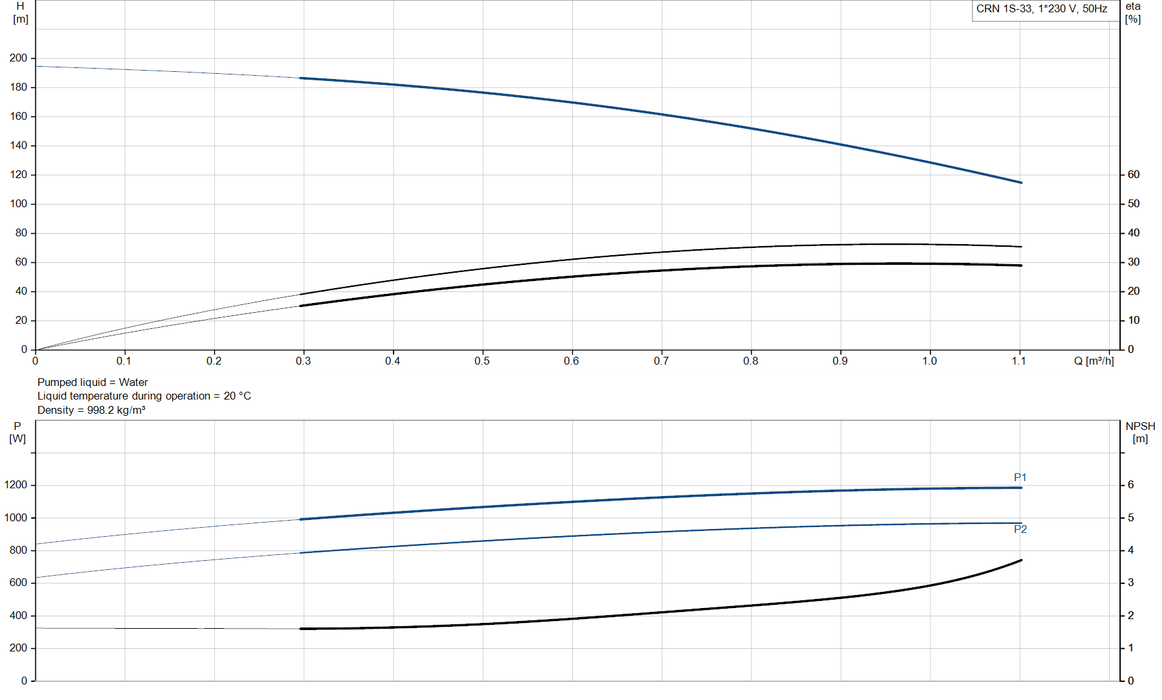

The Grundfos CRN 1S-33 A-FGJ-A-V-HQQV is a vertical inline multistage centrifugal pump engineered for a wide range of water applications including industrial water supply, irrigation, solar water solutions, and drinking water treatment. All wetted components are made of high-grade stainless steel (EN 1.4401 / AISI 316) for maximum durability. The pump uses a rigid split coupling and combined DIN/ANSI/JIS flange connections. It delivers a rated flow of 0.9 m³/h at a rated head of 142.1 m, reaching a maximum head of 192 m. It features a single HQQV mechanical shaft seal and is driven by a 1.1 kW, single-phase IEC 90SE motor with IP55 protection, providing reliable and efficient operation.
Suitable Applications
- Commercial heating and air conditioning
- Water pressure boosting
- District heating and cooling
- Machining and wash/clean processes
- Industrial heating, cooling, and water supply
- Industrial wastewater and process water treatment
- Desalination and reverse osmosis
- Surface water intake and drinking water treatment
- Water distribution and irrigation
- Solar water solutions and controls
- Community water supply
- Rotor & spray irrigation, pivot irrigation
- Groundwater transfer and solar boosting
- Agriculture fertigation, dosing, and livestock watering with solar solutions
Key Specifications
| Product Name | CRN 1S-33 A-FGJ-A-V-HQQV |
| Product Number | 92900214 |
| EAN | 5715121265706 |
| Pump Type | Vertical Multistage Centrifugal |
| Rated Flow | 0.9 m³/h |
| Rated Head | 142.1 m |
| Maximum Head | 192 m |
| Pump Speed | 2789 rpm |
| Stages / Impellers | 33 / 33 |
| Shaft Seal | HQQV |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 25/32 (1 1/4") DIN / ANSI / JIS Flanges, PN25, 300 lb |
| Base Material | Stainless Steel EN 1.4408 / AISI 316 |
| Impeller Material | Stainless Steel EN 1.4401 / AISI 316 |
| Bearing | SIC |

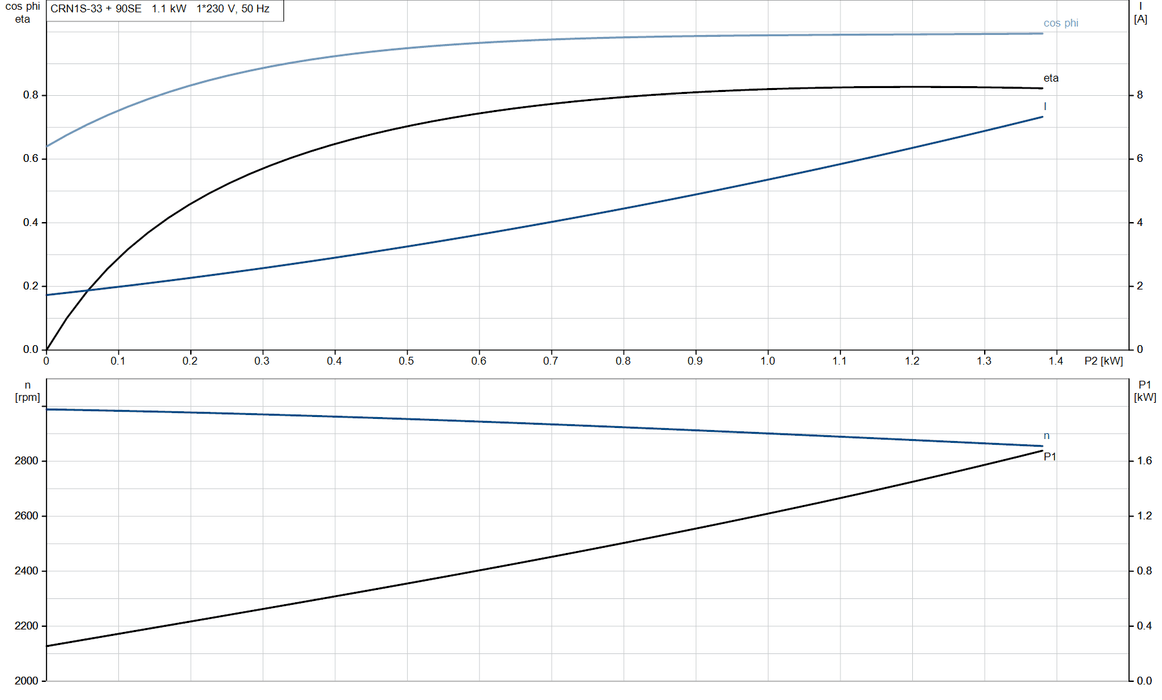

| Motor Power (P2) | 1.1 kW |
| Voltage | 1 x 220–230 V |
| Frequency | 50 Hz |
| Rated Current | 6.30–6.60 A |
| Motor Efficiency Class | IE2 |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.54 |
| Net Weight | 44.6 kg |
| Gross Weight | 50 kg |
| Shipping Volume | 0.133 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
| Price | AUD 6,228 |
Documentation & Downloads
| Grundfos CRN 1S-33 Product Datasheet | Download PDF |
