Grundfos CRN 1S-11 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 92900138 (1 x 220-230V)
by Grundfos
SKU 92900138
Original price
$2,362.94
-
Original price
$2,362.94
Original price
$2,362.94
$2,362.94
-
$2,362.94
Current price
$2,362.94
📢 For orders over $100, FREE Shipping Australia-wide

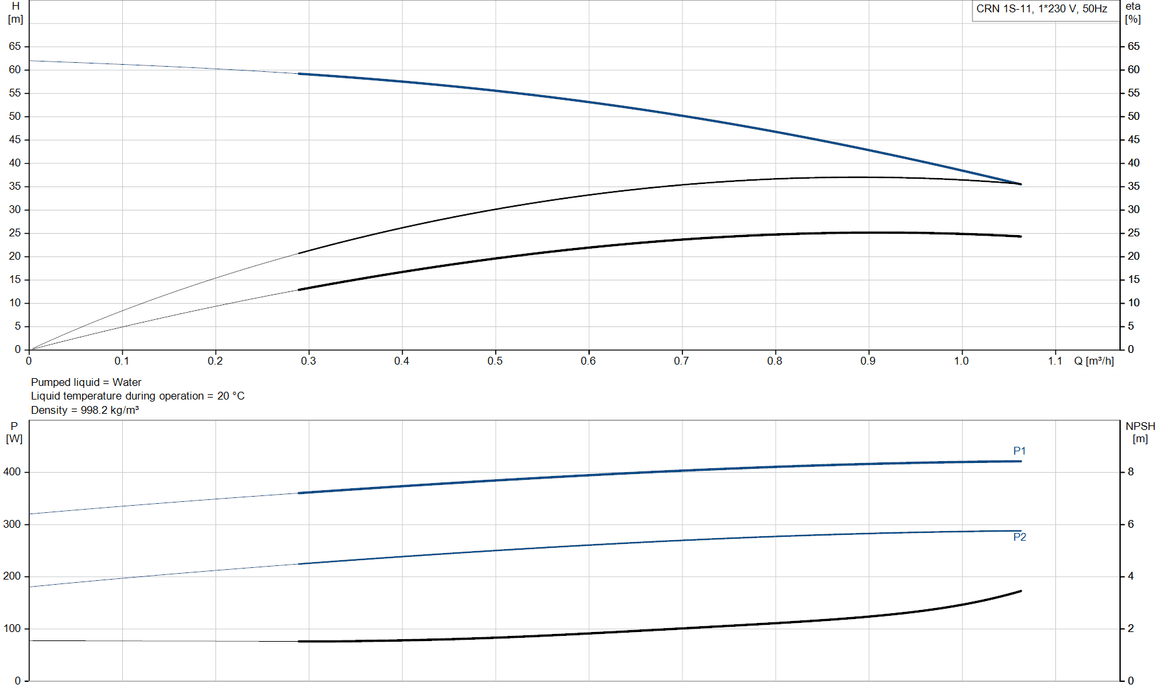

The Grundfos CRN 1S-11 A-FGJ-A-V-HQQV is a vertical multistage centrifugal inline pump suitable for demanding water supply, industrial, and pressure boosting applications. Wetted components are constructed from high-grade stainless steel (EN 1.4401 / AISI 316) for enhanced corrosion resistance. The pump delivers a rated flow of 0.9 m³/h with a rated head of 46.6 m and a maximum head of 63.3 m. It features a single HQQV mechanical shaft seal, combined DIN / ANSI / JIS flange connections rated PN25 (300 lb), and a 0.37 kW single-phase IEC asynchronous motor with IP55 protection and IE2 efficiency class.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating and cooling
- Industrial water supply
- Industrial wastewater treatment
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation systems
- Solar water solutions
- Community water supply
- Rotor and spray irrigation
- Groundwater transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Solar water treatment, fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 1S-11 A-FGJ-A-V-HQQV |
| Product Number | 92900138 |
| EAN | 5715121264129 |
| Pump Type | Vertical Multistage Centrifugal |
| Rated Flow | 0.9 m³/h |
| Rated Head | 46.6 m |
| Maximum Head | 63.3 m |
| Pump Speed | 2757 rpm |
| Stages / Impellers | 11 / 11 |
| Shaft Seal | HQQV |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 25/32 (1 1/4") DIN / ANSI / JIS Flanges, PN25, 300 lb |
| Base Material | Stainless Steel EN 1.4408 / AISI 316 |
| Impeller Material | Stainless Steel EN 1.4401 / AISI 316 |
| Bearing | SIC |

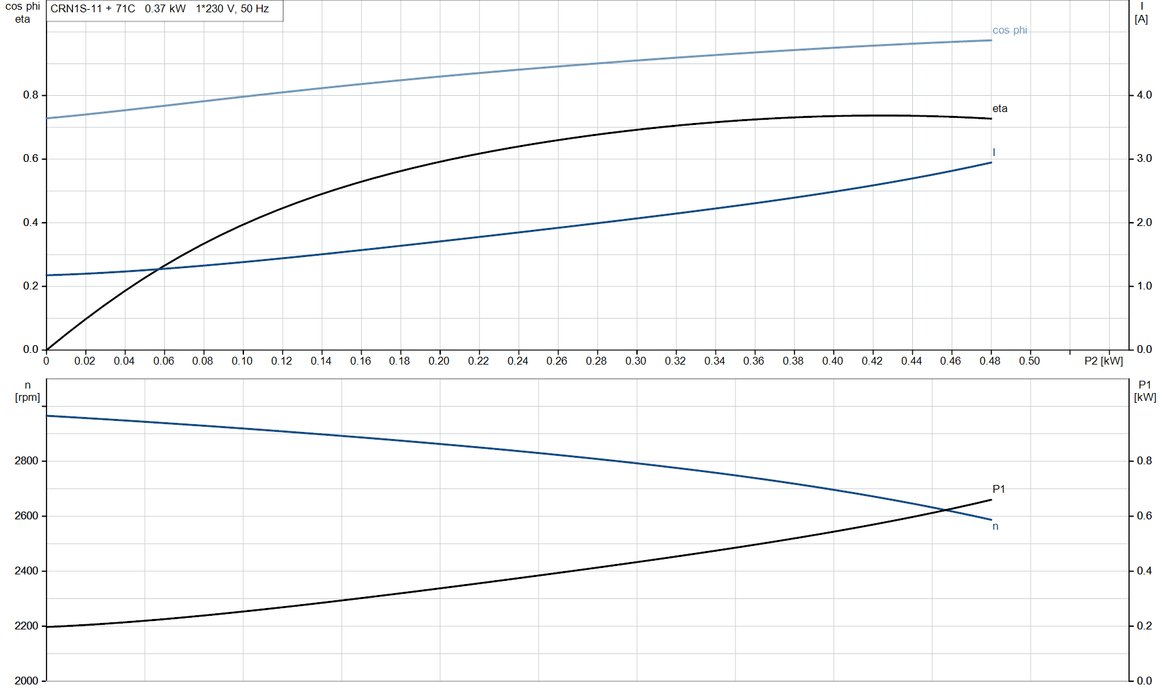

| Motor Power (P2) | 0.37 kW |
| Voltage | 1 x 220–230 V |
| Frequency | 50 Hz |
| Rated Current | 2.60–2.50 A |
| Motor Efficiency Class | IE2 |
| Enclosure Class | IP55 |
| Insulation Class | F |
| MEI | ≥ 0.54 |
| Net Weight | 26.7 kg |
| Gross Weight | 29.3 kg |
| Shipping Volume | 0.094 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Grundfos CRN 1S-11 Product Datasheet | Download PDF |
