Grundfos CRN 15-9 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96502056 (3 x 380-415D/660-690YD)
by Grundfos
SKU 96502056
Original price
$7,939.25
-
Original price
$7,939.25
Original price
$7,939.25
$7,939.25
-
$7,939.25
Current price
$7,939.25
📢 For orders over $100, FREE Shipping Australia-wide

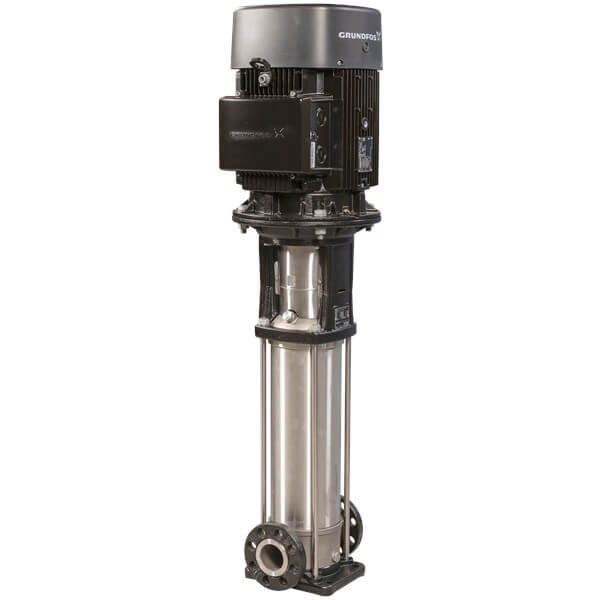

The Grundfos CRN 15-9 A-FGJ-A-V-HQQV is a vertical, non-self-priming, multistage in-line centrifugal pump engineered for demanding commercial, industrial, and water treatment applications. Constructed with high-grade AISI 316 stainless steel wetted components and fitted with an HQQV shaft seal, this pump is designed for reliable performance in pressure boosting, process water transfer, irrigation, and solar water supply systems.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 15-9 A-FGJ-A-V-HQQV |
| Product Number | 96502056 |
| EAN | 5700396234588 |
| Pump Type | Vertical multistage in-line centrifugal pump |

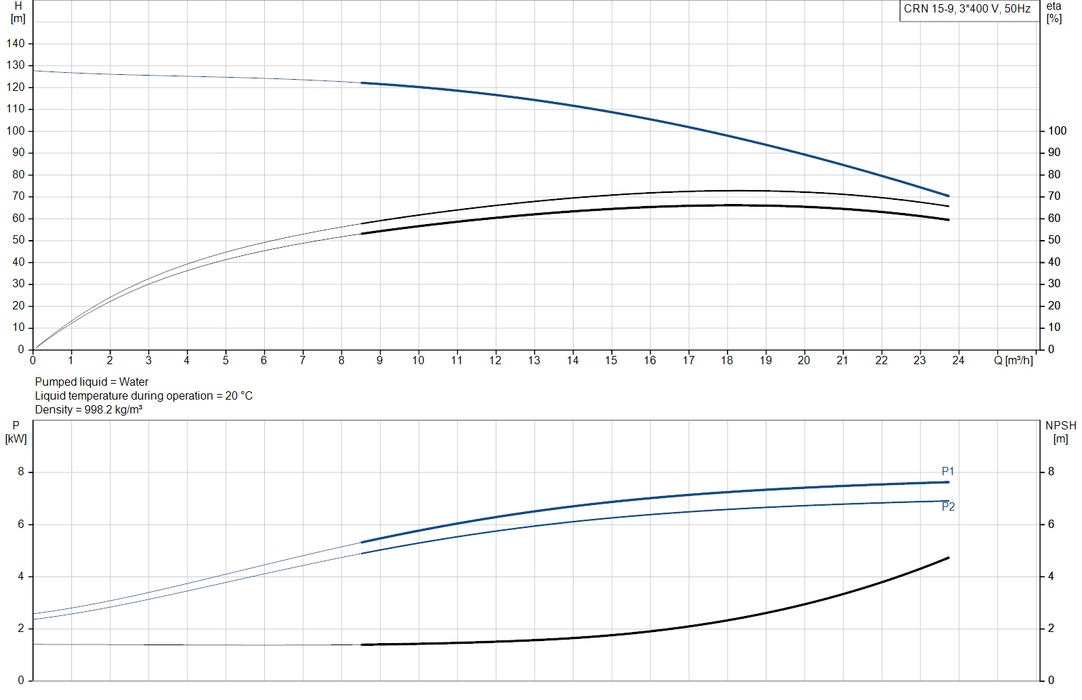

| Rated Flow | 17 m³/h |
| Rated Head | 100.6 m |
| Maximum Head | 127 m |
| Pump Speed | 2919 rpm |
| Rated Speed | 2910–2920 rpm |
| Stages | 9 |
| Impellers | 9 |
| Reduced-Diameter Impellers | 0 |
| Low NPSH | N |
| Pump Orientation | Vertical |
| Shaft Seal Arrangement | Single |
| Primary Shaft Seal | HQQV |
| Code for Shaft Seal | HQQV |
| Pump Version | A |
| Model | A |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 to 90 °C |
| Selected Liquid Temperature | 20 °C |
| Density | 998.2 kg/m³ |
| Maximum Operating Pressure | 25 bar |
| Max Pressure at Stated Temperature | 25 bar / 90 °C, 25 bar / -20 °C |
| Connection Type | DIN / ANSI / JIS |
| Connection Code | FGJ |
| Inlet Connection | DN 50 (2 inch) |
| Outlet Connection | DN 50 (2 inch) |
| Pressure Rating | PN 25 |
| Flange Rating Inlet | 300 lb |
| Base Material | Stainless steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless steel (EN 1.4401 / AISI 316) |
| Material Code | A |
| Rubber Code | V |
| Bearing | SIC |
| Motor Standard | IEC |
| Motor Type | 132SB |
| Motor Power (P2) | 7.5 kW |
| Power (P2) Required by Pump | 7.5 kW |
| Voltage | 3 x 380-415D / 660-690Y V |
| Frequency | 50 Hz |
| Rated Current | 14.4–14.0 / 8.30–8.10 A |
| Starting Current | 780–910 % |

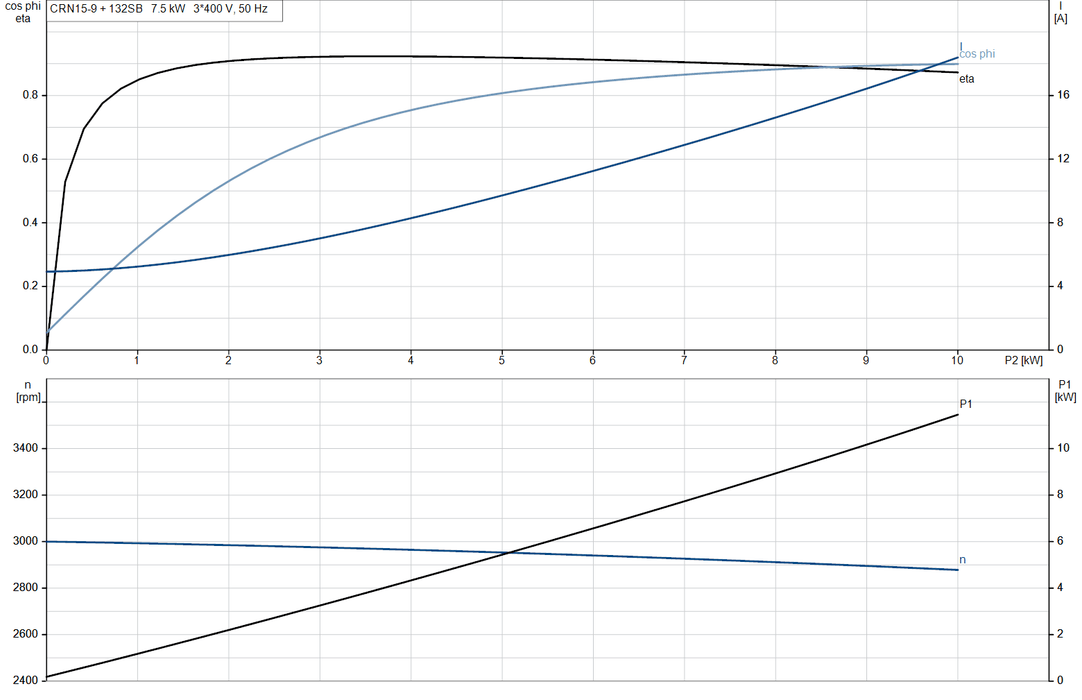

| Power Factor (Cos φ) | 0.88–0.82 |
| Motor Efficiency Class | IE3 |
| Motor Efficiency at Full Load | 90.1–90.4 % |
| Motor Efficiency at 3/4 Load | 90.8–90.9 % |
| Motor Efficiency at 1/2 Load | 90.8–90.4 % |
| Number of Poles | 2 |
| Enclosure Class | IP55 Dust/Jetting |
| Insulation Class | F |
| Built-in Motor Protection | PTC |
| Motor No. | 85U17522 |
| Flange Size for Motor | FF265 |
| Terminal Box Position | 6 |
| Frequency Converter | None |
| Approvals | CE, EAC, UKCA, SEPRO |
| Approvals for Drinking Water | WRAS, ACS |
| Curve Tolerance | ISO9906:2012 3B |
| Minimum Efficiency Index (MEI) | ≥ 0.70 |
| Maximum Ambient Temperature | 60 °C |
| Net Weight | 104 kg |
| Gross Weight | 126 kg |
| Shipping Volume | 0.285 m³ |
| Country of Origin | TW |
| Custom Tariff No. | 84137090621436561 |
