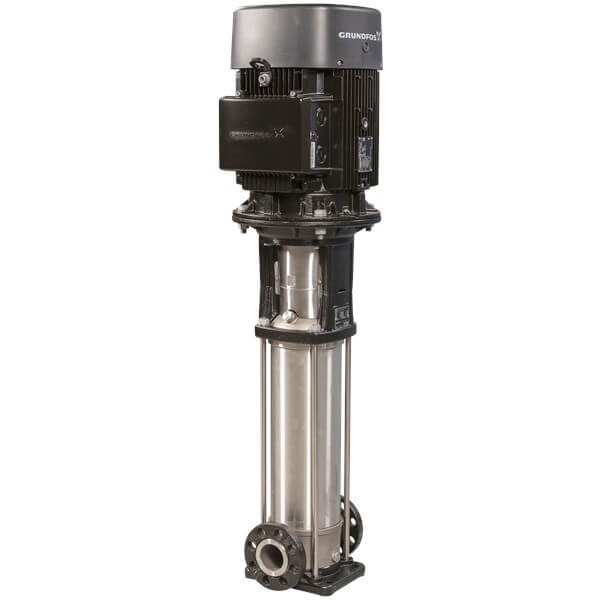

Grundfos CRN 15-10 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96502057 (3 x 380-415D/660-690YD)
by Grundfos
SKU 96502057
Original price
$9,185.00
-
Original price
$9,185.00
Original price
$9,185.00
$9,185.00
-
$9,185.00
Current price
$9,185.00
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CRN 15-10 A-FGJ-A-V-HQQV is a vertical, non-self-priming, multistage in-line centrifugal pump designed for demanding commercial, industrial, and water treatment applications. Built with high-grade stainless steel wetted components (EN 1.4401 / AISI 316), this pump delivers a rated flow of 17 m³/h and a rated head of 113.5 m. It is equipped with a 11 kW IE3 three-phase motor and HQQV single shaft seal, making it ideal for clean water transfer, pressure boosting, heating, cooling, irrigation, and process systems.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis – water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment, fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 15-10 A-FGJ-A-V-HQQV |
| Product Number | 96502057 |
| EAN | 5700396234601 |
| Pump Type | Vertical multistage centrifugal pump |

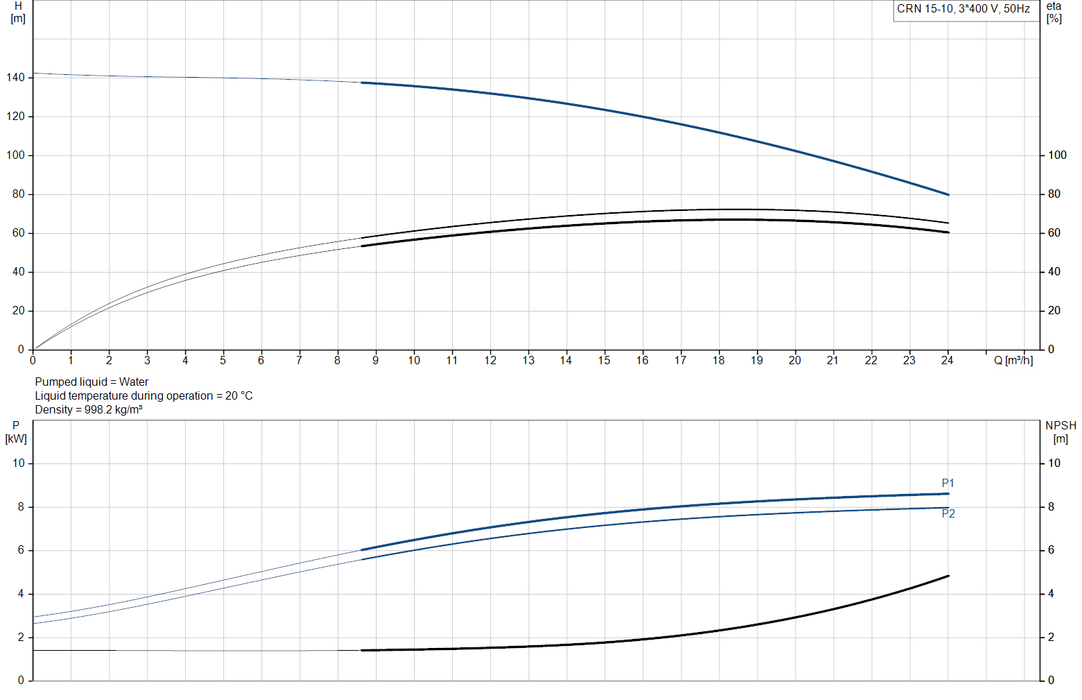

| Rated Flow | 17 m³/h |
| Rated Head | 113.5 m |
| Maximum Head | 141 m |
| Pump Speed | 2924 rpm |
| Stages | 10 |
| Impellers | 10 |
| Reduced-Diameter Impellers | 0 |
| Low NPSH | N |
| Pump Orientation | Vertical |
| Shaft Seal Arrangement | Single |
| Shaft Seal | HQQV |
| Approvals | CE, EAC, UKCA, SEPRO |
| Drinking Water Approvals | WRAS, ACS |
| Curve Tolerance | ISO9906:2012 3B |
| Material Code | A |
| Rubber Components | FKM (V) |
| Base Material | Stainless steel, EN 1.4408 / AISI 316 |
| Impeller Material | Stainless steel, EN 1.4401 / AISI 316 |
| Bearing | SIC |
| Pumped Liquid | Water |
| Liquid Temperature Range | -20 to 90 °C |
| Selected Liquid Temperature | 20 °C |
| Liquid Density | 998.2 kg/m³ |
| Maximum Ambient Temperature | 60 °C |
| Maximum Operating Pressure | 25 bar |
| Max Pressure at Stated Temperature | 25 bar / 90 °C, 25 bar / -20 °C |
| Connection Type | DIN / ANSI / JIS |
| Connection Code | FGJ |
| Inlet Connection | DN 50 (2 inch) |
| Outlet Connection | DN 50 (2 inch) |
| Pressure Rating | PN 25 |
| Flange Rating Inlet | 300 lb |
| Flange Size for Motor | FF300 |

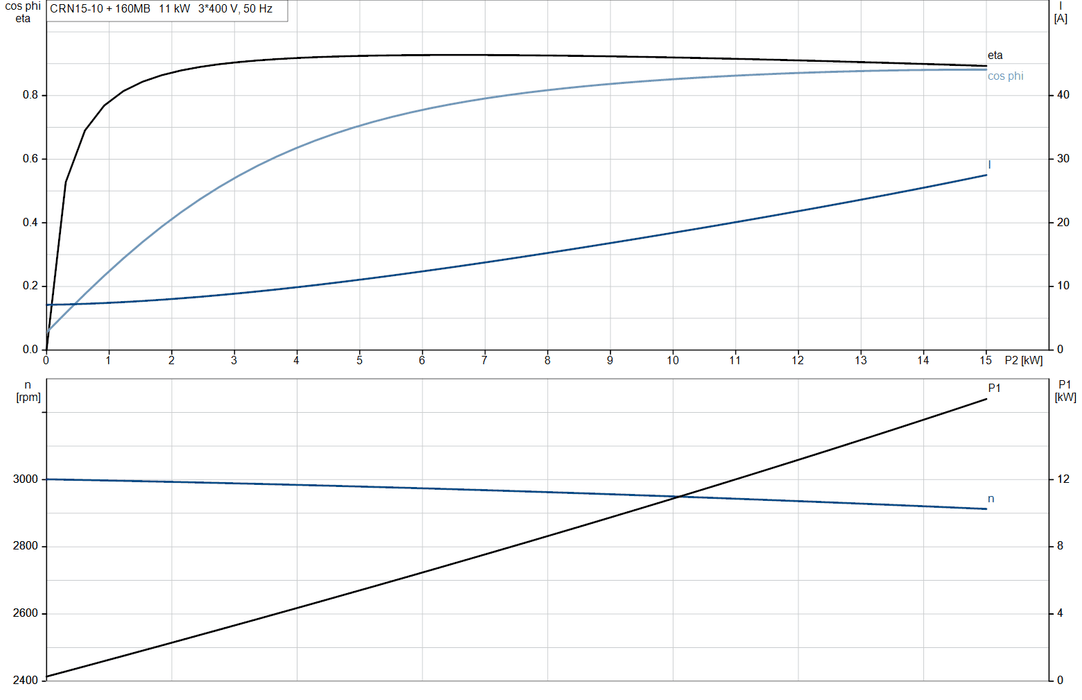

| Motor Standard | IEC |
| Motor Type | 160MB |
| Motor Power (P2) | 11 kW |
| Required Power (P2) | 11 kW |
| Voltage | 3 x 380-415D / 660-690Y V |
| Frequency | 50 Hz |
| Rated Current | 20.8-19.8 / 12.0-11.8 A |
| Starting Current | 660-780 % |
| Power Factor (Cos φ) | 0.88-0.84 |
| Rated Speed | 2940-2950 rpm |
| Motor Efficiency Class | IE3 |
| Motor Efficiency at Full Load | 91.2 % |
| Motor Efficiency at 3/4 Load | 91.8 % |
| Motor Efficiency at 1/2 Load | 91.3-91.2 % |
| Number of Poles | 2 |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Built-in Motor Protection | PTC |
| Motor Number | 85U17524 |
| Terminal Box Position | 6 |
| Frequency Converter | None |
| Minimum Efficiency Index (MEI) | ≥ 0.70 |
| Net Weight | 147 kg |
| Gross Weight | 175 kg |
| Shipping Volume | 0.488 m³ |
| Custom Tariff Number | 84137090621436561 |
