Grundfos CRN 10-4 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 92983567 (1 x 220-230V)
by Grundfos
SKU 92983567
Original price
$3,908.44
-
Original price
$3,908.44
Original price
$3,908.44
$3,908.44
-
$3,908.44
Current price
$3,908.44
📢 For orders over $100, FREE Shipping Australia-wide

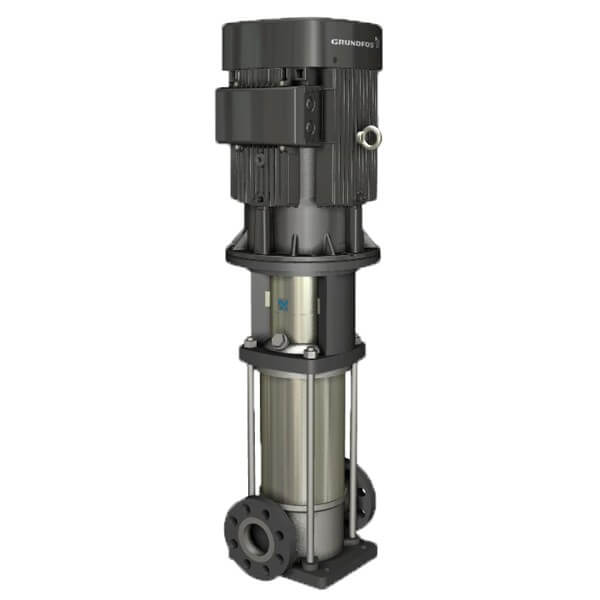

Grundfos CRN 10-4 A-FGJ-A-V-HQQV is a vertical multistage centrifugal inline pump engineered for demanding commercial, industrial, irrigation, solar, and water treatment applications. It features high-grade stainless steel wetted parts (EN 1.4401 / AISI 316), a balanced cartridge shaft seal with SiC/SiC seal faces and FKM elastomers, and combined DIN / ANSI / JIS flange connections. The pump is fitted with a 1.5 kW 1-phase IEC fan-cooled asynchronous motor (IE2 efficiency), providing reliable water transfer and pressure boosting for conditions up to 25 bar.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Industrial cleaning process
- Process liquids transfer
- Industrial heating
- Industrial cooling
- Industrial water supply and transfer
- Industrial wastewater treatment and reuse
- Industrial process water treatment
- Desalination
- Reverse osmosis
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor and spray irrigation
- Ground water transfer
- Livestock and wildlife watering
- Water treatment fertigation, chemigation and dosing
- Pivot and lateral irrigation
- Frost protection
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Municipal solar solutions
- Agriculture solar solutions
- Livestock watering with solar solutions
- Community solar solutions
Key Specifications
| Product Name | CRN 10-4 A-FGJ-A-V-HQQV |
| Product Number | 92983567 |
| Pump Type | Vertical Multistage Centrifugal Pump |
| Speed (Pump Data) | 2767 rpm |
| Stages / Impellers | 4 Stages / 4 Impellers |
| Shaft Seal | HQQV, Balanced cartridge O-ring, Single |
| Liquid Temperature Range | -20 to 90 °C |
| Maximum Operating Pressure | 25 bar |

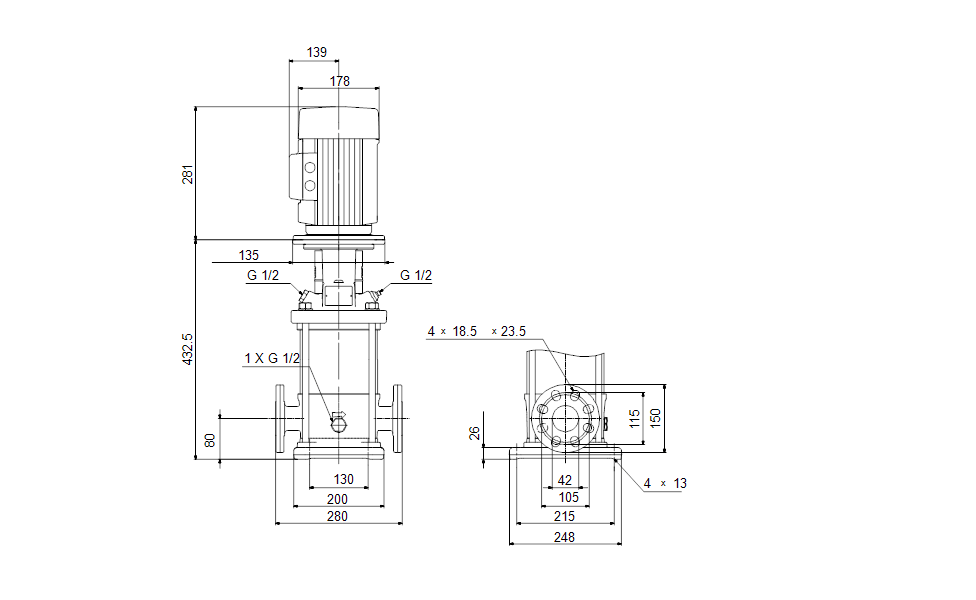

| Connections | DN 40 inlet / DN 40 outlet, DIN / ANSI / JIS, PN 25, 300 lb |
| Base / Head Material | Stainless steel base (EN 1.4408 / AISI 316), cast iron base plate and motor stool |
| Impeller Material | Stainless steel (EN 1.4401 / AISI 316) |
| Bearing | SiC |

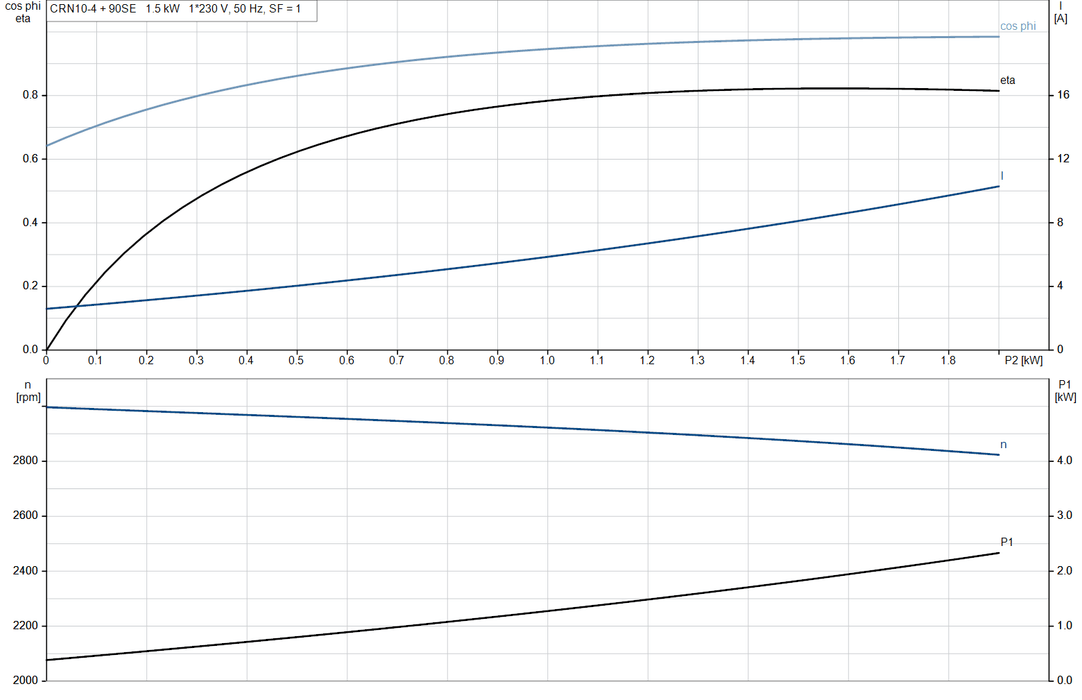

| Motor Power (P2) | 1.5 kW |
| Voltage | 1 x 220-230 V |
| Frequency | 50 Hz |
| Rated Current | 9.1-8.75 A |
| Motor Efficiency Class | IE2 |
| Motor Efficiency (Full Load) | 81.3 % |
| Enclosure / Cooling | Fan-cooled, IC 411 |
| Insulation Class | F |
| Net / Gross Weight | 47 kg / 51 kg |
| Shipping Volume | 0.09 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, Morocco, WEEE |
