Grundfos CRN 10-3 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96501183 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96501183
Original price
$3,234.00
-
Original price
$3,234.00
Original price
$3,234.00
$3,234.00
-
$3,234.00
Current price
$3,234.00
📢 For orders over $100, FREE Shipping Australia-wide
Grundfos CRN 10-3 A-FGJ-A-V-HQQV is a vertical, non-self-priming inline multistage centrifugal pump for commercial, industrial, irrigation, and solar water applications. Featuring stainless steel wetted parts (EN 1.4401 / AISI 316) and base (EN 1.4408), a balanced cartridge shaft seal (HQQV) with SiC/SiC seal faces and FKM elastomers, and combined DIN / ANSI / JIS flange connections, this pump is driven by a 1.1 kW 3-phase IEC motor (80C, IE3 efficiency) for flows up to 10 m³/h and heads up to 30.3 m.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis / Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment, fertigation, and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 10-3 A-FGJ-A-V-HQQV |
| Product Number | 96501183 |
| EAN | 5700396217017 |
| Pump Type | Vertical Multistage Centrifugal Pump |

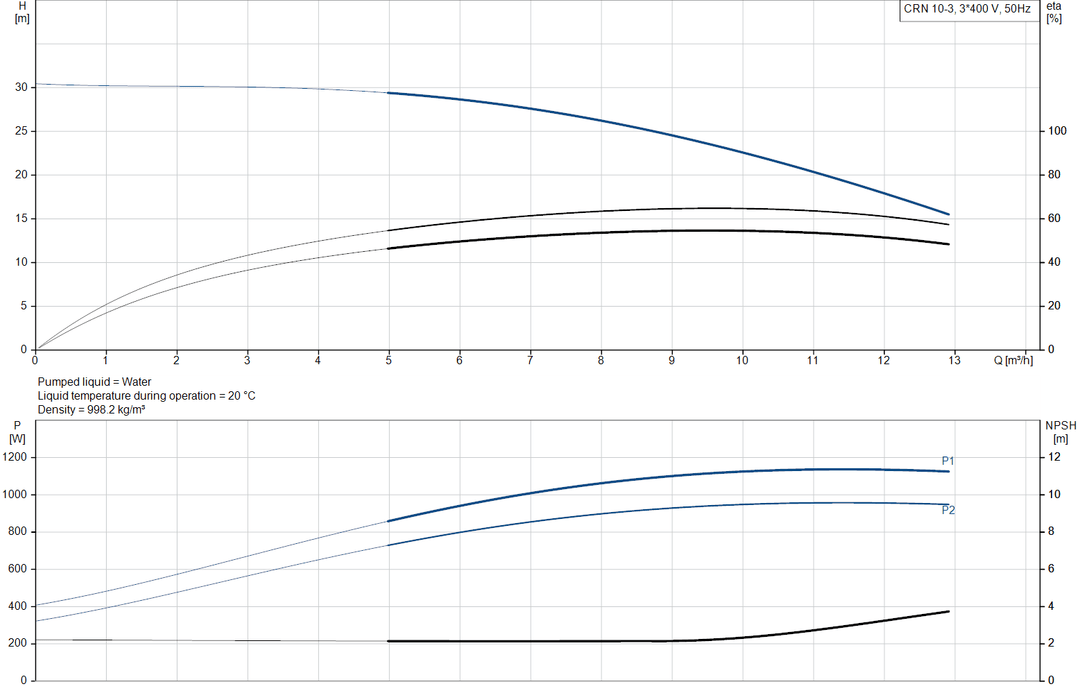

| Rated Flow | 10 m³/h |
| Rated Head | 23.1 m |
| Maximum Head | 30.3 m |
| Stages / Impellers | 3 Stages / 3 Impellers |
| Shaft Seal | HQQV, Single, Balanced cartridge O-ring |
| Liquid Temperature Range | -20 to 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 40 inlet / DN 40 outlet, DIN / ANSI / JIS, PN 25, 300 lb |
| Base / Head Material | Stainless steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless steel (EN 1.4401 / AISI 316) |
| Bearing | SiC |

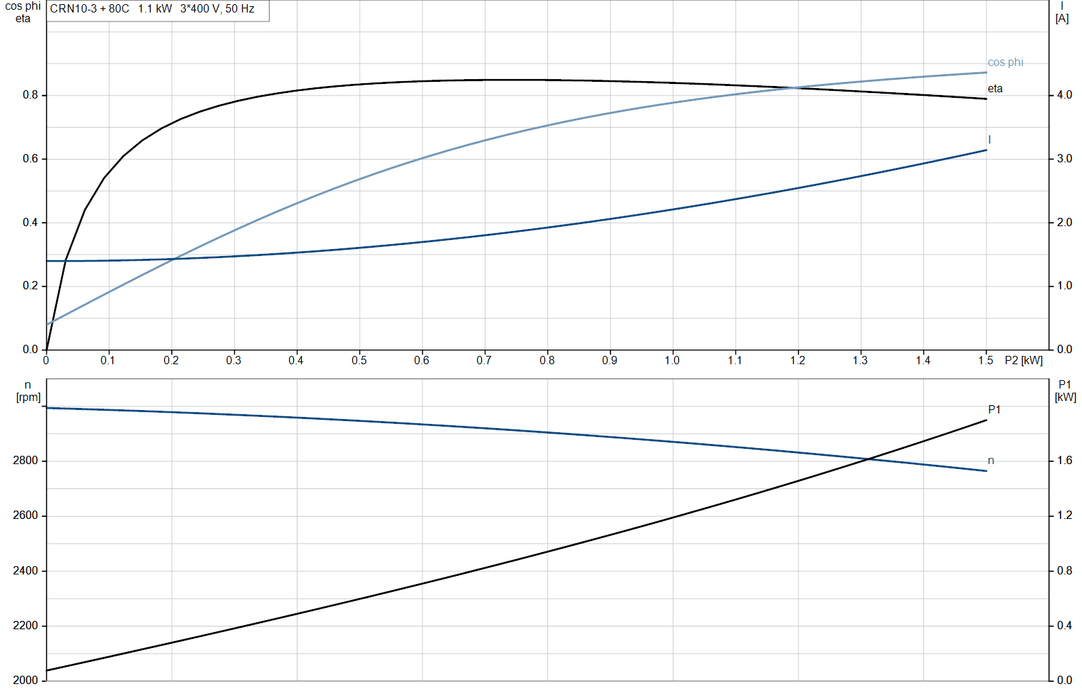

| Motor Power (P2) | 1.1 kW |
| Voltage | 3 x 220-240D / 380-415Y V |
| Frequency | 50 Hz |
| Rated Current | 4.35 / 2.50 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 82.7 % |
| Enclosure Class | IP55 Dust/Jetting |
| Insulation Class | F |
| Net / Gross Weight | 38 kg / 41 kg |
| Shipping Volume | 0.094 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| Grundfos Configured Product PDF | Download |
