Grundfos CRN 10-2 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 92983559 (1 x 220-230V)
by Grundfos
SKU 92983559
Original price
$3,060.06
-
Original price
$3,060.06
Original price
$3,060.06
$3,060.06
-
$3,060.06
Current price
$3,060.06
📢 For orders over $100, FREE Shipping Australia-wide

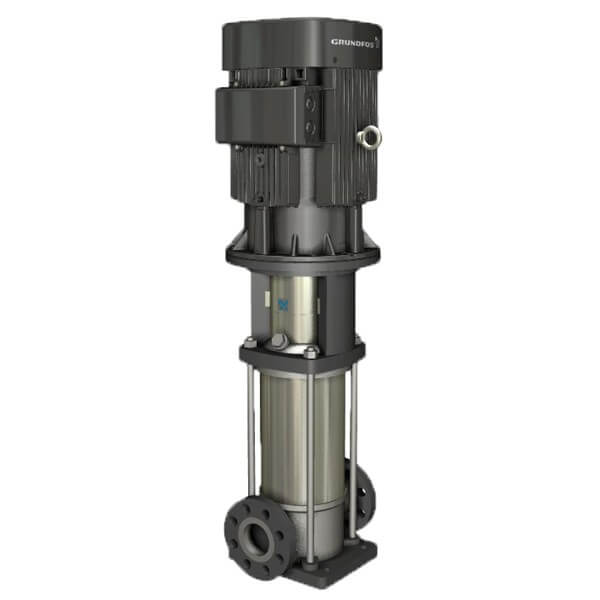

Grundfos CRN 10-2 A-FGJ-A-V-HQQV is a vertical multistage centrifugal inline pump engineered for commercial, industrial, irrigation, solar, and water treatment applications. It features high-grade stainless steel wetted parts (EN 1.4401 / AISI 316), a balanced cartridge shaft seal with SiC/SiC seal faces and FKM elastomers, and combined DIN / ANSI / JIS flange connections. This configured unit is equipped with a 0.75 kW 1-phase IEC fan-cooled asynchronous motor with IE2 efficiency, offering reliable clean water transfer and pressure boosting performance in demanding operating conditions up to 25 bar.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Industrial cleaning process
- Process liquids transfer
- Industrial heating
- Industrial cooling
- Industrial water supply and transfer
- Industrial wastewater treatment and reuse
- Industrial process water treatment
- Desalination
- Reverse osmosis
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor and spray irrigation
- Ground water transfer
- Livestock and wildlife watering
- Water treatment fertigation, chemigation and dosing
- Pivot and lateral irrigation
- Frost protection
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment fertigation and dosing
- Municipal solar solutions
- Agriculture solar solutions
- Livestock watering with solar solutions
- Community solar solutions
Key Specifications
| Product Name | CRN 10-2 A-FGJ-A-V-HQQV |
| Product Number | 92983559 |
| Pump Type | Vertical Multistage Centrifugal Pump |
| Speed (Pump Data) | 2759 rpm |
| Stages / Impellers | 2 Stages / 2 Impellers |
| Shaft Seal | HQQV, Balanced cartridge O-ring, Single |
| Liquid Temperature Range | -20 to 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 40 inlet / DN 40 outlet, DIN / ANSI / JIS, PN 25, 300 lb |
| Base / Head Material | Stainless steel base (EN 1.4408 / AISI 316), cast iron base plate and motor stool |
| Impeller Material | Stainless steel (EN 1.4401 / AISI 316) |
| Bearing | SiC |

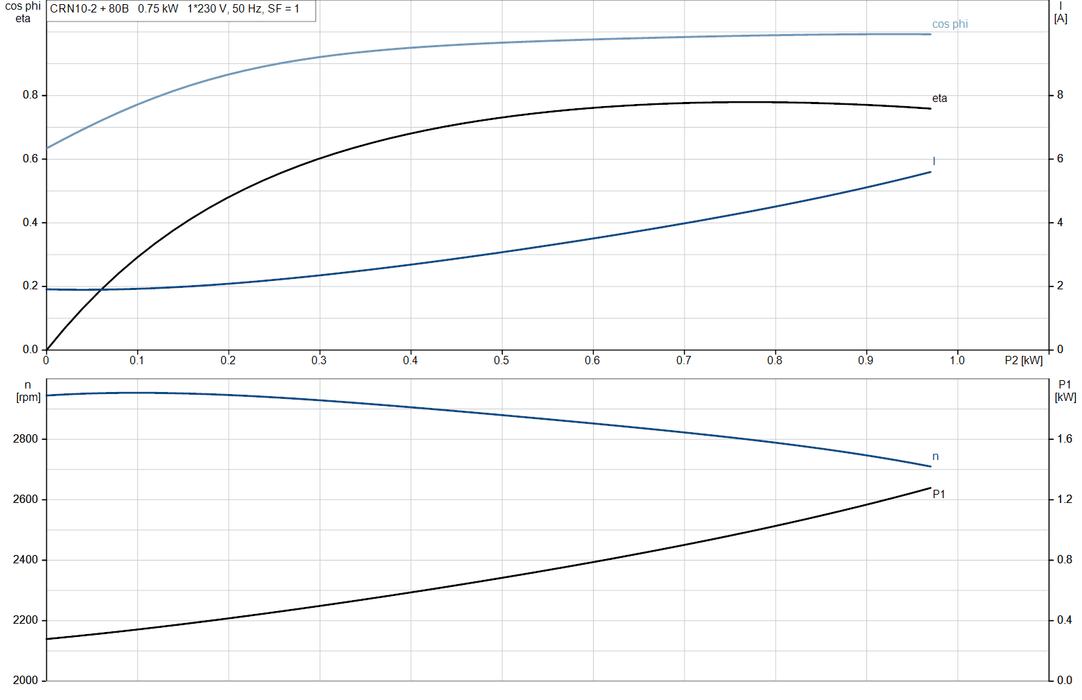

| Motor Power (P2) | 0.75 kW |
| Voltage | 1 x 220-230 V |
| Frequency | 50 Hz |
| Rated Current | 4.75-4.60 A |
| Motor Efficiency Class | IE2 |
| Motor Efficiency (Full Load) | 77.4 % |
| Enclosure / Cooling | Fan-cooled, IC 411 |
| Insulation Class | F |
| Net / Gross Weight | 35 kg / 39 kg |
| Shipping Volume | 0.08 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, Morocco, WEEE |
Documentation & Downloads
| Grundfos Configured Product PDF | Download |
