Grundfos CRN 10-18 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96501399 (3 x 380-415D/660-690YD)
by Grundfos
SKU 96501399
Original price
$7,625.75
-
Original price
$7,625.75
Original price
$7,625.75
$7,625.75
-
$7,625.75
Current price
$7,625.75
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CRN 10-18 A-FGJ-A-V-HQQV is a vertical, non-self-priming, inline multistage centrifugal pump designed for commercial, industrial, irrigation, and solar water applications. Wetted parts are constructed from high-grade stainless steel (EN 1.4401 / AISI 316), with the base and pump head in stainless steel (EN 1.4408). The pump features a single HQQV balanced cartridge shaft seal, DN 40 inlet/outlet connections, and a 7.5 kW IEC 132SB motor (IE3 efficiency), delivering 10 m³/h at a head up to 185 m.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis / Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment, fertigation, and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 10-18 A-FGJ-A-V-HQQV |
| Product Number | 96501399 |
| EAN | 5700396221434 |
| Pump Type | Vertical Multistage Centrifugal Pump |

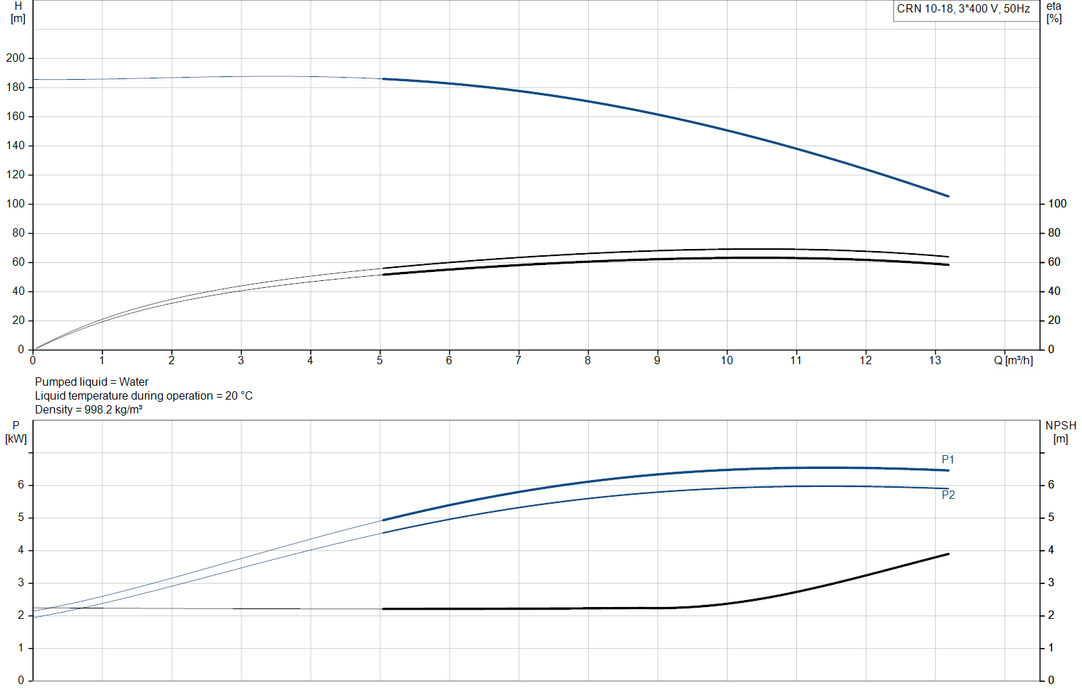

| Rated Flow | 10 m³/h |
| Rated Head | 149.4 m |
| Maximum Head | 185 m |
| Stages / Impellers | 18 Stages / 18 Impellers |
| Shaft Seal | HQQV, Single, Balanced cartridge |
| Liquid Temperature Range | -20 to 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | DN 40 inlet / DN 40 outlet, DIN / ANSI / JIS, PN 25, 300 lb |
| Base / Head Material | Stainless steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless steel (EN 1.4401 / AISI 316) |
| Bearing | SiC |

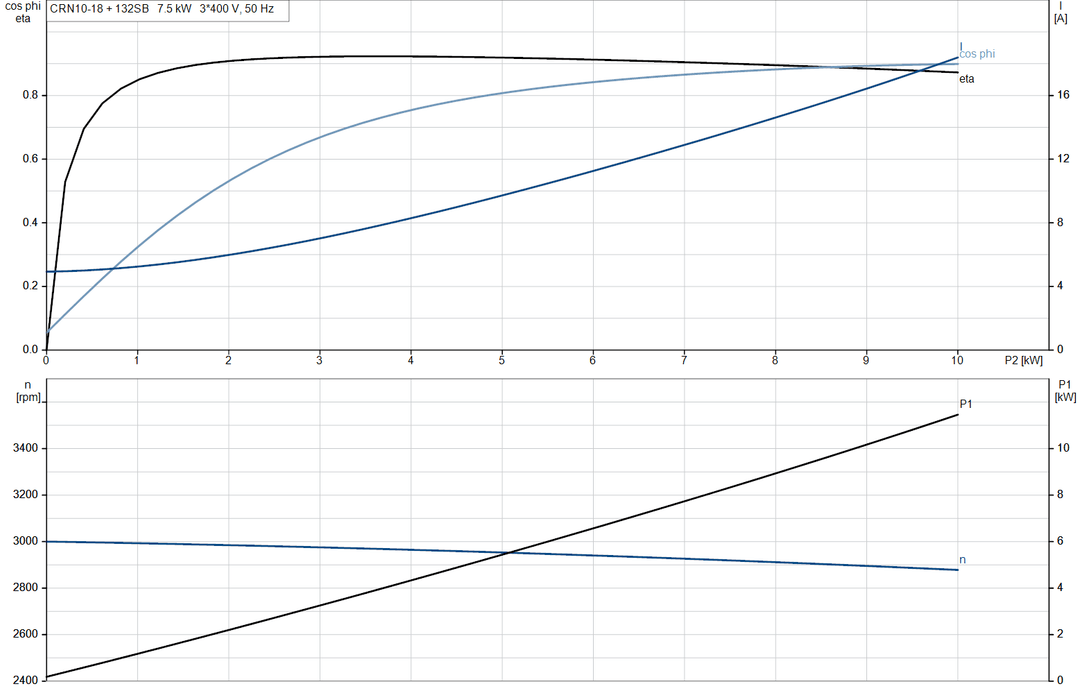

| Motor Power (P2) | 7.5 kW |
| Voltage | 3 x 380-415D / 660-690Y V |
| Frequency | 50 Hz |
| Rated Current | 14.4-14.0 / 8.3-8.1 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 90.1-90.4 % |
| Enclosure Class | IP55 Dust/Jetting |
| Insulation Class | F |
| Net / Gross Weight | 108 kg / 130 kg |
| Shipping Volume | 0.321 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, WRAS, ACS |
Documentation & Downloads
| Grundfos Configured Product PDF | Download |
