Grundfos CRI 1-15 A-CA-A-E-HQQE Vertical Multistage Centrifugal Pump – 96516328 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516328
Original price
$1,502.19
-
Original price
$1,502.19
Original price
$1,502.19
$1,502.19
-
$1,502.19
Current price
$1,502.19
📢 For orders over $100, FREE Shipping Australia-wide
The Grundfos CRI 1-15 A-CA-A-E-HQQE is a vertical, non-self-priming multistage in-line centrifugal pump engineered for pipe system installation or foundation mounting. Key components in contact with liquid—impellers, intermediate chambers, and outer sleeves—are made of stainless steel (EN 1.4301), with the pump head cover and base in stainless steel (EN 1.4408 / AISI 316). It features a single HQQE shaft seal, FlexiClamp connections, and a cast iron split coupling for power transmission. The pump is driven by a 3-phase IE3 motor, suitable for commercial, industrial, irrigation, and solar water applications.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean systems
- Process liquids transfer
- Industrial heating and cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reverse osmosis water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor and spray irrigation
- Groundwater transfer
- Pivot irrigation
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment, fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Number | 96516328 |
| EAN | 5700396741017 |
| Pump Type | Vertical multistage centrifugal |
| Pump Orientation | Vertical |

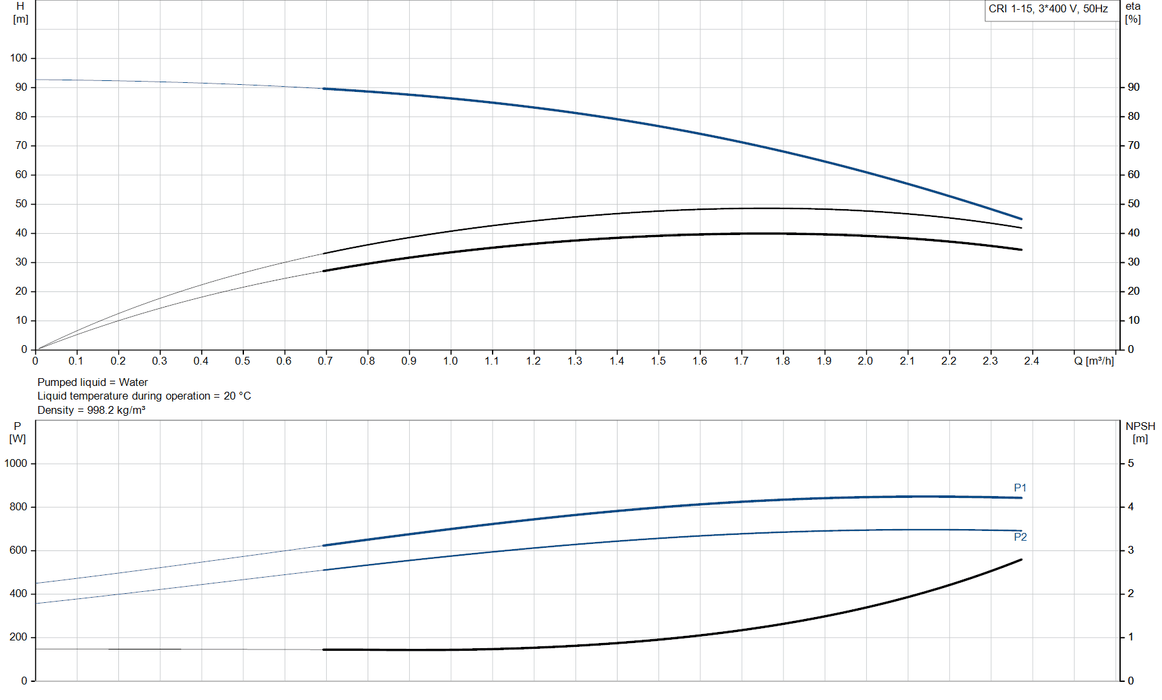

| Rated Flow | 1.8 m³/h |
| Rated Head | 69.6 m |
| Maximum Head | 92.6 m |
| Pump Speed | 2864 rpm |
| Stages | 15 |
| Impellers | 15 |
| Shaft Seal | HQQE (Single) |
| Approvals | CE, EAC, UKCA, SEPRO, RCM |
| Drinking Water Approvals | WRAS, ACS |
| Curve Tolerance | ISO 9906:2012 3B |
| Base Material | Stainless Steel (EN 1.4408 / AISI 316) |
| Impeller Material | Stainless Steel (EN 1.4301 / AISI 304) |
| Bearing | Silicon Carbide (SiC) |
| Rubber Components | EPDM |
| Maximum Operating Pressure | 25 bar |
| Maximum Ambient Temperature | 60 °C |
| Liquid Temperature Range | -20 to 120 °C |
| Pumped Liquid | Water |
| Liquid Density | 998.2 kg/m³ |
| Connection Type | FlexiClamp |
| Inlet Connection | DN 32 (1 1/4 inch) |
| Outlet Connection | DN 32 (1 1/4 inch) |
| Connection Pressure Rating | PN 25 |

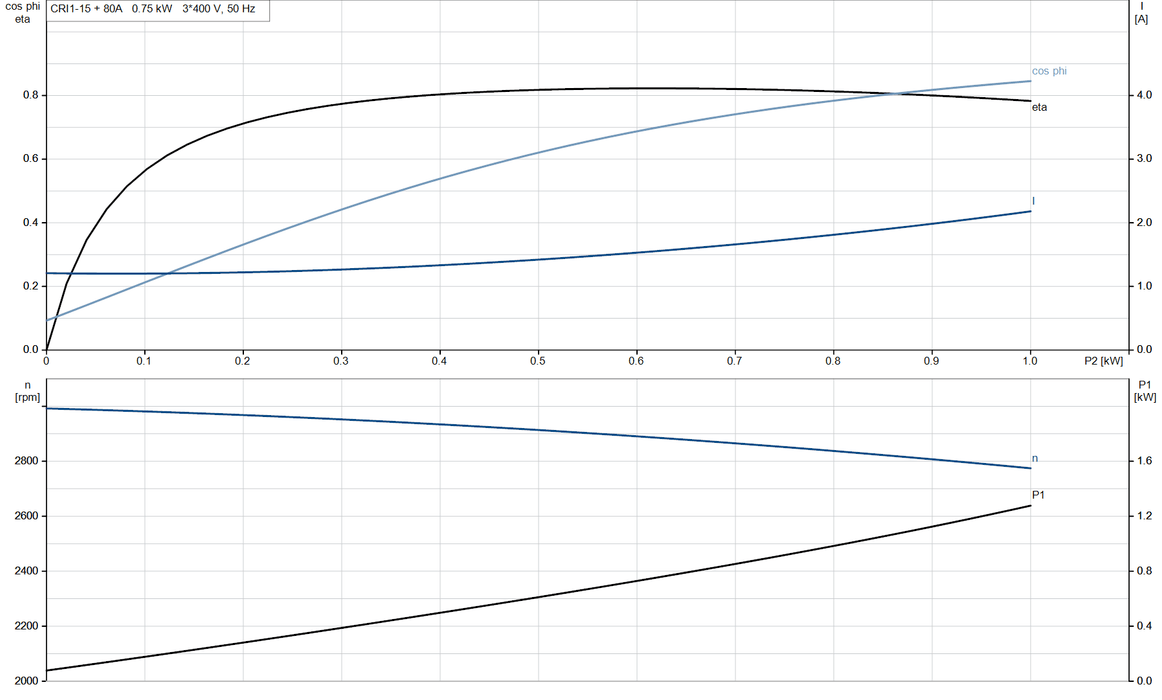

| Motor Standard | IEC |
| Motor Type | 80A |
| Rated Power (P2) | 0.75 kW |
| Mains Frequency | 50 Hz |
| Rated Voltage | 3 × 220-240D / 380-415Y V |
| Rated Current | 3.30 / 1.90 A |
| Starting Current | 580-620 % |
| Power Factor (cos φ) | 0.81-0.71 |
| Rated Speed | 2840-2870 rpm |
| IE Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 80.7 % |
| Enclosure Class | IP55 |
| Insulation Class | F |
| Number of Poles | 2 |
| Minimum Efficiency Index (MEI) | ≥ 0.70 |
| Net Weight | 24.5 kg |
| Gross Weight | 27.4 kg |
| Shipping Volume | 0.074 m³ |
| Danish VVS No. | 386041015 |
| Custom Tariff No. | 84137090621436561 |
