Grundfos CR 3-2 A-FGJ-A-E-HQQE Vertical Multistage Centrifugal Pump – 92901531 (1 x 220-230V)
by Grundfos
SKU 92901531
Original price
$1,001.00
-
Original price
$1,001.00
Original price
$1,001.00
$1,001.00
-
$1,001.00
Current price
$1,001.00
📢 For orders over $100, FREE Shipping Australia-wide

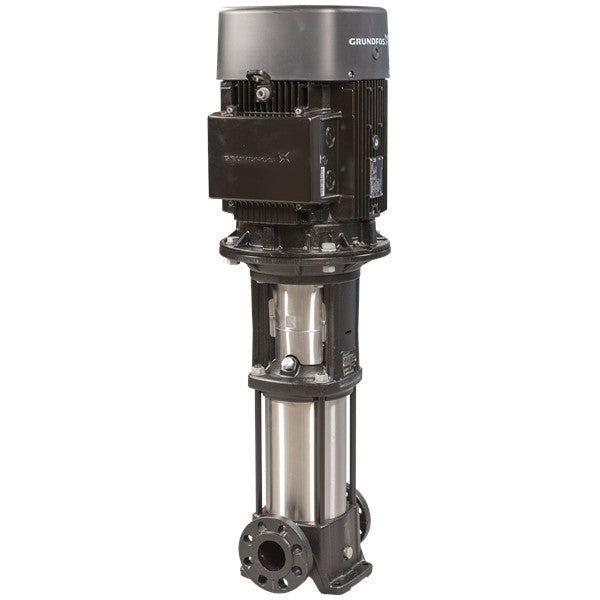

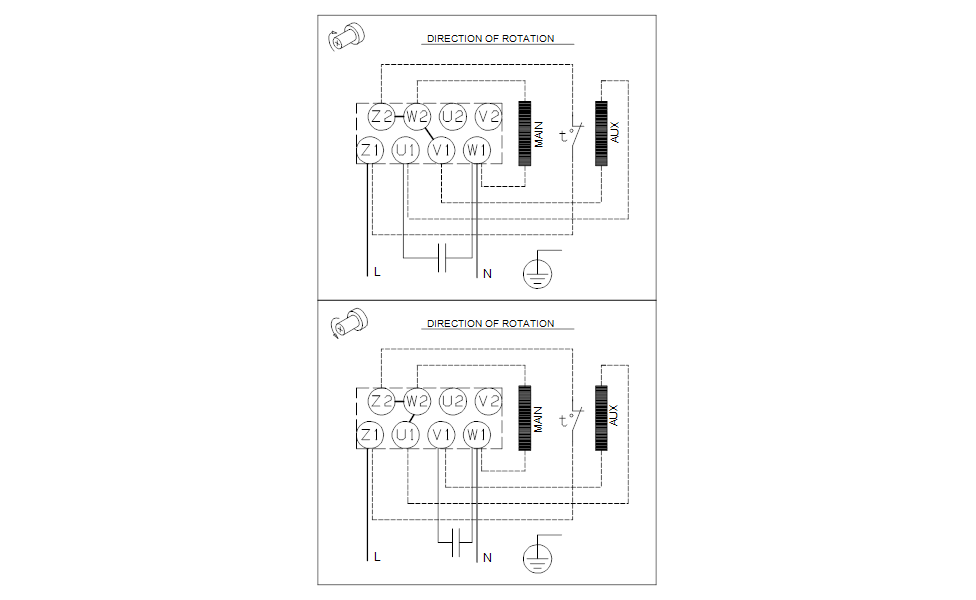

The Grundfos CR 3-2 A-FGJ-A-E-HQQE is a vertical, multistage centrifugal pump with inline suction and discharge ports. The pump head and base are manufactured from cast iron, while all other wetted components are made of stainless steel (EN 1.4301). A cartridge shaft seal ensures high reliability, safe handling, and easy service access. The pump is equipped with a single-phase, fan-cooled asynchronous motor and supports combined DIN, ANSI, and JIS flange connections.
Key Features & Applications
- Vertical multistage centrifugal inline pump design
- Cast iron pump head and base with stainless steel wetted parts
- Cartridge shaft seal (HQQE) for reliability and easy maintenance
- DIN / ANSI / JIS combined flange connections
- Suitable for commercial, industrial, agricultural, and solar water systems

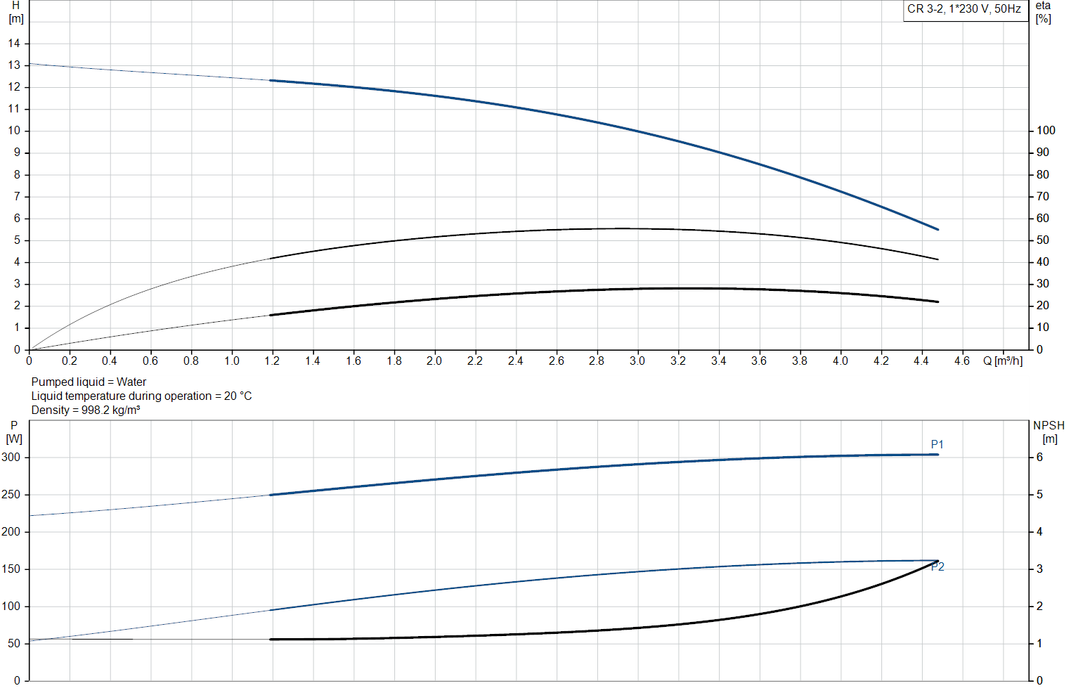

Technical Specifications
| Product Number | 92901531 |
| Rated Flow | 3 m³/h |
| Rated Head | 9.2 m |
| Maximum Head | 13.2 m |

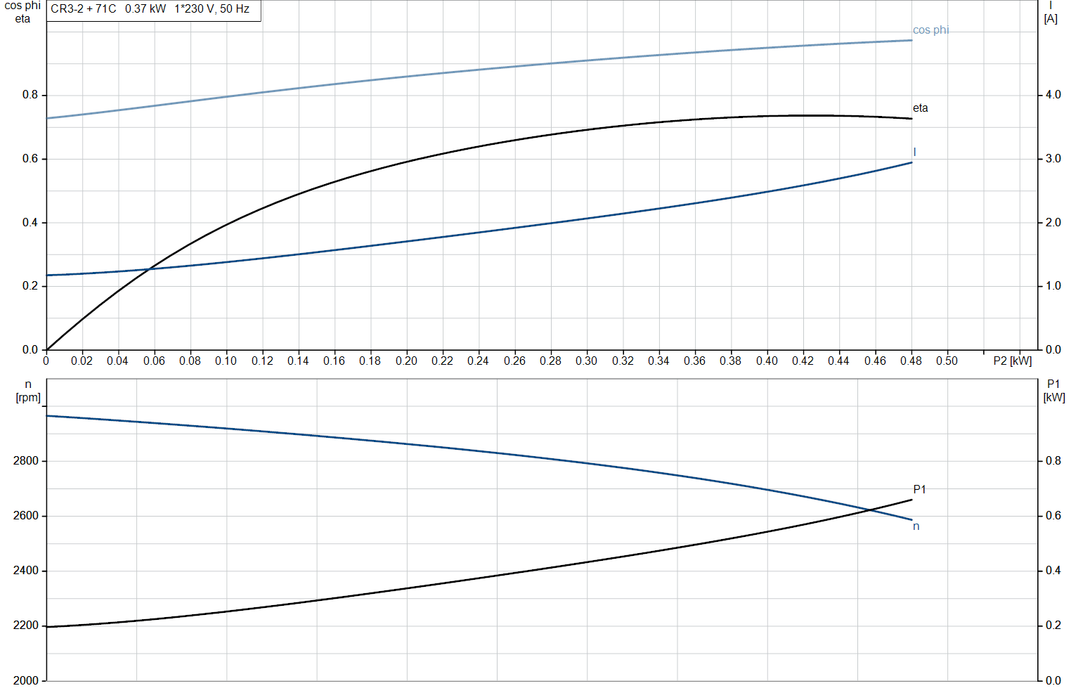

| Motor Power | 0.37 kW, 1 × 220–230 V, 50 Hz |
| Maximum Operating Pressure | 25 bar |
| Liquid Temperature Range | -20 °C to 120 °C |
| Approvals | CE, EAC, UKCA, RCM, WRAS, ACS |
Documentation & Downloads
| Document Type | Download |
|---|---|
| Grundfos Product Datasheet | 📄 Download PDF |
