Grundfos CRN 1-36 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump – 96516441 (3 x 220-240D/380-415YV)
by Grundfos
SKU 96516441
Original price
$4,889.50
-
Original price
$4,889.50
Original price
$4,889.50
$4,889.50
-
$4,889.50
Current price
$4,889.50
📢 For orders over $100, FREE Shipping Australia-wide
Vertical, non-self-priming multistage centrifugal pump in stainless steel (EN 1.4401 / EN 1.4408) with suction and discharge ports on the same level. Rated flow of 1.8 m³/h and maximum head of 224.5 m. Single HQQV shaft seal. Connections via DIN / ANSI / JIS flanges (DN 25/32 – 1 1/4 inch, PN 25 / 300 lb, Flange size FT115). Powered by a 3-phase IEC 90LE motor, 2.2 kW, IE3 efficiency, IP55 enclosure.
Suitable Applications
- Commercial heating
- Commercial air conditioning
- Commercial water pressure boosting
- District heating
- District cooling
- Machining
- Wash and clean
- Process liquids transfer
- Industrial heating
- Cooling
- Industrial water supply
- Industrial wastewater
- Industrial process water treatment
- Desalination
- Reversed Osmosis - Water treatment
- Surface water intake
- Drinking water treatment
- Water distribution
- Irrigation
- Solar water solutions
- Community water supply
- Rotor & spray irrigation
- Ground water transfer
- Pivot
- Solar boosting and water supply solutions
- Controls and digital groundwater management
- Solar controls and digital water management
- Solar water treatment, fertigation and dosing
- Agriculture solar solutions
- Livestock watering with solar solutions
Key Specifications
| Product Name | CRN 1-36 A-FGJ-A-V-HQQV |
| Product Number | 96516441 |
| EAN | 5700396743295 |
| Pump Type | Vertical Multistage Centrifugal |

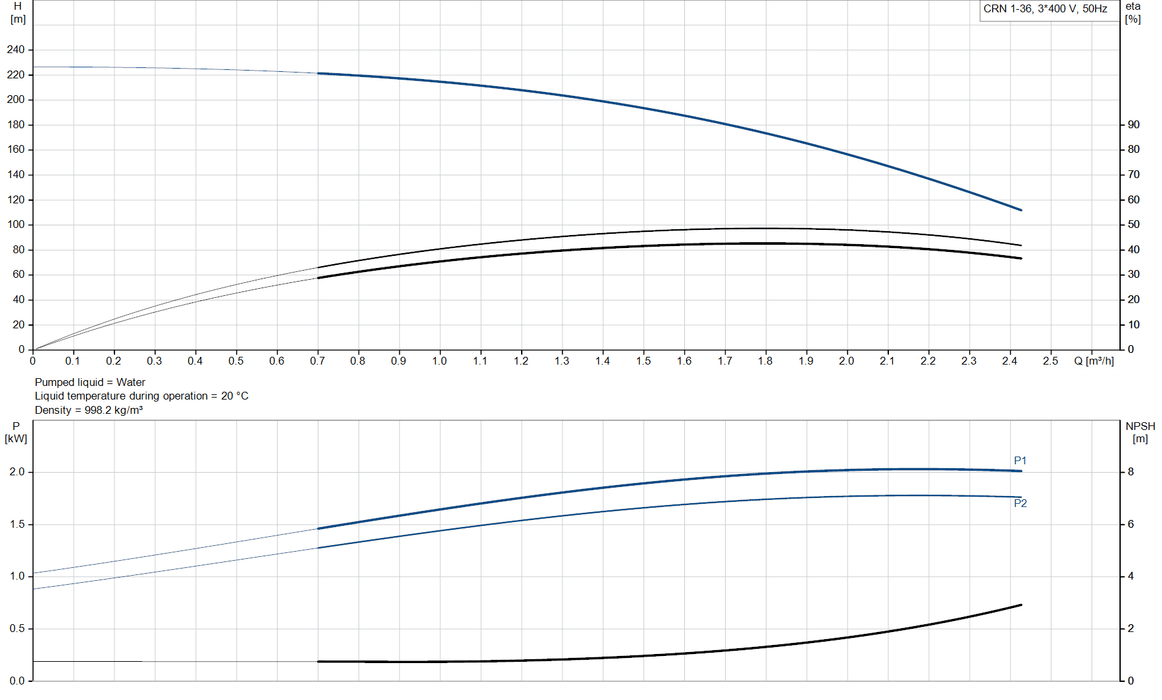

| Rated Flow | 1.8 m³/h |
| Rated Head | 172.2 m |
| Maximum Head | 224.5 m |
| Speed (Pump Data) | 2899 rpm |
| Stages / Impellers | 36 |
| Reduced-Diameter Impellers | 0 |
| Shaft Seal | HQQV, Single |
| Liquid Temperature Range | -20 .. 90 °C |
| Maximum Operating Pressure | 25 bar |
| Connections | Inlet/Outlet DN 25/32 (1 1/4 inch), DIN / ANSI / JIS flanges, PN 25 / 300 lb, Flange size FT115 |
| Base / Head Material | Stainless steel EN 1.4408 / AISI 316 |
| Impeller Material | Stainless steel EN 1.4401 / AISI 316 |
| Bearing | SIC |
| Motor Power (P2) | 2.2 kW |
| Voltage | 3 x 220-240D / 380-415Y V |
| Frequency | 50 Hz |
| Rated Current | 8.00 / 4.60 A |
| Motor Efficiency Class | IE3 |
| Motor Efficiency (Full Load) | 85.9 % |
| Enclosure Class | IP55 Dust/Jetting |
| Insulation Class | F |
| MEI | 0.70 |
| Net / Gross Weight | 48.7 / 53.4 kg |
| Shipping Volume | 0.148 m³ |
| Approvals | CE, EAC, UKCA, SEPRO, RCM, WRAS, ACS |
Documentation & Downloads
| CRN 1-36 A-FGJ-A-V-HQQV Datasheet | Download |
