Helix Hydro Semi-Automatic Brush Filter Series 500 – HIF5-100 – 100mm – 8 Bar – 20-70 m³/hr – Inline – Flanged Table D
by Helix Hydro
SKU HIF5-100
Original price
$3,130.88
-
Original price
$3,130.88
Original price
$3,130.88
$3,130.88
-
$3,130.88
Current price
$3,130.88
📢 For orders over $100, FREE Shipping Australia-wide

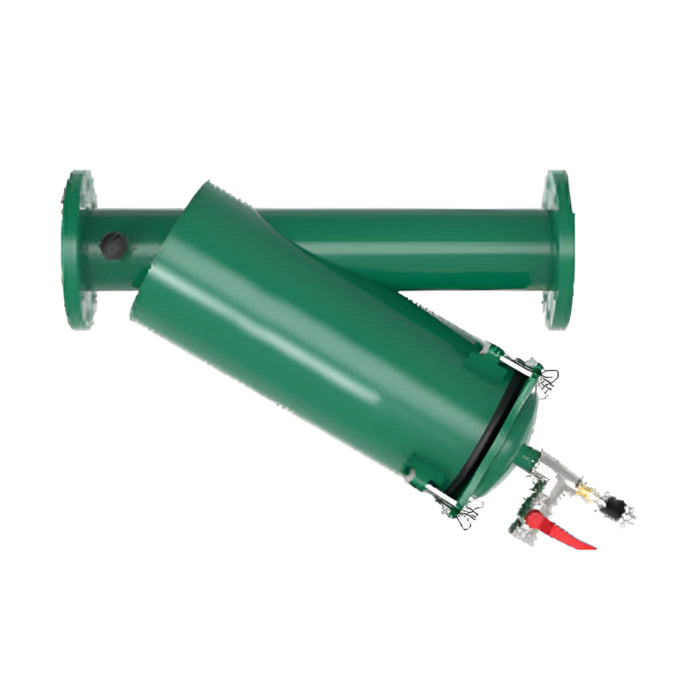

The Helix Hydro Semi-Automatic Brush Filter features a semi-automatic brush cleaning mechanism and an inline configuration. The body is constructed from epoxy coated mild steel for durability in demanding conditions. This filter operates at a pressure rating of 8 Bar with a nominal flow rate range of 20-70 m³/hr. It is supplied with a flushing valve and features 100 mm flanged Table D connections.
Suitable Applications
- Agricultural irrigation systems
- Industrial water filtration
- Raw water intake protection
- Commercial water treatment
Key Specifications
| Product Name | Semi-Automatic Brush Filter – Series 500 |
| Product Number | HIF5-100 |
| Product Type | Semi-Automatic Brush Filter |
| Configuration | Inline |
| Size | 100 mm |
| Connection Type | Flanged Table D |
| Pressure Rating | 8 Bar |
| Nominal Flow Rate Range | 20 – 70 m³/hr |
| Body Material | Epoxy Coated Mild Steel |
| Cleaning Mechanism | Semi-Automatic Brush |
| Included Components | Flushing valve |
